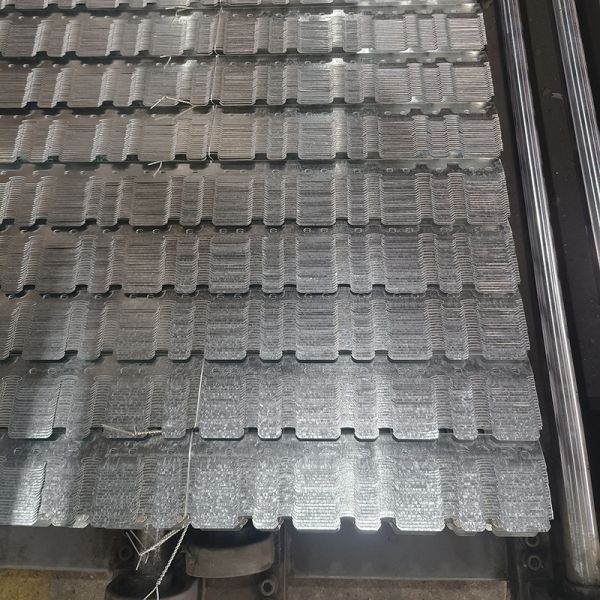

Drywall Galvanized Metal Stud and Track Wall Framing Resilient Channel Stud Strack for Drywall

Product Description:

Galvanized light steel keel is a new type of building material widely used in modern construction and decoration engineering, mainly used for the support system of suspended ceilings, partition walls, and floor structures. It is known for its lightweight, high strength, and corrosion resistance, making it an ideal alternative to traditional wooden keels and other heavy building materials.

Galvanized light steel keel is a type of building component made of cold-rolled galvanized steel sheet as raw material and formed through cold bending processing. The thickness of the galvanized layer is generally between 60g/m ² and 275g/m ², used to protect the steel plate from oxidation and corrosion. The keel is divided into C-shaped, U-shaped, T-shaped, etc. according to the cross-sectional shape, with various specifications to meet different building needs.

Features:

Lightweight and High Strength: With a self weight of only about 3-4 kg/m ², it is much lower than traditional brick walls or wooden structures, but has high strength and can withstand high loads (such as a single point hanging force of over 1000N)

Excellent fire resistance: The steel itself is resistant to high temperatures, and when combined with fire-resistant gypsum board or mineral wool board, the fire resistance limit can reach 1.0-1.6 hours, meeting the requirements of building fire protection regulations

Convenient and efficient construction: using prefabricated technology, dry operation as the main method, short construction period, no wet operation, reducing construction waste, suitable for rapid decoration or renovation

Environmental protection and energy conservation: materials can be 100% recycled, supporting board recycling rate is high, construction process pollution is small, in line with green building and "dual carbon" policy orientation

Excellent sound insulation performance: Fill the cavity of the keel with rock wool or glass wool, and the sound insulation of the 180mm thick partition wall can reach 45dB

Technical Parameters:

FAQ:
