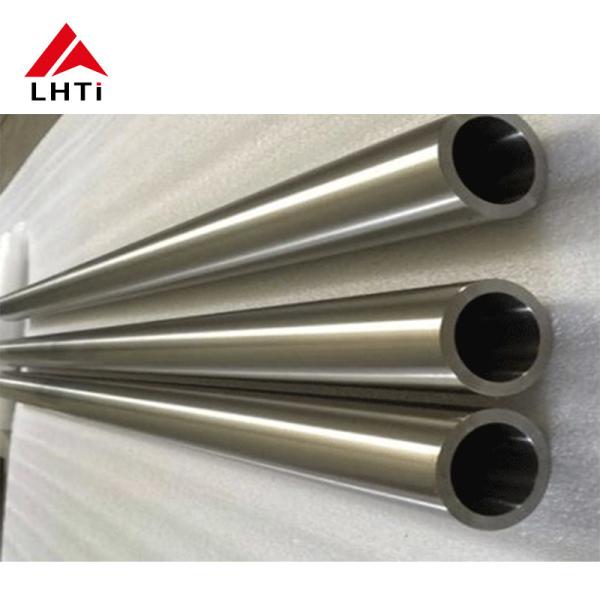

10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
If in stock, sample is available; If not in stock,100kgs of each size
Price :
US dollar $23.5/kg--US dollar $35.9./kg
Supply Ability :
5 tons per month
Delivery Time :
3-5 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Packing :
Standard Exported Wooden Cases
Meltingpoint :
1660℃
Wall Thickness :
Customizable
Corrosion Resistance :
High
Surface Treatment :
Polished
Type :
Seamless
Situation :
Annealed
Hs Code :
8108904090
Original :
China
Outer Diameter :
9.52/12.7/15.9/19.1/25.4/32/33.4/38.1mm
Heat Capacity :
3kw~500kw or more
Specific Use :
Heating and cooling
Diameter :
Customizable
Application :
Aerospace, Chemical Processing, Medical, Marine, Oil and Gas
Weldability :
Good
Description

10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube

Product Features

  1. High Strength
    Titanium tubes exhibit impressive strength, with tensile strength ranging from 686 to 1176 MPa. Despite having a density about 60% that of steel, they offer a remarkably high specific strength.

  2. High Hardness
    Titanium alloy seamless tubes possess notable hardness, with an HRC rating of 32-38 in the annealed state.

  3. Low Elastic Modulus
    The elastic modulus of annealed titanium alloy seamless tubes ranges from 1.078 × 10^4 to 1.176 × 10^4 MPa, approximately half that of steel and stainless steel.

Standards: ASTM B338, ASTM B861

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

10mm Titanium Tube with Superior Corrosion Resistance – Ideal for Diverse Applications / grade 5 titanium tube

Ideal for Diverse Applications / grade 5 titanium tube.
