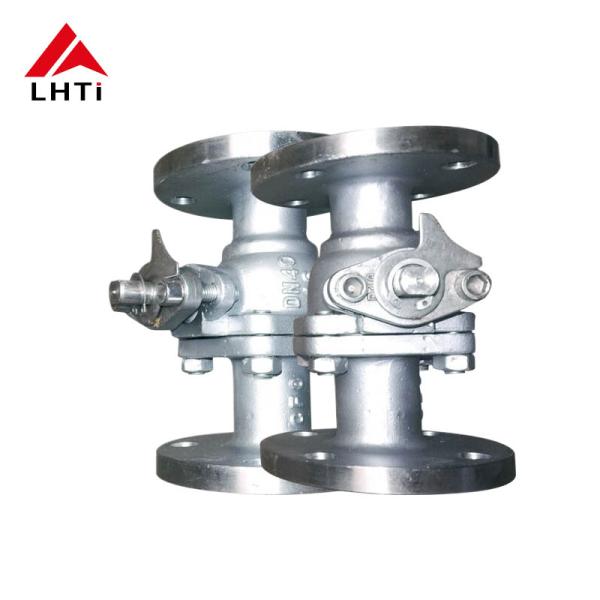

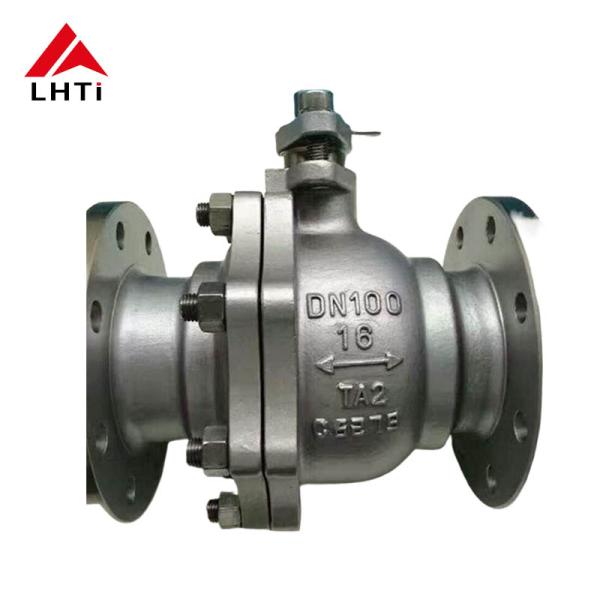

Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Specifications
Brand Name :
LHTi
Model Number :
Titanium Ball Valves ASME B16.34
Certification :
ISO9001,CE,etc
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000 Pieces Per Month
Delivery Time :
about 7-14 days for delivery
Packaging Details :
Plywood case or pallet, or as per your requirement
Pressure Rating :
Class 150 - Class 600
Material :
Titanium Alloy
Operation Method :
Lever, Gear, Actuator
Size :
1/2
End Connections :
Flanged, Butt Weld, Socket Weld, Threaded
Actuator Type :
Manual, Pneumatic, Electric
Temperature Rating :
-196°C - 600°C
Seat Material :
PTFE, RPTFE, PEEK, PCTFE, Nylon, Metal
Description
Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Gr 2 ASME B16.34 Titanium Ball Valve
Flange forged titanium ball corrosion resistant 6 inch ball valve designed for demanding industrial applications.
Product Overview
Titanium ball valves are precision devices used for diverting, mixing, or switching flow direction in corrosive environments. The top-mounted structure design reduces connecting bolts in high-pressure, large-diameter applications, enhancing valve reliability and overcoming system weight impacts on normal operation.
Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve Gr 2 ASME B16.34 Titanium Ball Valve Flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Key Features
  • Floating Ball Design: Under medium pressure, the ball displaces to press tightly against the outlet sealing surface, ensuring reliable sealing
  • Excellent Corrosion Resistance: Utilizes titanium's stable oxide film and self-passivation capability to withstand harsh corrosive environments
  • Low Flow Resistance: Minimal fluid resistance even in reduced bore configurations
  • Superior Sealing Performance: PTFE sealing rings provide excellent sealing that improves with medium pressure
  • Reliable Stem Sealing: 90° rotation operation prevents packing seal damage with pressure-enhanced reverse sealing
Technical Specifications
Pressure Rating Class 150-600Lb
Nominal Diameter 1/2" - 10"
Drive Mode Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials TA1, TA2, TA10, Gr2, Gr3
Ball Materials TA1, TA2, TA10, Gr2, Gr3
Stem Materials TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials PTFE, RPTFE, PPL, PEEK
American Standard Models Q41F-150Lb(Ti), Q41F-300Lb(Ti), Q41F-600Lb(Ti), Q341F-150Lb(Ti), Q341F-300Lb(Ti), Q341F-600Lb(Ti), Q341F-150Lb(A), Q341F-300Lb(A), Q341F-600Lb(A)
Design Standards GB/T12237, API6D, ASME B16.34
Face-to-Face Dimensions GB/T12221, API6D, ASME B16.10
Flange Connections HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards JB/T9092, GB/T13927, API6D, API598
Titanium Material Grades
  • TA1 (Gr1): Pure titanium with excellent ductility and toughness, easy forming and welding
  • TA2 (Gr2): Pure titanium with balanced corrosion resistance and moderate strength, easy forming and welding
  • TA9 (Gr7): Titanium with 0.12-0.25% palladium for enhanced corrosion resistance in reducing environments
  • TA10 (Gr12): Titanium alloy with molybdenum and nickel for improved strength and heat resistance
  • TC4 (Gr5): Titanium alloy with 6% aluminum and 4% vanadium for high strength, hardness, and corrosion resistance
Industrial Applications
  • Chemical Industry: Handling corrosive media including acid, alkali solutions, and oxides
  • Petroleum and Natural Gas: Flow and pressure control in extraction, transportation, and processing systems
  • Marine Engineering: Seawater corrosion-resistant applications in subsea pipelines and offshore platforms
  • Aerospace: Hydraulic and fuel systems requiring lightweight, high-strength components
  • Food and Pharmaceutical: Non-toxic, contamination-free fluid control in processing systems
