ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve
ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve
ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve
ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve
Specifications
Brand Name :
LHTi
Model Number :
ASME B16.34 Ball Valve
Certification :
ISO9001,CE,etc
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000 Pieces Per Month
Delivery Time :
about 5-14 days for delivery
Packaging Details :
Plywood case or pallet, or as per your requirement
Operation Method :
Lever, Gear, Actuator
Design Standard :
API 6D, ASME B16.34
Material :
Titanium TA2 GR2
Fire Safe Design :
API 607, API 6FA
Temperature Rating :
-196°C - 600°C
Pressure Rating :
Class 150 - Class 600
Face To Face Dimension :
ASME B16.10
Operation :
Manual, Pneumatic, Electric
Anti-Static Design :
API 608
Actuator Type :
Manual, Pneumatic, Electric
Description
ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve
Corrosion resistant 6-inch ball valve designed for demanding industrial applications with superior performance and reliability.
Three-Way Titanium Ball Valves: L-Type and T-Type
ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve

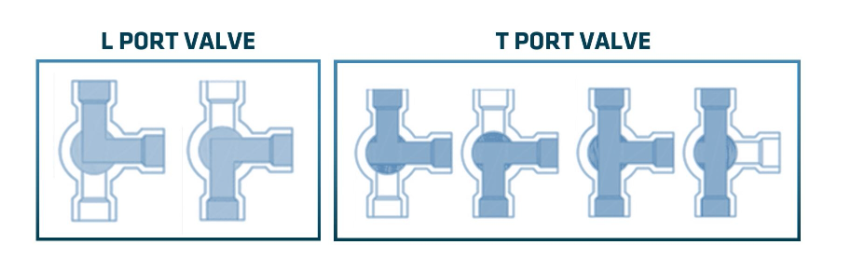

Three-way titanium ball valves are available in L-type (Q44F) and T-type (Q45F) configurations, each designed for specific flow control applications in industrial systems.
L-Type (Q44F) Three-Way Ball Valve
The L-type three-way ball valve is engineered for flow direction switching, connecting two perpendicular channels to effectively redirect medium flow from one direction to another.
T-Type (Q45F) Three-Way Ball Valve
The T-type three-way ball valve provides versatile media distribution, confluence, and flow direction switching capabilities. It enables interconnection of three channels or connection between any two channels for complex flow control requirements.
Technical Specifications
Pressure Rating PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter DN15-DN300 1/2"-12"
Drive Mode Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials TA1, TA2, TA10, Gr2, Gr3
Ball Materials TA1, TA2, TA10, Gr2, Gr3
Stem Materials TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials PTFE, RPTFE, PPL, PEEK
Titanium Ball Valve Models Q44F-16Ti, Q44F-25Ti, Q44F-40Ti, Q45F-16Ti, Q45F-25Ti, Q45F-40Ti, Q344F-16Ti, Q344F-25Ti, Q344F-40Ti, Q345F-16Ti, Q345F-25Ti, Q345F-40Ti, Q644F-16Ti, Q64F-25Ti, Q644F-40Ti, Q645F-16Ti, Q645F-25Ti, Q645F-40Ti, Q944F-16Ti, Q944F-25Ti, Q944F-40Ti, Q945F-16Ti, Q945F-25Ti, Q945F-40Ti, Q44F-150LB(Ti), Q44F-300LB(Ti), Q345F-150LB(Ti), Q645F-150LB(Ti), Q945F-150LB(Ti)
Design Standards GB/T12237, ASME B16.34
Face-to-Face Dimensions GB/T12221, ASME B16.10
Flange Connections HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards JB/T9092, GB/T13927, API598
Valve Seat Structure
Three-way titanium ball valves typically feature a two-seat structure. Custom four-seat configurations are available upon request, providing enhanced sealing performance and operational flexibility for specialized applications.
Industrial Advantages
Ball valves offer compact construction, reliable sealing, simple design, and easy maintenance. The sealing surface and spherical surface remain in closed position, minimizing medium erosion. Suitable for general working media including water, solvents, acids, natural gas, and demanding applications with oxygen, hydrogen peroxide, methane, and ethylene.
Key Features
  • Minimal Fluid Resistance: Equal resistance coefficient to equivalent pipe length
  • Compact Design: Simple structure, small size, and lightweight construction
  • Reliable Sealing: Plastic sealing surfaces provide excellent sealing, suitable for vacuum systems
  • Quick Operation: 90° rotation for full open/close operation, compatible with remote control
  • Easy Maintenance: Simple construction with generally removable sealing rings for straightforward disassembly and replacement
  • Surface Protection: Ball and valve seat sealing surfaces isolate from medium when fully open or closed, preventing erosion
Industrial Applications
Chemical and Petrochemical Industry
Fluid distribution and confluence for chemical mixing or separation in complex reaction processes. Flow direction switching for production process requirements.
Oil and Gas
Pipeline system management for fluid transport path control, splitting, and merging operations. Equipment maintenance with fluid path switching to maintain system operation.
Water Treatment
Water distribution control in treatment plants for flow direction switching between treatment stages. Filtration system operation for filter status switching.
Food and Beverage Industry
Liquid handling for distribution, mixing, and flow direction switching in production lines. CIP system integration for cleaning and disinfecting liquid flow control.
Pharmaceutical Industry
Production process management for liquid medicine direction and mixing control. Laboratory equipment for fluid sample distribution and handling.
HVAC Systems
Cooling and heating system integration for cooling/heating water flow direction switching and temperature regulation. Energy management optimization through flow direction control.
