ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
Specifications
Brand Name :
LHTi
Model Number :
Titanium Rod
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
30 kg
Price :
$20.00~$30.00/kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability :
300000 kg per month
Delivery Time :
10-25 work days
Packaging Details :
Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Diameter :
3mm-350mm
Material :
Pure titanium
Surface :
Bright,Polished,Pickling
Condition :
Annealed; M
MOQ :
30 kg
Packing :
Standard Export Packing
Description

ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars

Material:Titanium alloy
Standard:GR1,GR2,GR3,GR5,GR7,GR12 TC4 TA2
Surface:Turned/ as After Forging
Density:4.51 G/cm3
Model number:ASTM B348,ASTM F136,ASTM F67,AMS4928

Titanium bars are divided into pure titanium bar and titanium alloy bars. For pure titanium bars we mainly provide Gr1, Gr2, Gr4 and other grades; we provide titanium alloy bars of Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18


Item Name Titanium bar/titanium rod
Standard ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material Gr1 Gr2 Gr3 Gr4 Gr5
Diameter 0.8~500mm
Length 500~6000mm or according to customers' request
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape Round bar, square bar , hex bar
Feature

1.Polished surface without any defects free from cracks no pittings
2.Two ends flating making sure length torlerance and good looking
Certificate ISO9001:2015, TUV, material test certificate acc EN10204.3.1

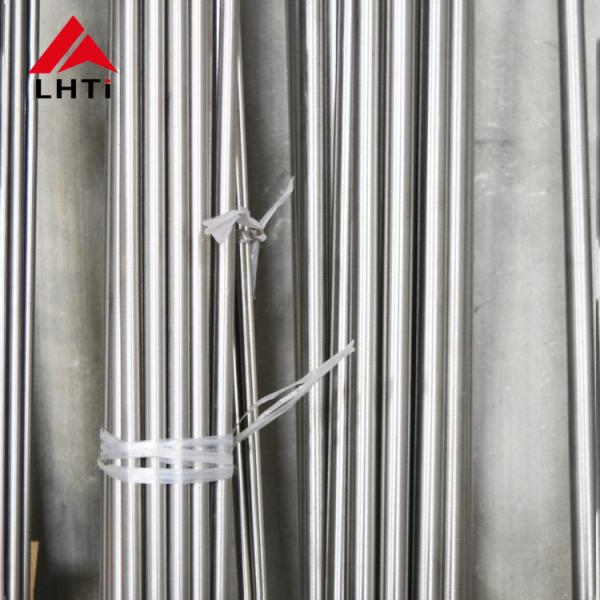

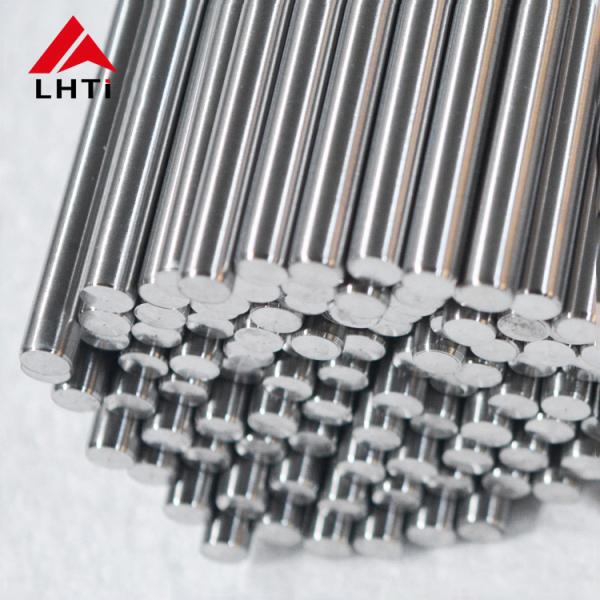

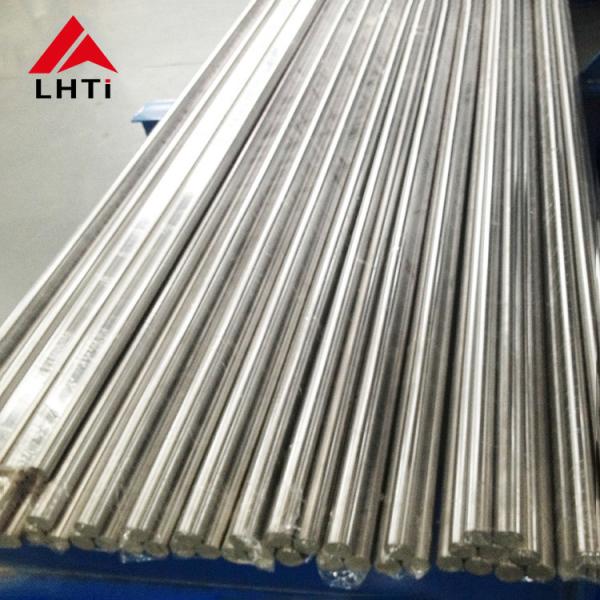

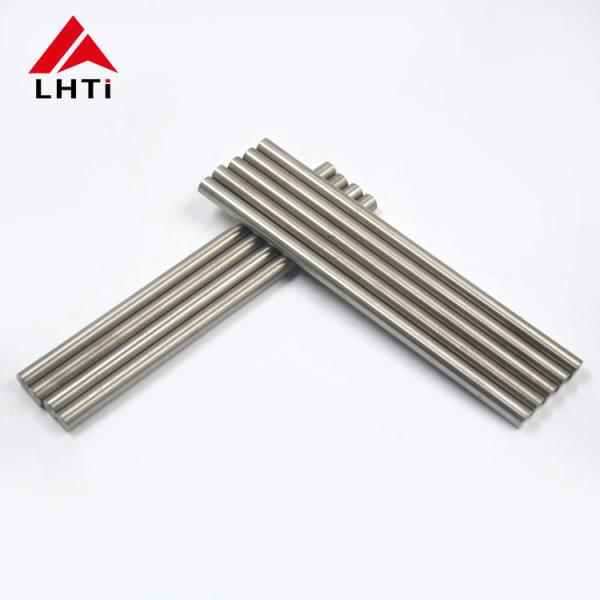

Product picture:

ASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod BarsASTM B348 Dia 18mm Gr5 Ti6al4v Titanium Rod Bars
