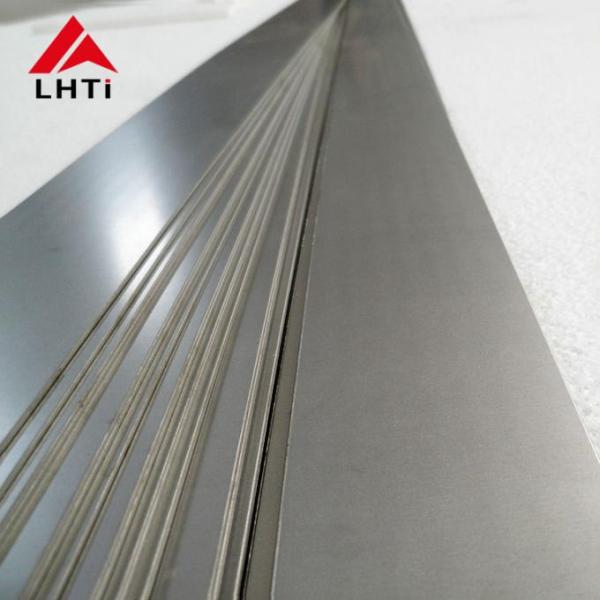

ASTM B265 Titanium Sheet Square Shape Acid Washing
ASTM B265 Titanium Sheet Square Shape Acid Washing
ASTM B265 Titanium Sheet Square Shape Acid Washing
ASTM B265 Titanium Sheet Square Shape Acid Washing
ASTM B265 Titanium Sheet Square Shape Acid Washing
ASTM B265 Titanium Sheet Square Shape Acid Washing
Specifications
Brand Name :
LHTi
Model Number :
LH-plate
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
50 kg
Price :
USD12.00-35.00 per kg
Payment Terms :
L/C, D/P, T/T, Western Union，paypal
Supply Ability :
200000 kg per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Standard: :
ASTM B265
Technology: :
Cold Rolled
Shape: :
Square
Surface: :
Polished, Acid Washing
Description
ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing

Gr9 Gr12 Thin Titanium Sheet Acid Washing

Appearance: Silver grey white metal
Melting point: 194k (1668°C, 3034°F)
Boiling point: 3560 K (3287°C, 5949°F)
Density (near room temperature) : 4.506 g/cm3
Liquid time (melting point) : 4.11 g/cm3
Heat of fusion: 14.15 kJ/mol
Heat of vaporization: 425 kJ/mol
Molar heat capacity: 25.060 J/(mol·K)

Gr12 Ti-0.3Mo-0.8Ni titanium molybdenum nickel alloy plate is a kind of corrosion resistance titanium alloy, is in order to improve the pure titanium gap corrosion performance of the alloy, the alloy contains 0.3%Mo and 0.8%Ni, not only strengthen the alloy, but also for high temperature, low PH fireworks without or weak reducing acid has good gap corrosion resistance, Its corrosion resistance is significantly better than pure titanium plate. It also has good process plasticity and welding performance and has been widely used in chemical industry.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
