Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
200000 kg per month
Delivery Time :
10-28 work days

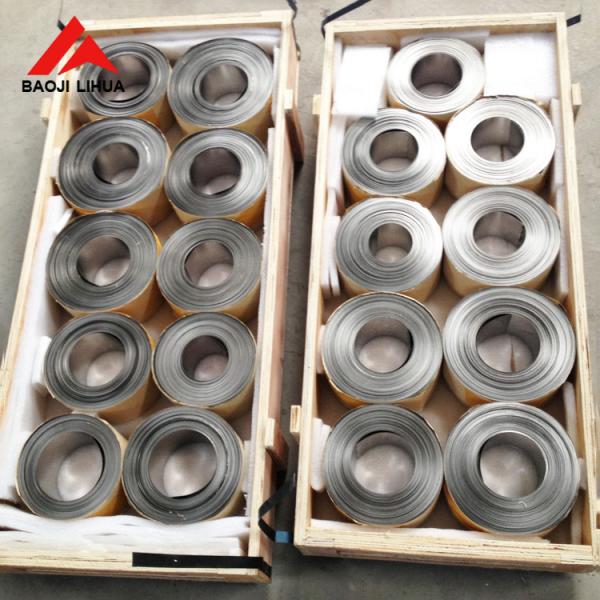

Packaging Details :
Plywood box with soft foam for additional protection
Standard :
ASTM B265
Technology :
Cold rolled
Shape :
square
Surface :
Polished, Acid Washing
Description

Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet

Application:Industrial
Thickness:0.03-2mm, 0.03-2mm
Width:50-300 mm, 50-300mm
Length:Customized
Grade:titanium foil grade 2
Ti (Min):99.6%
Standard:ASTMB265 ASTMF67 ASTM
Certificate:ISO9001:2015 TUV material

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
