Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
200000 kg per month
Delivery Time :
10-28 work days
Packaging Details :
Plywood box with soft foam for additional protection
Standard :
ASTM B265
Technology :
Cold rolled
Shape :
square
Surface :
Polished, Acid Washing
Description

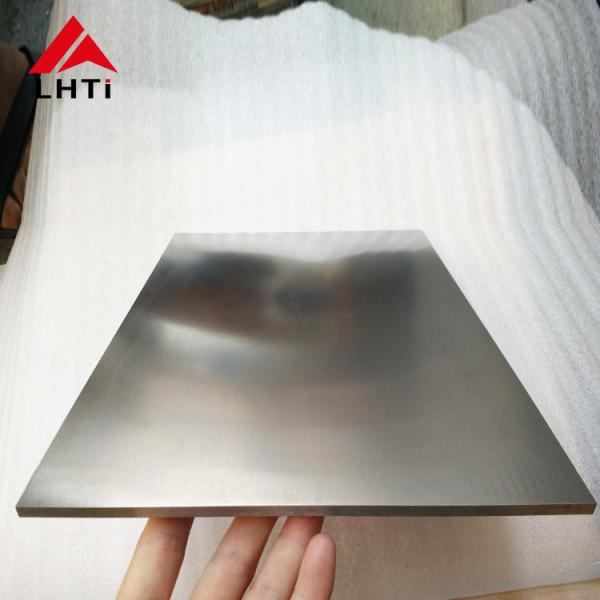

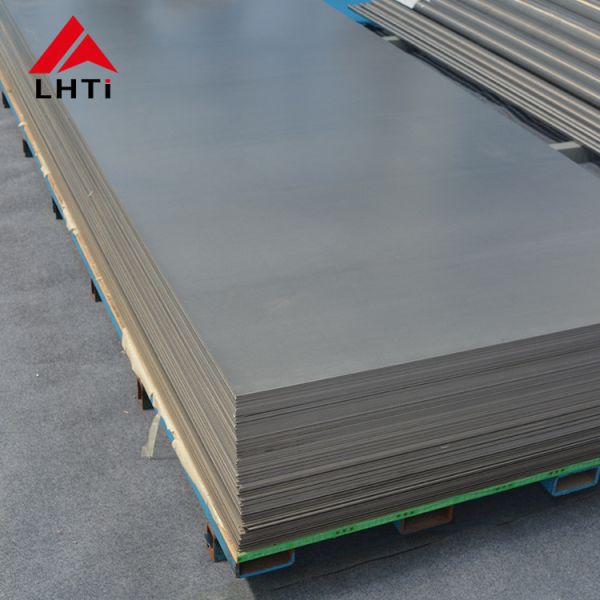

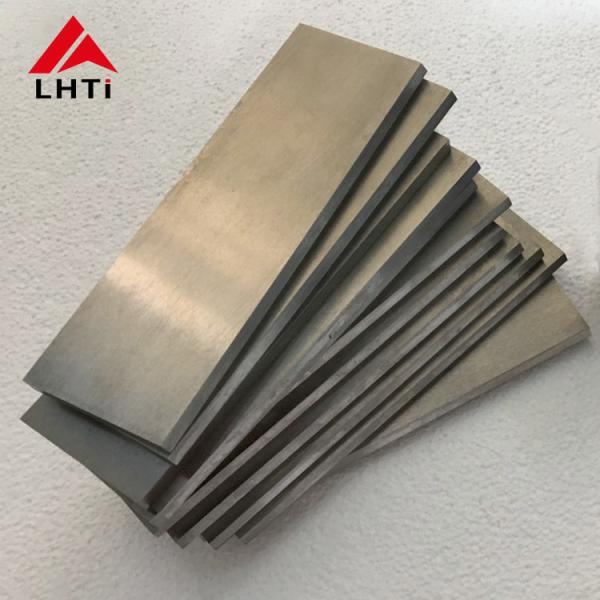

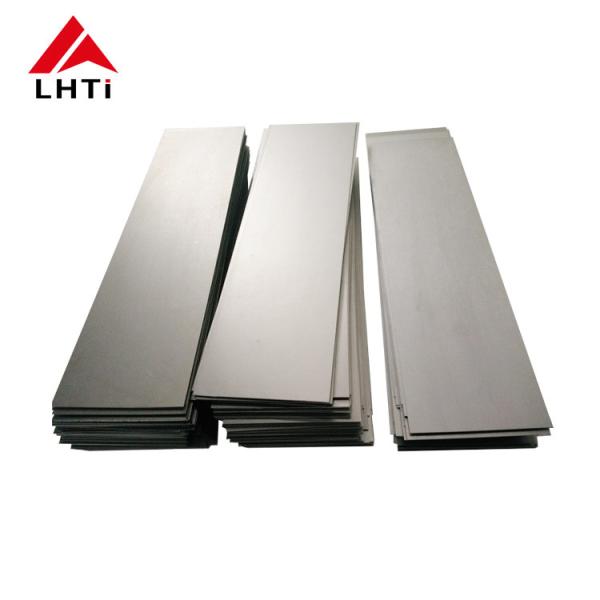

GR1 Titanium alloy plate titanium sheet

GR1 Titanium Plate can be classified into three types: hot rolled, forged, and cold rolled. The specification of hot rolled GR1 Titanium Plate is 5.5-250mm. Among them, small pure titanium plates with diameters of 5.5-25mm are mainly supplied as titanium alloys, bolts and straight strips used as various mechanical parts. Pure titanium sheets over 25mm are mainly used for making mechanical parts or seamless titanium tube blanks. Due to the difference in the chemical composition and strength of titanium alloys, there are differences in physical and mechanical properties. Pure titanium plates have better cold bending performance and can be used with 180-degree hooks. The weldability of GR1 Titanium Plate is better, and ordinary carbon electrodes can be used.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

GR1 Titanium alloy plate titanium sheet
