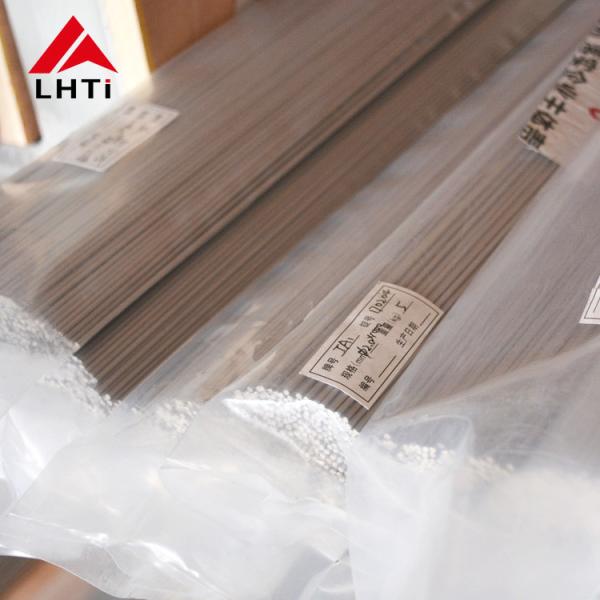

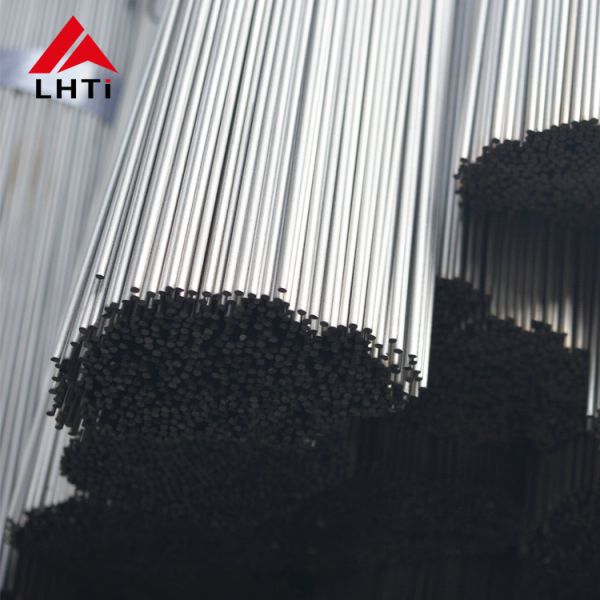

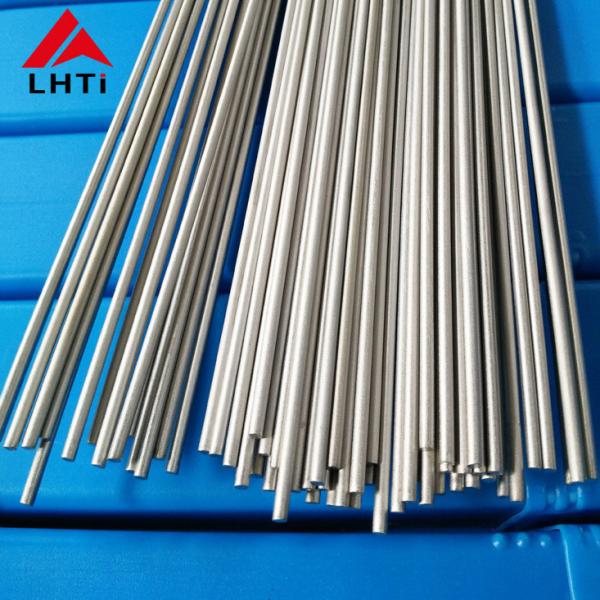

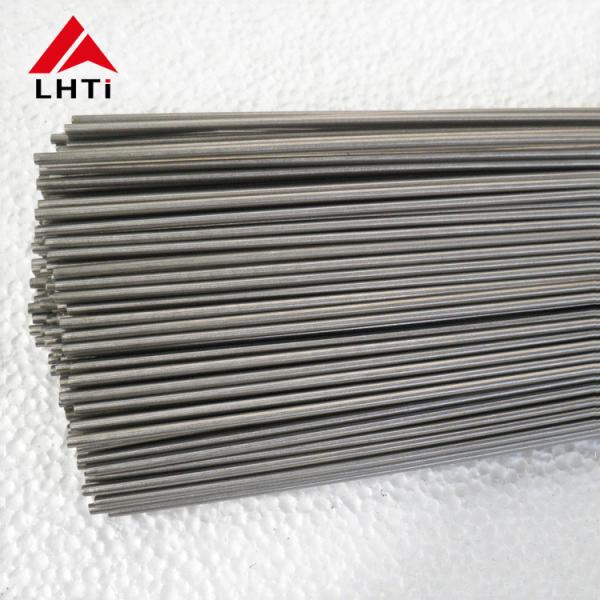

Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Straight Pure Titanium Wire Erti-4 With Pickling Surface
Specifications
Brand Name :
LHTI
Model Number :
LH-12
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
10 kg
Payment Terms :
L/C, D/P, T/T, Western Union,paypal etc
Supply Ability :
50000 kgs per month
Delivery Time :
In stock--3 days.production--15-20 working days
Packaging Details :
Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Product Name :
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade :
Grade1 Grade2 ErTi1 ErTi2
Shape :
Coil,spool,straight
Material :
Pure titanium
Surface :
Pickling surface/polish surface
Package :
Standard export package
Hot sale diameter :
0.8mm-5mm etc
Length :
1000mm
Key words :
Thin Titanium wire
Description

Pure Titanium Wire 2.4mm With Pickling Surface

Erti-5 Titanium Welding Wire is widely used in aerospace, chemical industry, medical treatment, metallurgy, construction and automobile industries, due to its good corrosion resistance, low temperature and high temperature resistance, high strength, small elastic modulus and low density. The density of titanium alloy is generally around 4.51g/cm3, which is only 60% of steel.

Features

Erti-5 Titanium Welding Wire has its surface clean, with no oxidation color, no cracks, peeling, pricking, speckles and inclusions. This wire has good heat resistance, strength, plasticity, toughness, formability, weldability, corrosion resistance and biocompatibility, which is widely used and favored. The amount of this alloy has accounted for 75-85% of all titanium alloys.

Product specification:Diameter: 1.0 mm to 6.0 mm

The material: ERTi-5 Titanium Welding Wire(TC4 Ti-6Al-4V)

ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7

AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25

Straight Pure Titanium Wire Erti-4 With Pickling Surface
