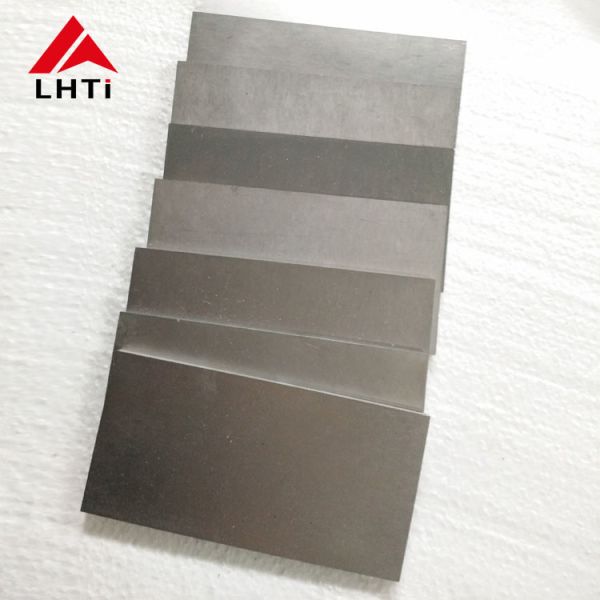

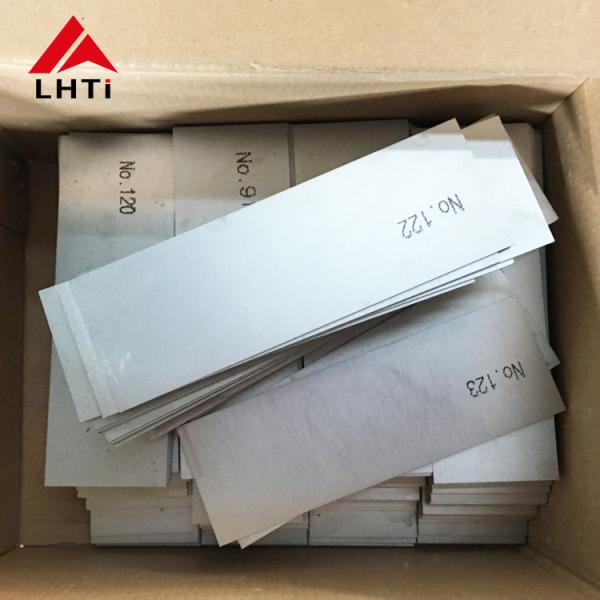

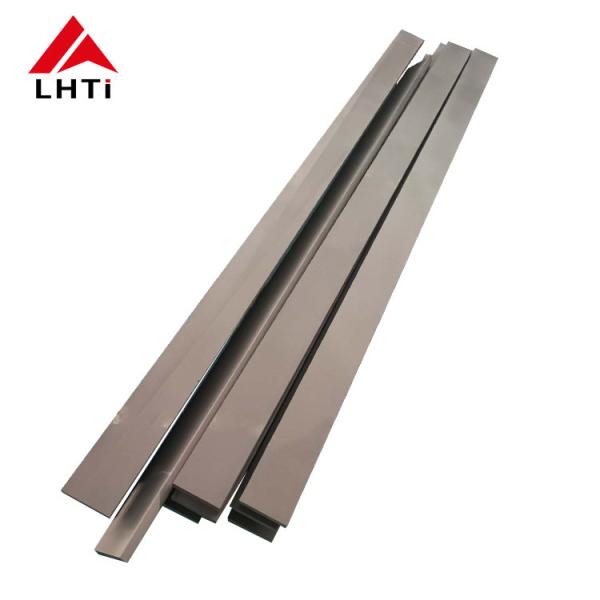

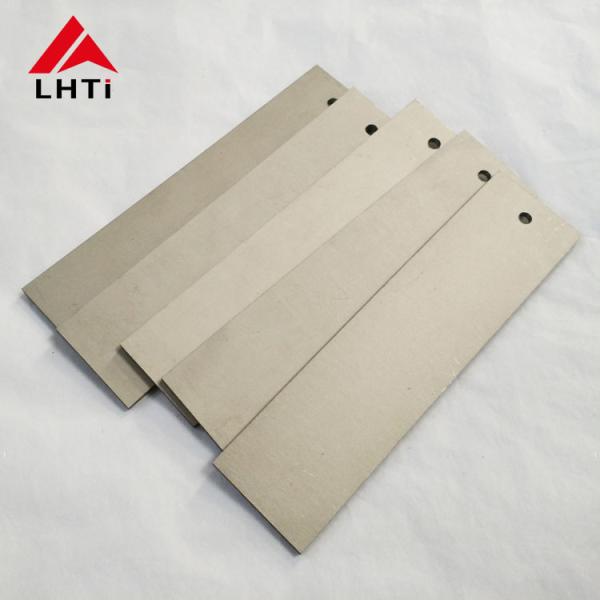

GR2 Titanium alloy plate titanium sheet
Application:Medical,Industry
Thickness:≥0.5mm
Width:1000mm(min)
Length:6000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade: GR2 Ti (Min):99.5%
Surface:Polished/Pickling
Type:heat exchanger/equipment
Certification:ISO,EN10204 3.1,EN10204 3.2
Standard:ASME SB265 ASTM B265
Shape:Flat
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
