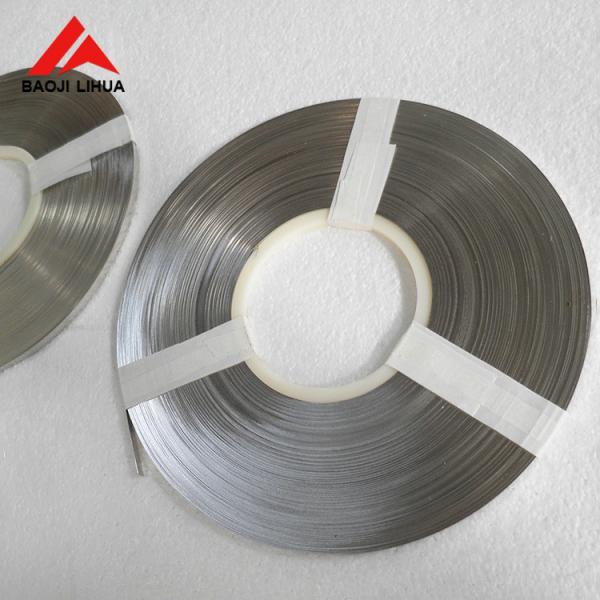

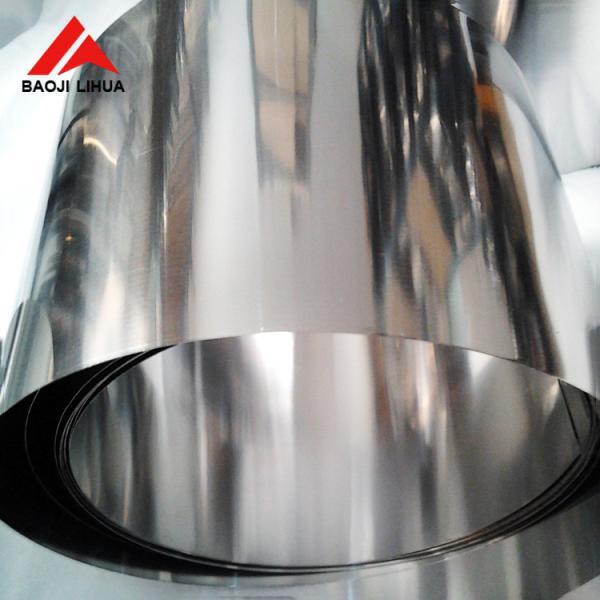

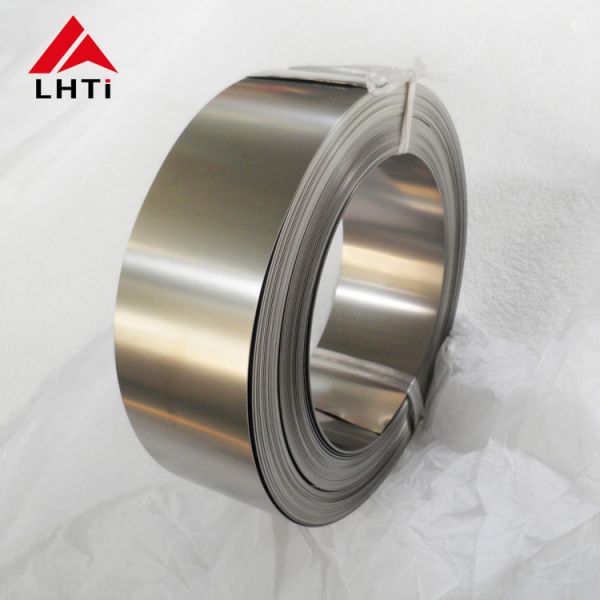

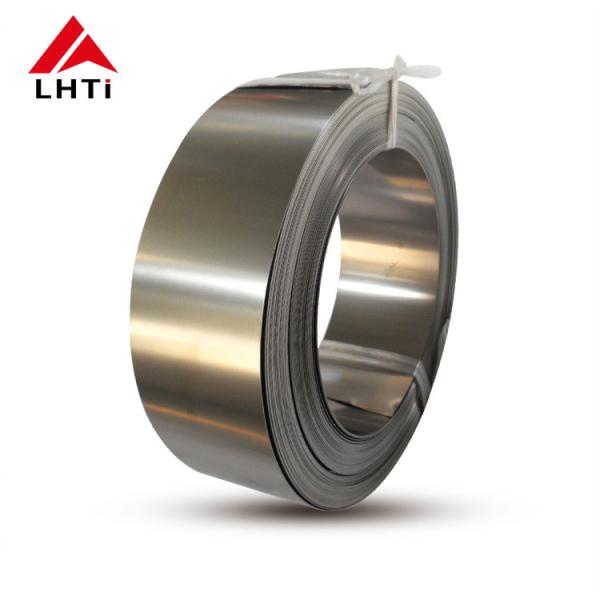

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
200000 kg per month
Delivery Time :
10-28 work days

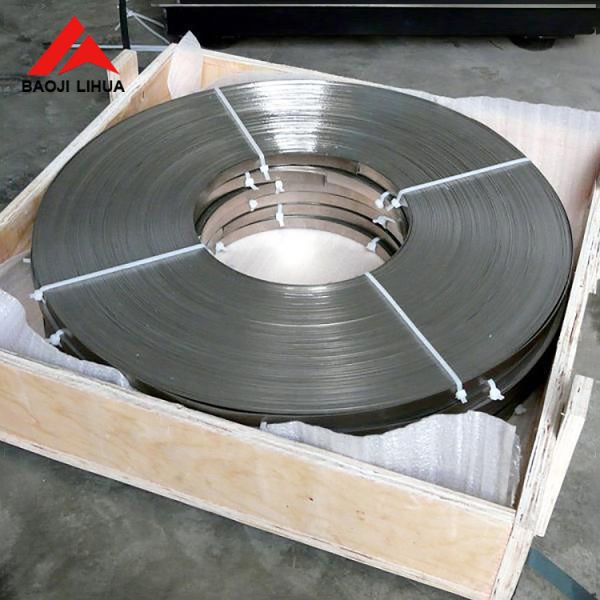

Packaging Details :
Plywood box with soft foam for additional protection
Standard :
ASTM B265
Technology :
Cold rolled
Shape :
square
Surface :
Polished, Acid Washing
Description

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

The Titanium Foil Grade 2 plays an important role in marine, gas turbine engines , heat exchangerss, condensers, desalination plant, dental alloys, pulp and paper, centrifuges, and so on. The speaker diaphragm made of our product makes it variable small. And it can be an ideal material for seawater piping ,medical implants ,electrochemistry, steam turbines ,food and pharmaceutical industry, oil refining and gas industry, jewellery, architecture, domestic appliances and so on.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

Send your message to this supplier
Send Now

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

Ask Latest Price
Product Detail
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Contact Supplier
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

Baoji Lihua Nonferrous Metals Co., Ltd.

Verified Supplier
7 Years
Shaanxi, baoji
Since 2006
Business Type :
Manufacturer
Main Products :
Titanium Flange, Titanium Tube, Titanium Rod
Total Annual :
2000000-4000000
Certification Level :
Verified Supplier
