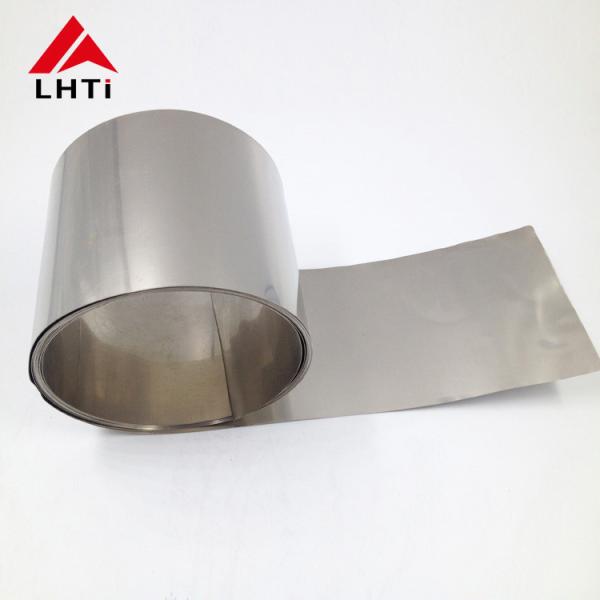

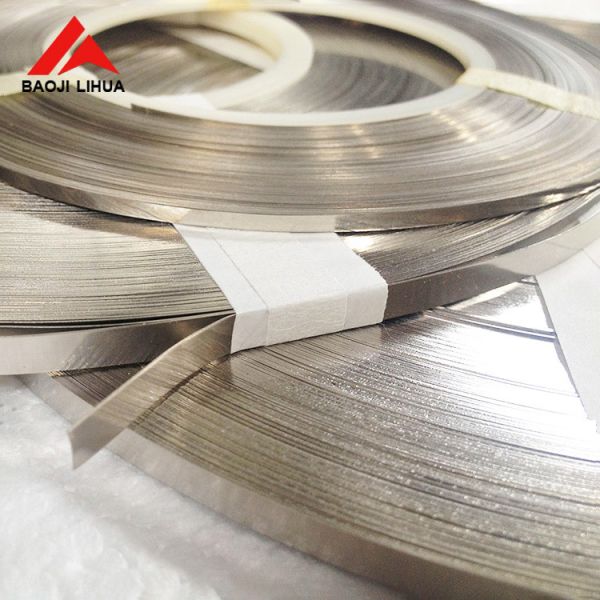

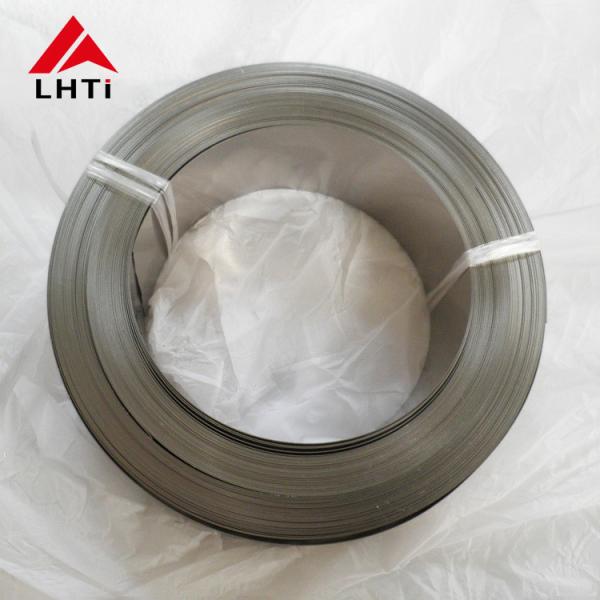

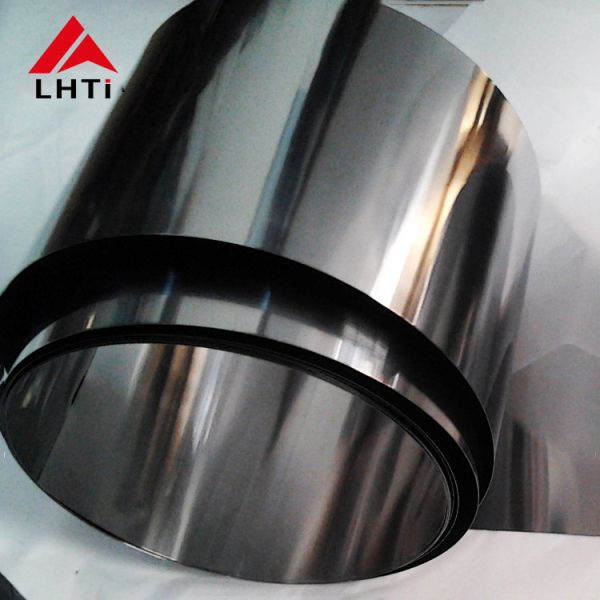

Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Titanium Foil Titanium Alloy Sheet Titanium Sheet
Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
200000 kg per month
Delivery Time :
10-28 work days
Packaging Details :
Plywood box with soft foam for additional protection
Standard :
ASTM B265
Technology :
Cold rolled
Shape :
square
Surface :
Polished, Acid Washing
Description

Titanium Foil Titanium Alloy Sheet Titanium Sheet

Standard ASTM B265
Material Gr2
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Technology hot forging ~ hot rolled ~ machining
Application Marine,Airframes,Gas Turbine Engines , Heat exchangers ,Condensers,Desalination plant,Dental alloys,Pulp and paper, Centrifuges, Springs ,Sporting equipment,Automotive ,Seawater piping ,Medical implants ,Electrochemistry,Steam turbines ,Food and pharmaceutical industry, Oil refining and gas industry, Jewellery, architecture, domestic appliances
Advantage heat resistant, insensible to temperature changes, pressure resistant and stable in salt, moisture and organic conditions.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
