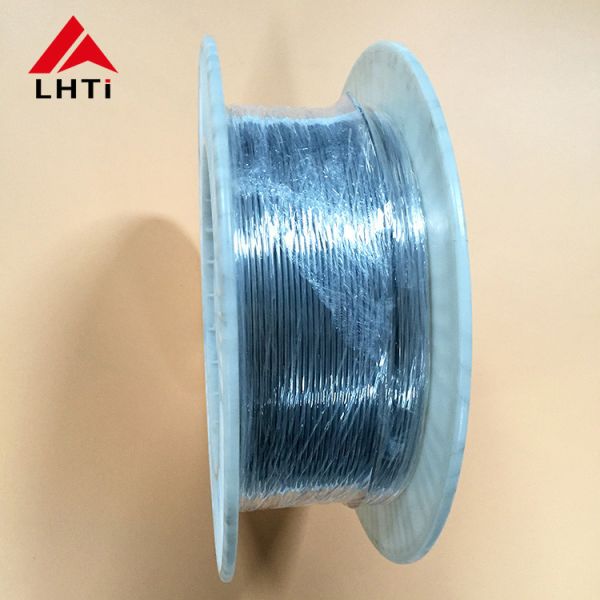

GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
GR23 Titanium Wire Titanium Weld Wire
Specifications
Brand Name :
LHTI
Model Number :
LH-12
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
10 kg
Payment Terms :
L/C, D/P, T/T, Western Union,paypal etc
Supply Ability :
50000 kgs per month
Delivery Time :
In stock--3 days.production--15-20 working days
Packaging Details :
Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Product Name :
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade :
Grade1 Grade2 ErTi1 ErTi2
Shape :
Coil,spool,straight
Material :
Pure titanium
Surface :
Pickling surface/polish surface
Package :
Standard export package
Hot sale diameter :
0.8mm-5mm etc
Length :
1000mm
Key words :
Thin Titanium wire
Description

GR23 Titanium Wire Titanium Weld Wire

GR23 Titanium Wire is the higher purity version of Ti 6Al-4V. It can be made into coils, strands, wires or flat wires and is the top choice for any sort of situation where a combination of high strength, light weight, good corrosion resistance and high toughness are required. It has a superior damage tolerance to other alloys.

These benefits make Ti 6AL-4V ELI the ultimate dental and medical titanium grade and can be used in biomedical applications such as implantable components due to its biocompatibility, good fatigue strength and low modulus.

ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7

AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25

GR23 Titanium Wire Titanium Weld Wire
