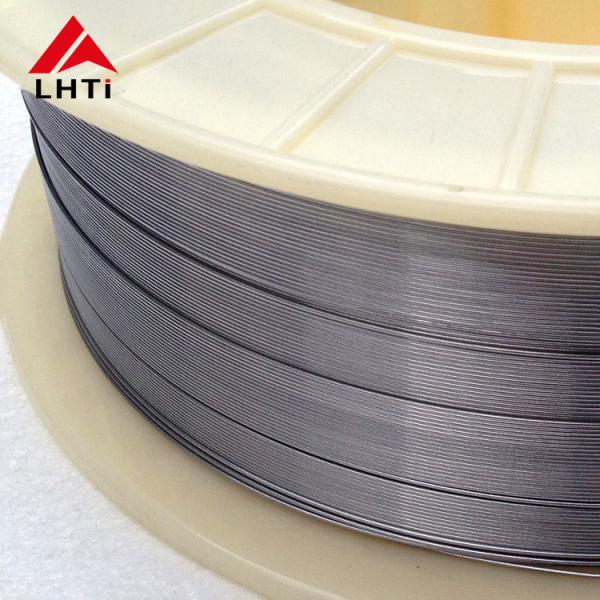

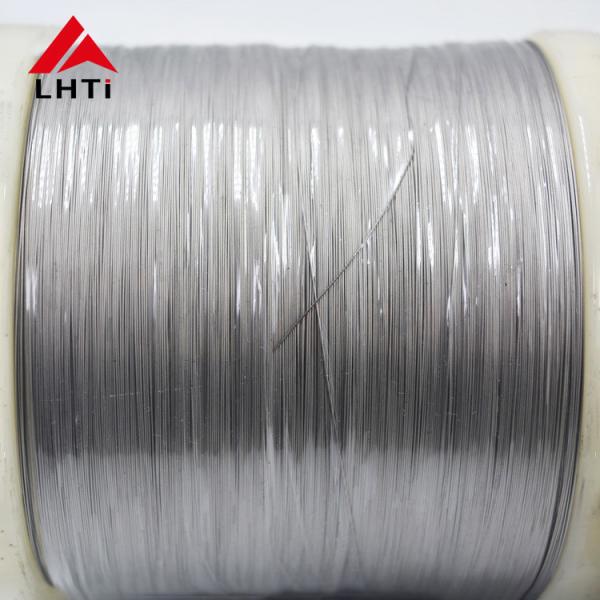

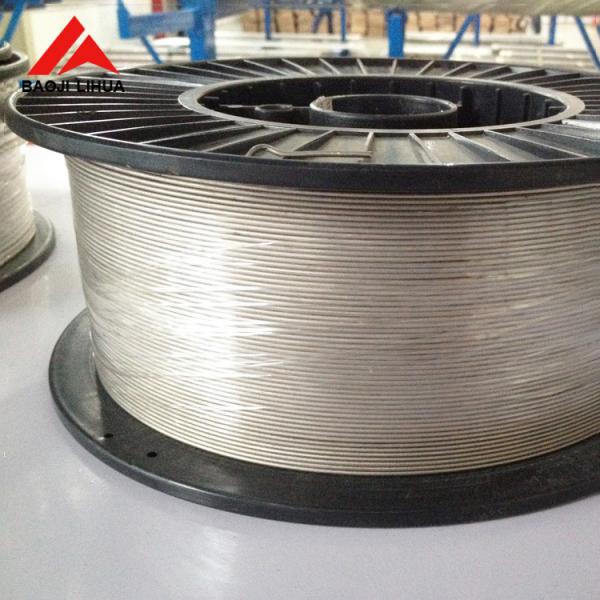

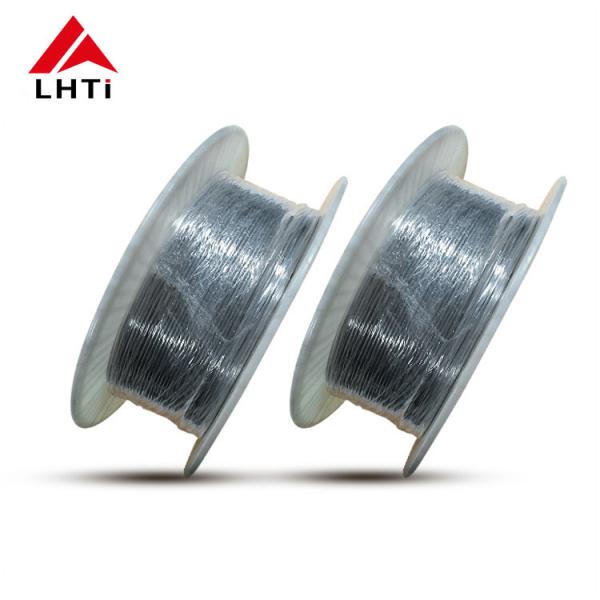

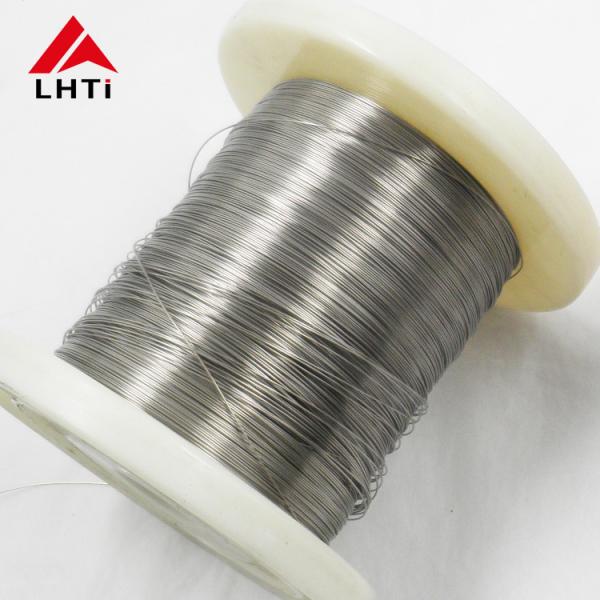

Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire
Specifications
Brand Name :
LHTI
Model Number :
LH-12
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
10 kg
Payment Terms :
L/C, D/P, T/T, Western Union,paypal etc
Supply Ability :
50000 kgs per month
Delivery Time :
In stock--3 days.production--15-20 working days
Packaging Details :
Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Product Name :
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade :
Grade1 Grade2 ErTi1 ErTi2
Shape :
Coil,spool,straight
Material :
Pure titanium
Surface :
Pickling surface/polish surface
Package :
Standard export package
Hot sale diameter :
0.8mm-5mm etc
Length :
1000mm
Key words :
Thin Titanium wire
Description

Pure Titanium Wire Titanium TI-6AL-4V Weld Wire

Our Product Titanium product detailed specifications
Name Titanium wire Gr.1 Gr.2 Gr.5 Gr.7 Gr.9 Titanium alloy wire Titanium Welded Wire
Standard AWS A5.16,ASTM B348,ASTM B863,,ASME SB863,ASTM F136,ASTM F67,ASME SB863
Grade Gr.1, Gr.2, Gr.3, Gr.4, Gr.5 (Ti-6Al4V), Gr.7 (Ti-0.2Pd), Gr.9 (Ti-3Al2.5V), Gr.12 (Ti-0.3Mo-0.8Ni), Gr19 (Ti-3Al-8V-6Cr-4Mo-4Zr), Gr.23 (Ti6Al4V-ELI)
Size (mm) Straight Dia.: 1.0mm-5.0mm ( tolerance: +/-0.05mm)
Size (mm) Coiled Dia: 0.03mm-5.0mm ( tolerance: +/-0.05mm )
Surface Black, pickled, polished (diameter> 1mm)
Shape Barrel Titanium weld wire, Titanium coil weld wire, titanium straight weld wire, Titanium spools weld wire

ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7

AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25
