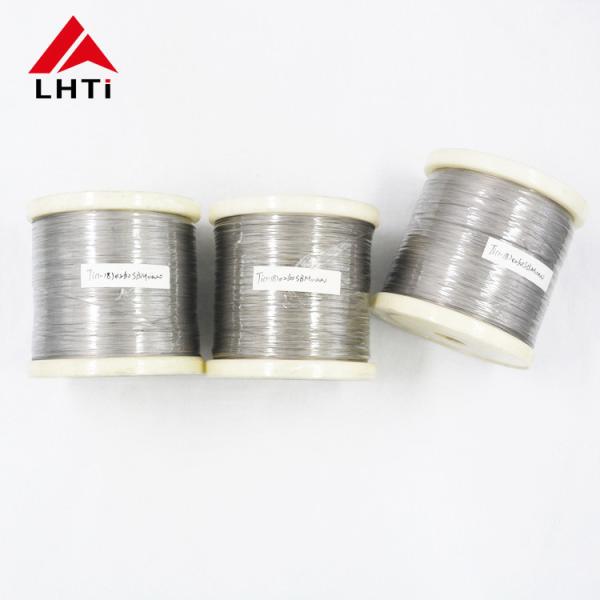

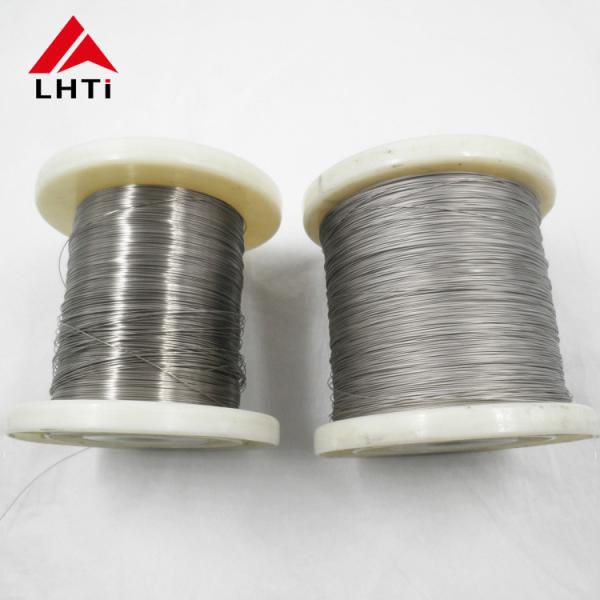

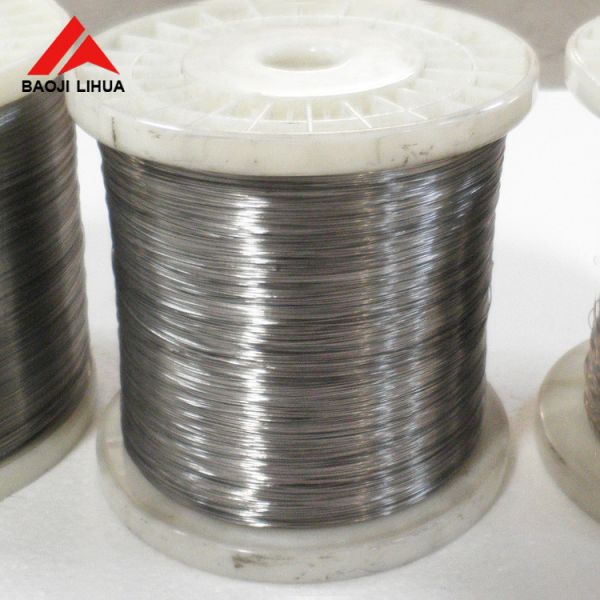

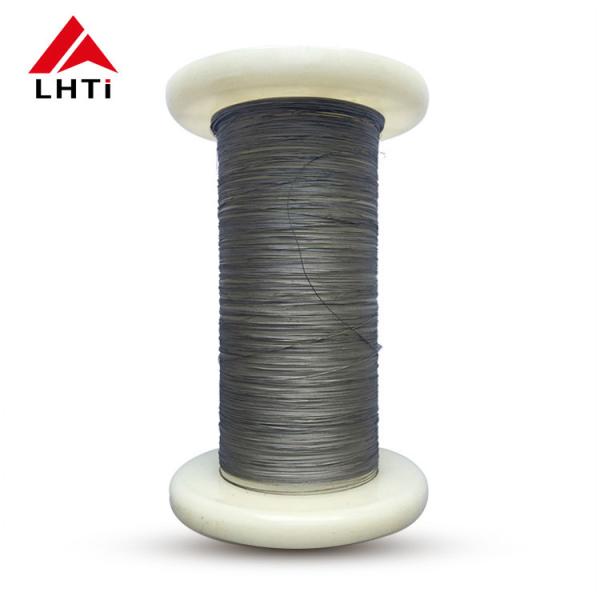

ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
ASME SFA 5.16 Titanium Wire With Pickling Surface
Specifications
Brand Name :
LHTI
Model Number :
LH-12
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
10 kg
Payment Terms :
L/C, D/P, T/T, Western Union,paypal etc
Supply Ability :
50000 kgs per month
Delivery Time :
In stock--3 days.production--15-20 working days
Packaging Details :
Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Product Name :
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade :
Grade1 Grade2 ErTi1 ErTi2
Shape :
Coil,spool,straight
Material :
Pure titanium
Surface :
Pickling surface/polish surface
Package :
Standard export package
Hot sale diameter :
0.8mm-5mm etc
Length :
1000mm
Key words :
Thin Titanium wire
Description

ASME SFA 5.16 Titanium Wire With Pickling Surface

Grade:GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12,TA1-TA3,TA8-TA10
Standard:GB/T3623-2007,ASTM B348/ ASME SB348, ASTM B863 AWS5.16,GB/T16598
Size:Dia(0.2mm-5mm) *Length
Certification:ISO9001:2015
MOQ:5 kilograms
Processing method:Hot drawing
Surface:Polishing, picking, acid washed, black oxide
Classification:Straight /coil; Polishing/Pickling
Application:Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles etc

ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7

AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25

ASME SFA 5.16 Titanium Wire With Pickling Surface
