Specifications
Brand Name :
LH-Ti
Model Number :
Gr2 titanium round seamless pipe and tube
Certification :
ISO9001:2015
Place of Origin :
Shaanxi, China
MOQ :
5 Kg
Price :
$20.00~$30.00/kg
Payment Terms :
L/C, T/T, MoneyGram,Paypal
Supply Ability :
10000 Kilogram/Kilograms per Month
Delivery Time :
10-25 work days
Packaging Details :
First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.
Standard :
ASTM
Technique :
Seamless, Cold Drawn
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Material :
Titanium
Grade :
Titanium, Gr2 Gr5 Gr7 Gr9 Gr12
Application :
Industrial
Outer Diameter :
10-300mm
Inside Diameter :
4~268mm
Description

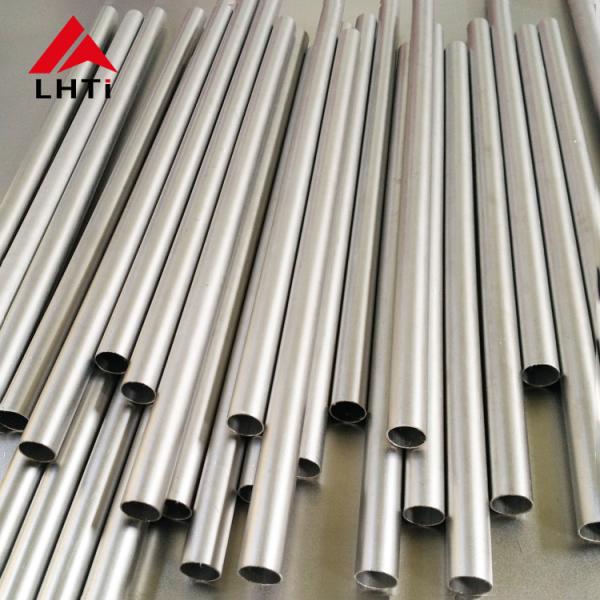

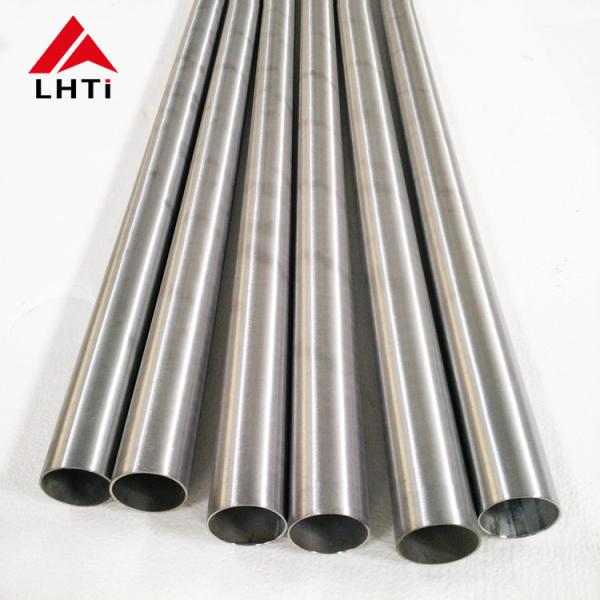

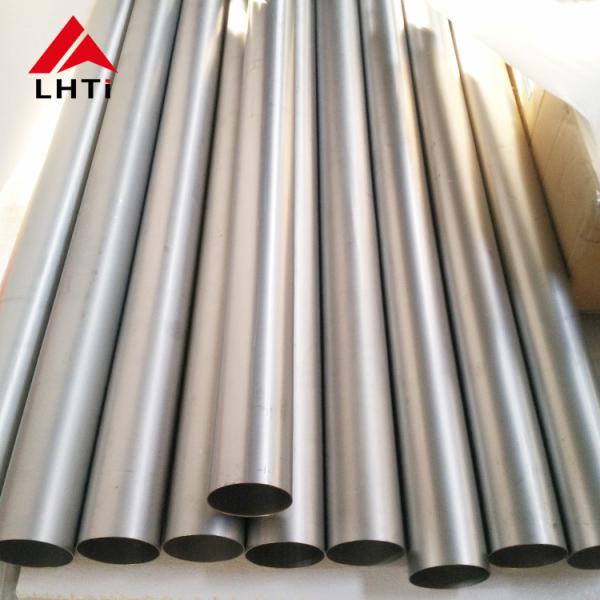

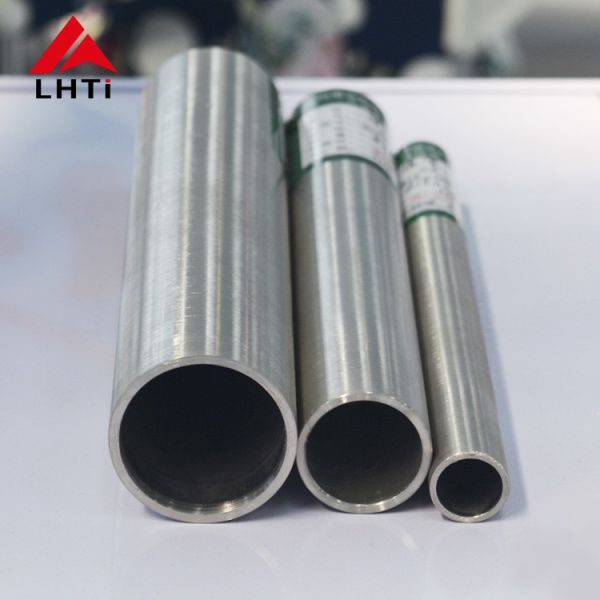

Gr23 Medical Titanium Tube Titanium Pipe

Standard:ASTMB 136 ISO5832-3
Specification OD:8-600mm WT: 0.2-15mm L(max) 6000mm
Manufacturing method:Deep hole drilling/cutting
Surface:Polishing/sandblasting
Advantages:High accuracy
Application:Manufacture of medical devices, prostheses or artificial organs implanted in the human body and auxiliary treatment of high

Gr23 Titanium Medical Tube has high specific strength, similar mechanical properties to human bone, much stronger than pure titanium, and excellent resistance to fatigue, corrosion and biocompatibility.
It is widely used in various artificial joints, artificial bones, bone fixation devices, denture, dental inlay, fixed bridge, etc.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
