Specifications
Brand Name :
LHTi
Model Number :
LH-Ti12
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
100 kgs
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
50tons per month
Delivery Time :
7-25 working days
Packaging Details :
Standard exporting packaging, plywood case outside
Material :
Titanium gr2
Standard :
ASTM B338
Out diameter :
OD12.7mm-OD50mm
Wall thickness :
0.55-3.0mm
Length :
Customized
Surface :
Bright,Polished
Technique :
Seamless. welded
Shape :
Superfine U coils, spiral coil, box type coil
Processing :
Rolled,welding and bending
Application :
Conden condenser,heat exchanger, cooling ect.
Description

ASME B338 Grade 2 Titanium coil tube for heater for condenser

Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube.

titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc.


Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser

Material:Gr2 Titanium

Standard:ASME B338

OD:12.7mm-50mm

Wall thickness:0.55mm----3.0mm(normal use)

Length:0.55mm----3.0mm(normal use)

Applications:

Coiling pipe; petroleum pipeline,

Fluid Transportation Piping,

Water tank, boiler, heat exchanger unit,

Heat exchanger; Condenser,
Sea farming; electroplating equipment etc.
Quality control :

Seamless Tube: Ultrasonic or eddy current inspection.
Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection.

Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti

Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Detailed pictures:

Purpose:
Titanium tube heat exchangers can be widely used in temperature control of marine heating and cooling systems for swimming pools, aquariums, aquariums, sea baths, electroplating tanks, chemical equipment. It can also be used in anti-corrosion fields, such as seawater utilization and surface treatment industries. In addition, titanium tube heat exchangers are also used in food, distilled water, purified water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in environmental protection fields, such as exhaust gas condensation recovery, pollutant (solvent) recovery, etc.

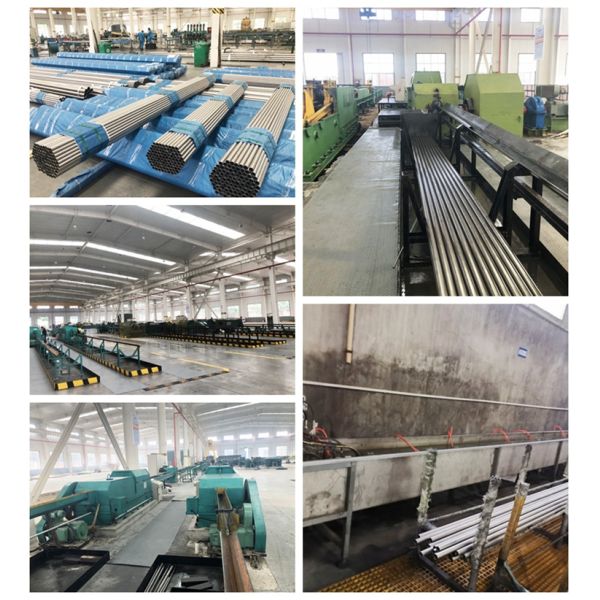

About our company

Condenser ASME B338 Grade 2 Coil Titanium Tube BendingCondenser ASME B338 Grade 2 Coil Titanium Tube Bending

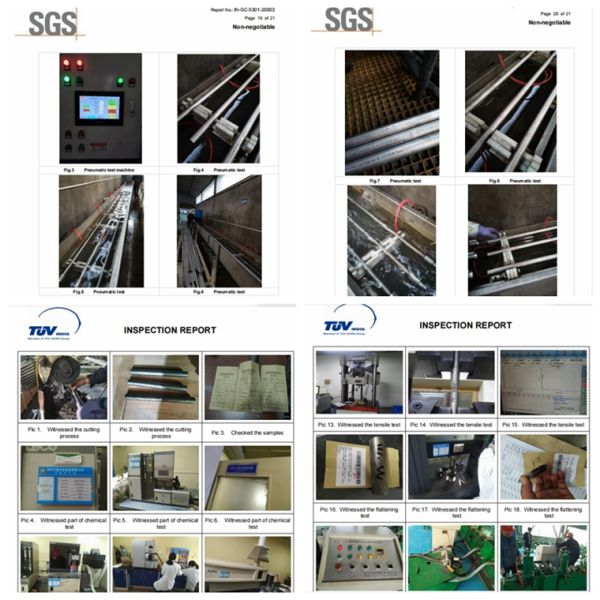

The third party testing report(some of pages):

Condenser ASME B338 Grade 2 Coil Titanium Tube Bending

Condenser ASME B338 Grade 2 Coil Titanium Tube BendingCondenser ASME B338 Grade 2 Coil Titanium Tube Bending
