Specifications
Brand Name :
LHTi
Model Number :
LHTi003
Certification :
ISO9001
Place of Origin :
Shaanxi, China
MOQ :
2 Kilogram/Kilograms
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2 Metric Ton/Metric Tons per Month Good products and stick quality system.
Delivery Time :
10-15 work day
Packaging Details :
Plywood case and then tied by steel band.
Application :
Oil And Chemicals Power
Technique :
Hot Rolled/Annealed
Grade :
gr 1,gr2,gr5, GR1GR2GR9GR12
Powder Or Not :
Not Powder
Ti Content (% :
99.8%
Dimensions :
Customized
Color :
Silver
Certified :
ISO9001-2015
Characteristic 1 :
Excellent corrosion resistance
Characteristic 2 :
Lower life-cycle costs
Characteristic 3 :
Longer service life
Characteristic 4 :
Lower maintenance and repair costs
Characteristic 5 :
Memory function
Description

Gr2 Titanium forgings ASTM B381 OD 1074 Titanium Channel Flange ring

Product Names Dimensions Grade Standards
Outer Diameter Inner Diameter Height
(mm) (mm) (mm)
Disc 150~300 / 20~140

GR1,GR2,GR5,GR7,
GR9,GR12,GR23




 ASTM B381
300~500 / 25~150
500~600 / 30~110
Ring 200~400 100~300 20~150
400~700 150~500 30~250
700~900 300~700 35~300
900~1300 400~900 50~400

Grade1-12

grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18

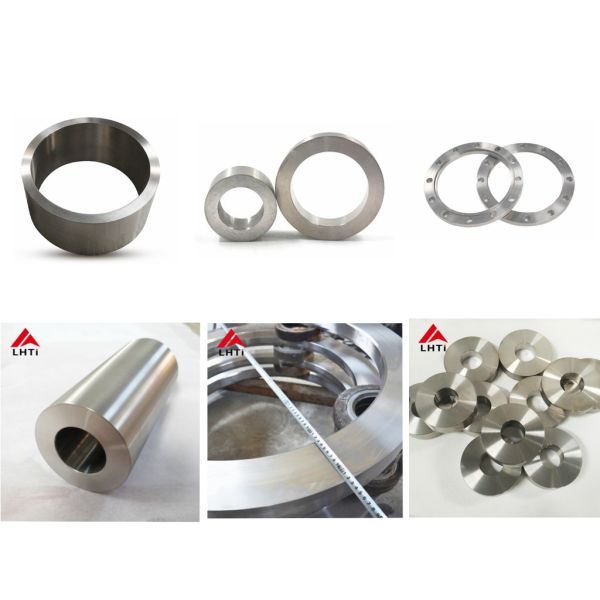

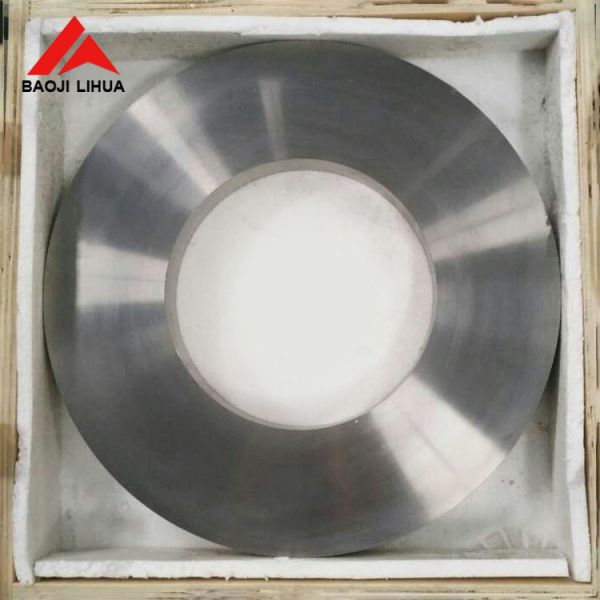

Product detail picture
