ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
10kgs of each size
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability :
5 tons per month
Delivery Time :
15-25 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Key words 1 :
Titanium welded tube
Key words 2 :
Titanium tube Gr1 Gr2 Gr7 Gr12
Material :
Pure titanium , Titanium alloy
Standard :
ASTM/ASME B 338 & ASTM/ASME B862
Grade :
Grade 1 Grade 2 Grade 7 Grade 12 etc.
Length :
Max 12 meter
Surface :
Pickling surface
Payment term :
T/T,L/C etc
Application :
Chemical industry
Description

ASTM B862 Gr2 Gr7 Gr12 titanium welded pipe piping with length = 6000mm price per kg

Titanium welded tube is light but with high strength. The most important feature is high corrosion-resistance.

Titanium welded tubes are widely used in water engineering, petrochemical industry, chemical industry, power industry, and agricultural irrigation and urban construction.

For liquid transportation: water supply and drainage.

For gas delivery: gas, steam, liquefied petroleum gas.

For structural purposes: used as piling pipes, bridges, piers, roads, building structures, pipes, etc

Welded titanium tubing is supplied to the latest revisions of ASTM/ASME B 338 & ASTM/ASME B862 specifications, UT and Eddy-Current Tested. Please inquire for exact dimensional capabilities based on O.D. and Wall Requirements.

Product Name

Titanium welded tube/ pipe

Standard

ASTM/ASME B 338 & ASTM/ASME B862

Material

Pure titanium

Gr1 Gr2 etc.

Alloy titanium

Gr.7(Ti-0.2Pd)

Gr.9(Ti-3Al2.5V)

Gr.11(Ti-0.2Pd )

Gr.12(Ti-0.3Mo-0.8Ni)

Gr.16(Ti-0.05Pd )

Size

OD>114.3mm,length is 12000mm(Max)

Type

Round, square, coiling

Technique

Hot forging, hot rolled, cold rolled

Goods Condition

Annealed

Surface

Mainly is sand blasting, the Polishing and pickling is also do as customers requested.


Fe max

O max

N max

C max

H max

Pd

Al

V

Mo

Ni

Elong'n

Rp 0.2

Rm

No

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

%

MPa

MPa

Grade 1

0.2

0.18

0.03

0.1

0.015

24

170-310

240

Grade 2

0.3

0.25

0.03

0.1

0.015

20

275-450

345-480

Grade 7

0.3

0.25

0.03

0.1

0.015

0,12-0,25

20

275-450**

345

Grade 9

0.25

0.15

0.02

0.05

0.015

2,5-3,05

15

550

650

Grade 12

0.3

0.25

0.03

0.1

0.015

0.3

0.8

25

414-460

499-600

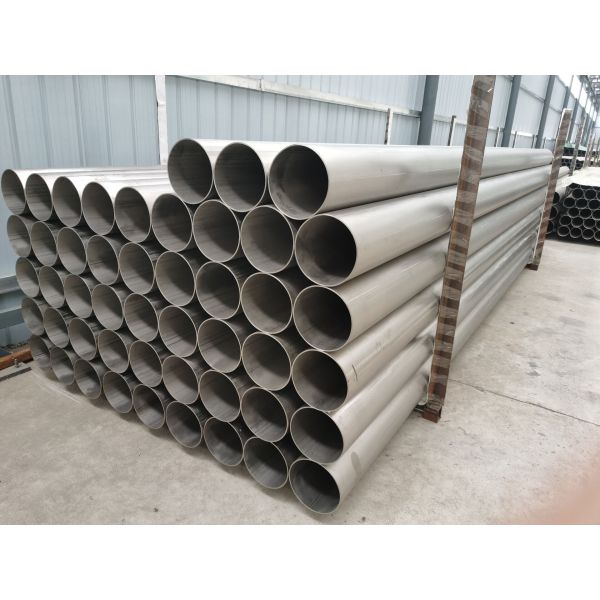

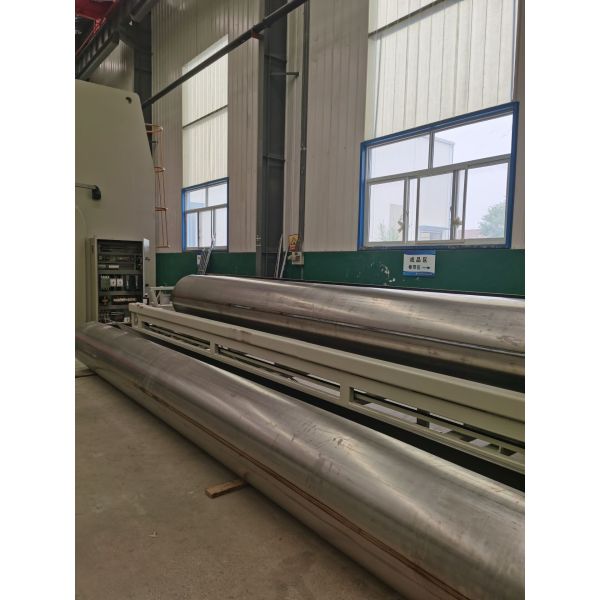

Detailed images:

ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling SurfaceASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface

ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface

ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface

The third party testing report:

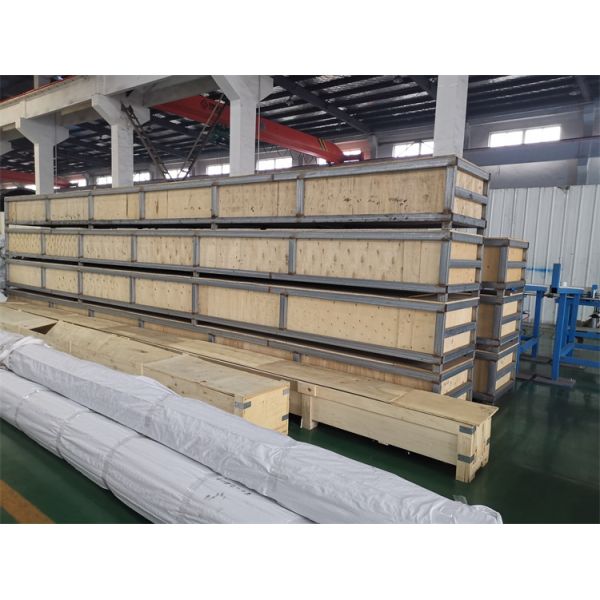

Packaging and shipping:

Over 15 years experience in titanium production and export

Ensure the goods arrive at the customer's port in perfect condition

Standard export packaging, inside the foam film protection, outside plywood case

ASTM B862 Gr7 Gr12 Titanium Welded Pipe Pickling Surface
