Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Specifications
Brand Name :
LHTi
Model Number :
LH-Ti2
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
L/C,D/P, T/T etc.
Supply Ability :
20000 pieces per month
Delivery Time :
15-30 Days
Packaging Details :
Standard export packing,plywood case outside
Product name :
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
Material :
Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni)
Standard :
ASTM/ASME B265,ASTM/ASME B381
Diameter :
50-2500mm
Thickness :
Max 150mm
Process :
Forging
Quality test :
UT,PT
Third-party testing :
Available
Description

Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment

1. Titanium Forged Disc:

Product name Industry use Titanium disc disk ring titanium forging ring
Dimension OD(Max 1300 mm) ×H (max length 300mm)
Grade Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) etc.
Standard ASTM B381, ASME SB381
Density 4.51g/cm3
Certification ISO 9001:2015 & Gold suppier on ALIBABA, Material Mill Test Report
Technique Die forging or flat-die forging +CNC machining
Shape Disc/disk , ring
Type Titanium forging
Application Electroplating ;Chemical engineering & Petrochemical technology,oil drilling equipments,Aircraft Frame etc.

2. Physical Properties:

Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18

3. Tolerance of titanium forging ring as per ASTM B381:

Grade

Gr1 Gr2 Gr5 Gr7 Gr9 Gr12

 OD(mm) Tolerance(mm) Height Tolerance(mm)
100-300 -1/+3 <50 -0/+2
300-600 -2/+3 50-200 -1/+3
600-1000 -3/+5 200-300 -2/+4

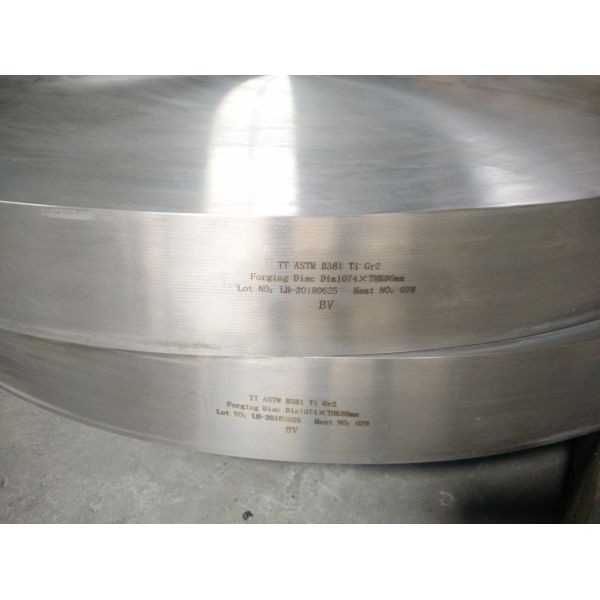

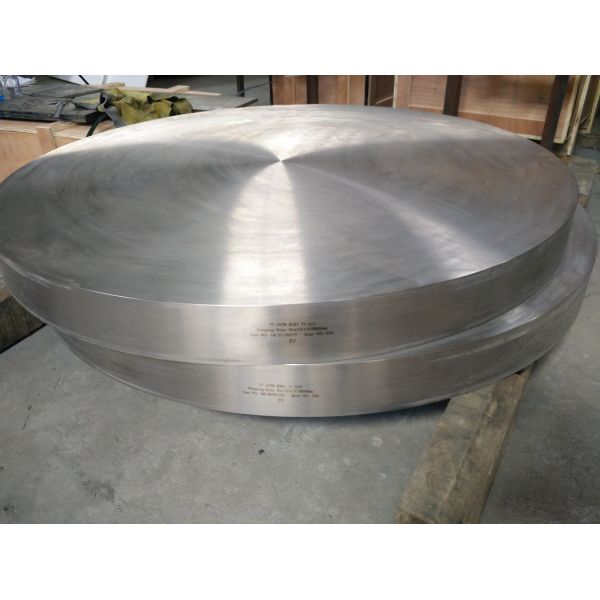

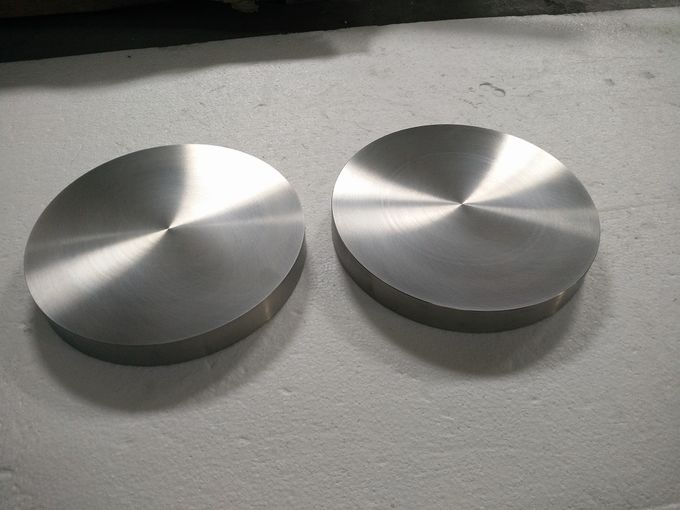

Detailed pictures of titanium disc:

Forging Gr7 Titanium Disc Dia 3000mm For Chemical EquipmentForging Gr7 Titanium Disc Dia 3000mm For Chemical EquipmentForging Gr7 Titanium Disc Dia 3000mm For Chemical EquipmentForging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment

Quality control:

1.The forging disc surface of titanium alloy is smooth and smooth, with CNC machine adding cotton. The surface is free of any pollution, scratch, scratch, grinding, dent or any other defects.

2.100% UT test before delivery

3.Provide En10204/3.1 quality certificate with chemical composition and physical properties before delivery

Packaging and shipping:

Standard export packaging, any damage is not allowed to the goods, to ensure that the goods received by customers are perfect and clean. Choose the best transportation plan for customers.

About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.Our advantagous products is titanium forgings(titanium disc,

titanium ring, titanium flange) .With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Welcome to contact!
