Gr5 F136 Ti6Al4vELI Titanium Rod Medical Usage Polished Surface
Gr5 F136 Ti6Al4vELI Titanium Rod Medical Usage Polished Surface
Gr5 F136 Ti6Al4vELI Titanium Rod Medical Usage Polished Surface
Gr5 F136 Ti6Al4vELI Titanium Rod Medical Usage Polished Surface
Specifications
Brand Name :
LHTI
Model Number :
titanium rod
Certification :
ISO 9001-2015
Place of Origin :
China
MOQ :
10kg
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5 tons per month
Delivery Time :
10- 15 days
Packaging Details :
plywood case or as clients require
Grade :
GR23/GR5ELI
Usage :
Medical
surface :
polished
length :
3000mm
diameters :
2mm,3mm,4mm,5mm,6mm
MOQ :
10KG
Delivery time :
15 days
Test report :
YES
Package :
plywood case
Description

Gr5 F136 Ti6Al4vELI Titanium rod medical usage

1. Product description

Due to the special properties of titanium, such as non-magnetic and affinity with human organs, titanium is widely used in the medical field, human bones and implants.From material selection to processing, in strict accordance with the medical standard ASTM F136,

Process: select grade 0 sponge titanium, cast titanium ingots three times, then high-temperature up-draw forging bar stock, hot-rolled or cold-drawn to the required bar stock size, and then heat treated and straightened. Polish the surface. Using non-destructive testing (UT), finishing and polishing to the finished bar

Product use: Mainly used for joints, spine and other human orthopedic implants and related surgical instruments, etc.

2. Parameter performance

1 Main chemical composition Ti,Al,V
2 Impurities Fe,C,N,H,O
3 Chemical formula Ti6Al4V ELI
4 tensile strength ≥830mpa
5 Yield Strength ≥760mpa
6 Elongation after breaking ＞10%
7 rate of reduction in area ＞15%

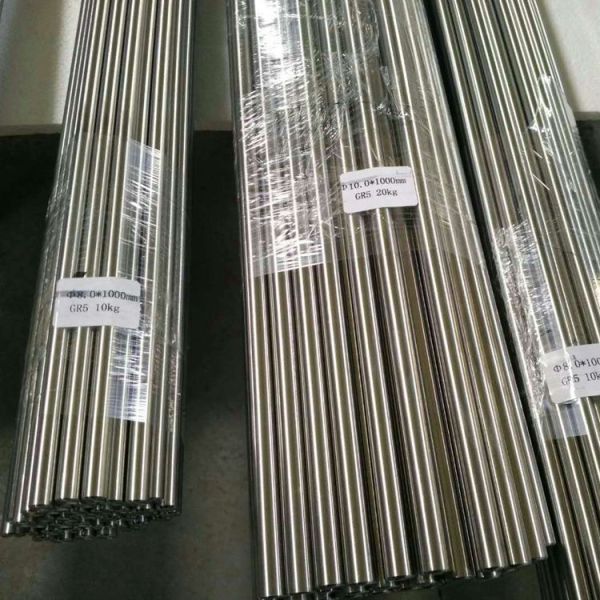

3. Images

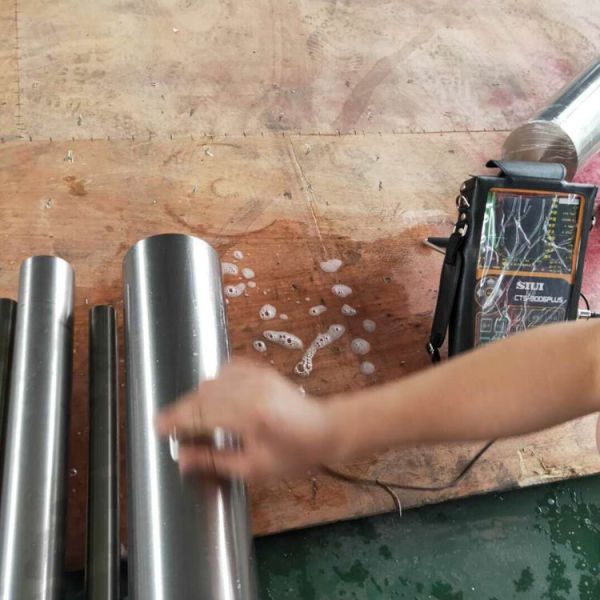

4.Test
