Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface
Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface
Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface
Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface
Specifications
Brand Name :
LIHUA
Model Number :
titanium rod
Certification :
ISO9001
Place of Origin :
Baoji, China
MOQ :
50kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 kgs per month
Delivery Time :
10-15 work days
Packaging Details :
Plywood box for export
Product name :
Aerospace 6al4v Titanium rod 5mm 6mm ISO9001 Polished surface
Standard :
AMS 4928 AMS 6931
Application :
Aerospace
Shape :
round，square， hex
Length :
3000mm
Surface :
Bright
MOQ :
50KG
Test :
100% UT
Description

Aerospace 6al4v Titanium rod 5mm 6mm ISO9001 Polished surface

Material: GR5 Ti-6Al-4V
Specification: titanium rod φ6mm ～ φ30mm × L (rolling)

titanium rod φ30mm ～ φ400mm × L (forging)
Supply status: Annealing (M)
Executive standard: AMS 4928

Test:100% ultrasonic flaw detection,physical performance, mechanical performance and high-magnification metallographic testing, and issue testing report

Physical Properties

Physical Properties
Tensile Strength(min) Yield Strength(min) Elongation(%)
MPa MPa
Grade 5 895 828 10
Grade 7 345 275 20
Grade 9 620 483 15
Grade 12 483 345 18
Grade 23 828 759 10

Chemical Composition

Titanium Bar
Grade Ti Al V Nb Fe, max C, max N, max H, max O, max
Gr5 Bal 5.5-6.75 3.5-4.5 0.3 0.08 0.05 0.015 0.20
Gr5 ELI
Ti-6Al-4VELI		 Bal 5.5~6.5 3.5~4.5 0.25 0.08 0.05 0.012 0.13
Ti-6Al-7Nb Bal 5.5-6.5 / 6.5-7.5 0.25 0.08 0.08 0.009 0.20

Tolerance

Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

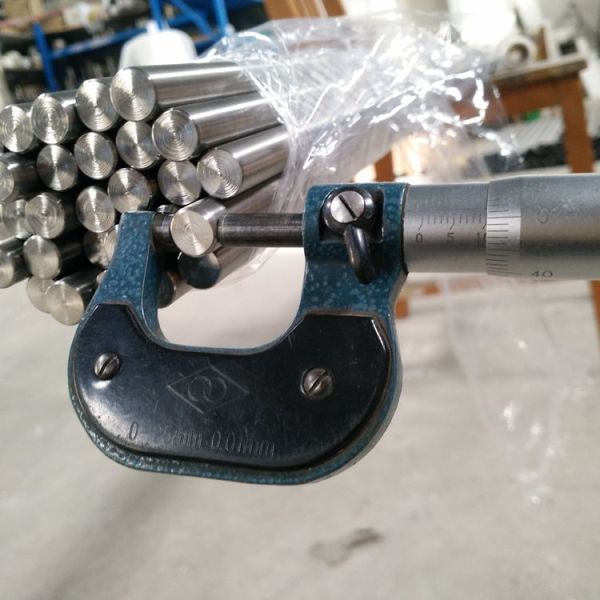

Images

Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface
