ErTi2 Titanium Welding Wire
ErTi2 Titanium Welding Wire
ErTi2 Titanium Welding Wire
ErTi2 Titanium Welding Wire
ErTi2 Titanium Welding Wire
ErTi2 Titanium Welding Wire
Specifications
Brand Name :
LHTi
Model Number :
LHTI-041
Certification :
ISO9001
Place of Origin :
Baoji City Shaanxi Province China
MOQ :
100kg
Price :
USD35-45 per kg
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5Ton per month
Delivery Time :
7-30work days
Packaging Details :
5kg put into plastic tube inside and plywood case outside Or as the clients' request
Standard :
AWS 5.16
surface :
Pickling surface/bright surface
application :
GTAW
Type :
straight / spool / coil
Certificate :
ISO9001:2015
Technique :
Cold Rolling
Grade :
Gr12 (Ti-0.3Mo-0.8Ni)
Advantage :
Hot Resistance
Description

1.2mm 1.6mm 2.0mm 2.4mm ErTi1 ErTi2 ErTi5 ErTi7 titanium welding wire

ERTi-2 titanium welding wire Application Fields:

• Welding field

• Aerospace

• Electronic product welding

• Metal welding

• Titanium product welding

ERTi-2 titanium welding wire has a series of excellent properties unmatched by other metal materials, so it has developed rapidly in recent years and has been rapidly and widely used in high-tech fields such as the aerospace military. All countries in the world attach great importance to the research and development of titanium alloys, and constantly develop new titanium alloy materials to expand the application of titanium and titanium alloys.

2. ERTi-12 Titanium wire parameter information

Grade Contrast

China America Russia Japan
TA1

Industrially Pure Titanium

 GR1 BT1-00 TP270
TA2 GR2 BT1-0 TP340
TA3 GR3 TP450
TA4 GR4 TP550
TA8 Ti-0.05Pd GR16
TA9 Ti-0.2Pd GR7 TP340Pb
TA10 Ti-0.3Mo-0.8Ni GR12
TA18 Ti-3Al-2.5V GR9 0T4-1B TAP3250
TB5 Ti-15V-3Al-3Gr-3Sn Ti-15333
TC4 Ti-6Al-4V GR5 BT6

TAP6400

Common Titanium Wires Tolerance
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.

Titanium Grade 12 (Ti-0.3Mo-0.8Ni ) welding wire
Chemical compositions(weight%,<=)
Mo Ni V Fe C
0.3 0.8 ---- 0.047 0.03
N H O Other(total) Ti
0.009 0.002 0.117 0.4 Remainder
Physical properties(>=)

Σb

Tensile Strength

(Mpa)

σr0.2

Yield Strength

(Mpa)

δL0+50mm

Elongation

(%)

ψ

Reduction of area

(%)
508 378 18 25

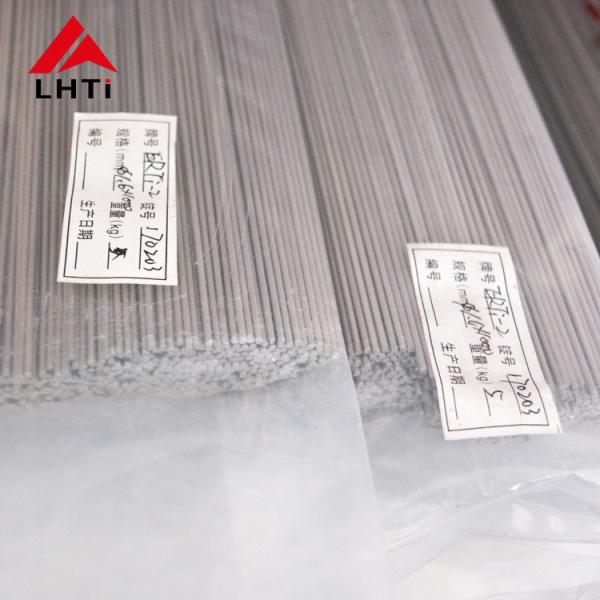

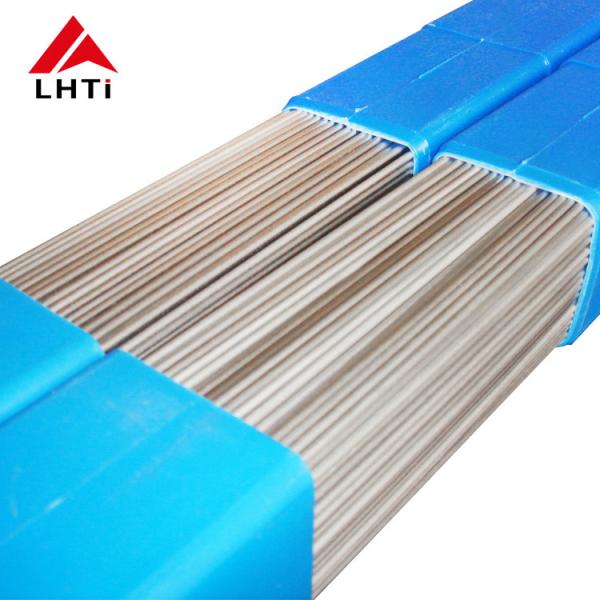

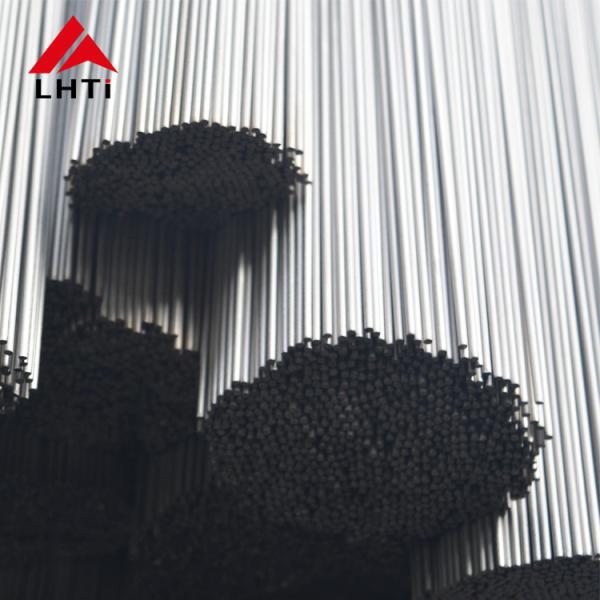

3. Details picture

Titanium AWS 5.16 Gr12 (Ti-0.3Mo-0.8Ni) ERTi-12 alloy welding Filler Rod for MIG GTAW

There are two surface : Acid washed and polished

ErTi2 Titanium Welding Wire

ErTi2 Titanium Welding Wire
