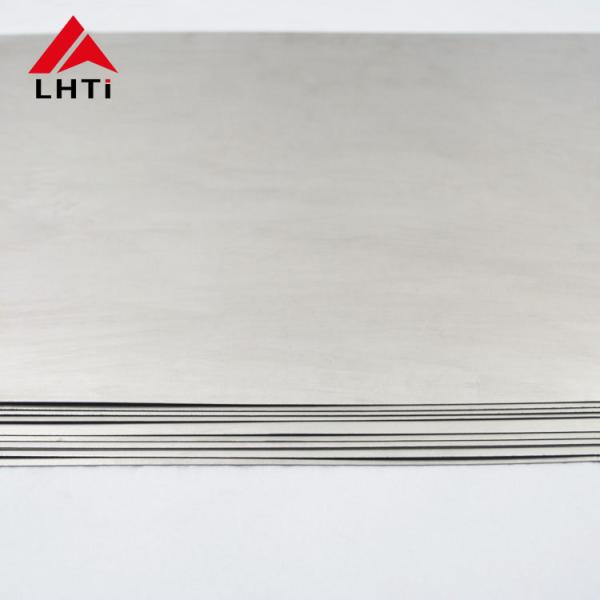

Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
50 kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
200000 kg per month
Delivery Time :
7-20 work days
Packaging Details :
Plywood box with soft foam for additional protection
Standard :
ASTM B265
Technology :
Cold rolled
Shape :
Straight
Surface :
Polished, Acid Washing
size :
0.7mm*1000mm*2000mm
Description

Gr5 Flat Titanium Metal Sheet 0.7mm Thickness

Product Information

1. Plate quality: GR5 titanium alloy plate

2. Specification: about 1000 length, 2000 width, and plate with thickness *1m*2m

3. Executive standard: AMS4911, etc.

4. Titanium plate features: low density, light texture, high temperature resistance, corrosion resistance, high tensile strength of titanium alloy plate, good mechanical properties

5. Application: widely used in electric power, chemical industry, ship, military industry, aviation, medical treatment, electroplating, petroleum exploitation and other fields.

6. Quality assurance: the company has a strict inspection of the quality of titanium plate and mature processing technology (such as chemical composition, mechanical properties, metallographic structure, tolerance, flaw detection) shipping can be issued to customers material certification, products through ISO9001 certification.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

Cold Rolled Polished Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
