Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Corrosion Resistant Stainless Steel Capillary Tube , Super Duplex 2507 Pipe
Specifications
Brand Name :
MEILONG
Model Number :
1/2'' OD x 0.065'' WT
Certification :
ISO9001:2015, PED 97/23/EC
Place of Origin :
China
MOQ :
10000 feet
Payment Terms :
L/C, T/T
Supply Ability :
150000 meters per month
Delivery Time :
10 days (for our required MOQ)
Packaging Details :

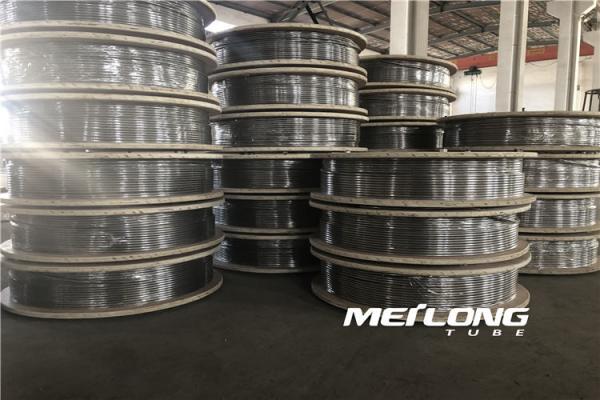

Level wound coiled on wooden spool, and wooden case packing
Material :
Super Duplex 2507 comply with NACE MR0175/ISO15156
Tube type :
Seamless
Condition :
Bright annealed
Length :
Up to 10000 meters long per reel
Qualification :
Hydrostatic tested
Application :
Oil and gas fields, Geothermal, Umbilical
Price :
Negotiable
Description

Super Duplex 2507 Seamless Capillary Tubing For Umbilicals

Super Duplex 2507 material provides excellent corrosion resistance in chloride-containing environments.

All Super Duplex 2507 control line tubing offered by MEILONG are made from a controlled-chemistry. Alloy 2507 material with minimum pitting resistance equivalent (PRE) value of 42.5

Size include 1/4’’, 3/8’’, 1/2’’, 5/8’’, 3/4’’, and 1 in. outside diameter.

Tubing nominal wall thickness meets ASTM A-789

Tube markings include size, material type/grade, specification, heat number, and other information.

Quality Assurance

Eddy current test (ECT)

Ultrasonic test

Hydrostatic test

Chemical composition analysis

Tensile test

Hardness test

Dimension & visual inspect

Metallographic analysis

Super Duplex 2507, Chemical composition

Element Composition, %
Chromium 24.0-26.0
Nickel 6.0-8.0
Molybdenum 3.0-5.0
Manganese 1.2 max.
Silicon 0.8 max.
Carbon 0.030 max.
Sulfur 0.020 max.
Phosphorous 0.035 max.
Nitrogen 0.24-0.32

Application: Super duplex alloy combining excellent strength with good corrosion resistance in high chloride and seawater environments

Tensile strength, min.: 116ksi (800MPa)

Yield strength, min.: 80ksi (550MPa)

Elongation in 2 in., min.: 15%

Hardness, max.: Brinell 310, or Rockwell C 32

Coiled Tubing Size

Imperial size Metric size

OD

inch

WT

inch

OD

mm

WT

mm
1/8 (0.125) 0.028 3.18 0.71
0.035 3.18 0.89
3/16 (0.188) 0.028 4.76 0.71
0.035 4.76 0.89
0.049 4.76 1.24
1/4 (0.250) 0.035 6.35 0.89
0.049 6.35 1.24
0.065 6.35 1.65
0.083 6.35 2.11
3/8 (0.375) 0.035 9.53 0.89
0.049 9.53 1.24
0.065 9.53 1.65
0.083 9.53 2.11
1/2 (0.500) 0.035 12.7 0.89
0.049 12.7 1.24
0.065 12.7 1.65
0.083 12.7 2.11
5/8 (0.625) 0.049 15.88 1.24
0.065 15.88 1.65
0.083 15.88 2.11
3/4 (0.75) 0.065 19.05 1.65
0.083 19.05 2.11
1 0.065 25.4 1.65
0.083 25.4 2.11

Tubing length up to 32,808 feet (10,000 m)

For control line, chemical injection line, umbilicals

Available materials

Austenitic: 316L

Duplex: S31803, S32205

Super Duplex: S32750

Nickel alloy: N06625, N08825

Norm Equivalence

Grade UNS No Euro norm Japanese
No Name JIS
Alloy ASTM/ASME EN10216-5 EN10216-5 JIS G3463
316L S31603 1.4404, 1.4435 X2CrNiMo17-12-2 SUS316LTB
2205 S31803 1.4462 X2CrNiMoN22-5-3 SUS329J3LTB
2507 S32750 1.4410 X2CrNiMoN25-7-4
625 N06625 2.4856 NiCr22Mo9Nb
825 N08825 2.4858 NiCr21Mo
