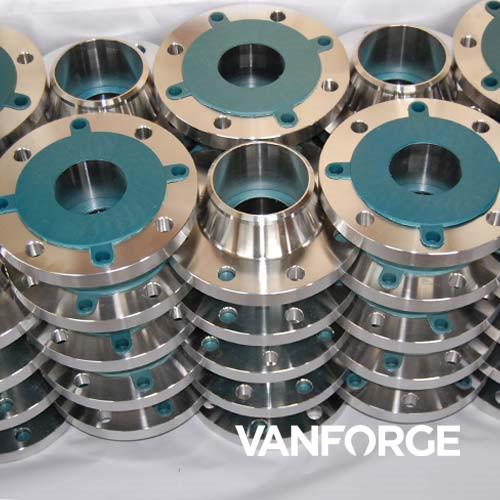

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

EN 1092-1 type 11 DIN 2632 ASME SA182 PN10 forged stainless steel welding neck flange

Stainless welding neck flanges according to EN

Stainless steel welding neck flanges PN 10, 16 and 40 according to EN 1092-1 latest edition, type 11B1 (3.2-6 Ra max.) annealed, fully machined. Base material according to EN 10222-5/ASTM/ASME A/SA 182.

EN 1092-1 type 11 DIN 2632 ASME SA182 PN10 forged stainless steel welding neck flange

Vanforge's EN welding neck flanges are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless welding neck flanges are certified according to EN 10204/3.1.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange

Welding neck flanges PN 10

EN 1092-1, type 11 (replaces DIN 2632)

Material EN 1.4404 (ASTM 316L)

Product code example:

FFWN-316L-273-PN10

● = Standard

Pipe

d1

D

b

k

h1

d3

s

r

h2

d4

f

Drilling template

Weight

ASTM
DN mm mm mm mm mm mm mm mm mm mm mm Holes Thread d2 kg/pce 316L
200
250
300		 219.1
273.0
323.9		 340
395
445		 24
26
26		 295
350
400		 62
68
68		 235
292
344		 5.9
6.3
7.1		 10
12
12		 16
16
16		 268
320
370		 3
3
4		 8
12
12		 M 20
M 20
M 20		 22
22
22		 11.6
15.8
18.3		 ●
●
●
400
500		 406.4
508.0		 565
670		 26
28		 515
620		 72
75		 440
542		 7.1
7.1		 12
12		 16
16		 482
585		 4
4		 16
20		 M 24
M 24		 26
26		 30.6
40.5		 ●
●

Production facilities:

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange

PN10 Forged Forged Stainless Steel Flanges , Flat Face Weld Neck Flange
