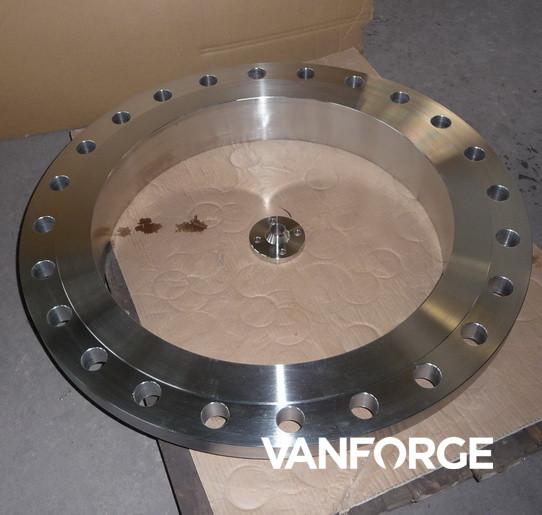

DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

EN 1092-1 DIN 2527 ASME SA182 PN40 forged stainless steel blind flange

Stainless steel blind flanges PN 10, 16 and 40 according to EN 1092-1 latest edition, type 05/A. Base material according to EN 10222-5/ASTM/ASME A/SA 182, fully machined.

Vanforge's blind flanges according to EN are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless blind flanges are certified according to EN 10204/3.1.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion

Blind flanges PN 40

EN 1092-1, type 05/A (replaces DIN 2527/B)

Material EN 1.4404 (ASTM 316L), fully machined. Prematerial according to EN 10222-5.

Example of code used when ordering:

Product code example:

● = Standard

DN

D

b

k

Drilling template

d2

Weight

ASTM
mm mm mm Holes Thread mm kg/pce 316L
15 95 16 65 4 M 12 16 0.81 ●
20 105 18 75 4 M 12 18 1.14 ●
25 115 18 85 4 M 12 18 1.38 ●
32 140 18 100 4 M 16 18 2.03 ●
40 150 18 110 4 M 16 18 2.35 ●
50 165 20 125 4 M 16 20 3.20 ●
65 185 22 145 8 M 16 22 4.29 ●
80 200 24 160 8 M 16 24 5.54 ●
100 235 24 190 8 M 20 24 7.60 ●
125 270 26 220 8 M 24 26 10.80 ●
150 300 28 250 8 M 24 28 14.60 ●
