Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 3000LBS MSS SP-97 forged pipe fitting stainless steel butt welding outlet

ASTM A182 3000 lbs MSS SP-97

Vanforge holds a large type of stainless forged, socket welding outlets in F304/304L and F316/316L (dual marked). Huahon's socket welding outlets are certified according to EN 10204/3.1.

Vanforge's ASME forged, socket welding outlets are white pickled with hardness according to NACE MR0175, IC according to ASTM A262E and PMI tested.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L

Butt welding outlet

ASTM A182 3000 lbs MSS SP-97

Note: final adjustment on run pipe sizes to be made on site.

(Generally the outlets are stocked with 1/4-1 in. larger run pipe sizes).

Product code examples:

FBOR-316L-3/4-40S
FBOR-304L-1-80S

Available standard: ● = Sch 40S, ▲ = Sch 80S

Branch

Weight

ASTM

ASTM
Size D1 ~kg/pce 304/304L 316/316L
1/2"
3/4"
1"		 0.10
0.17
0.25		 ●/▲
●
●/▲		 ●/▲
●/▲
●/▲
1 ¼"
1 ½"
2"		 0.40
0.46
0.75		 ●/▲
●
●/▲		 ●/▲
●/▲
●/▲

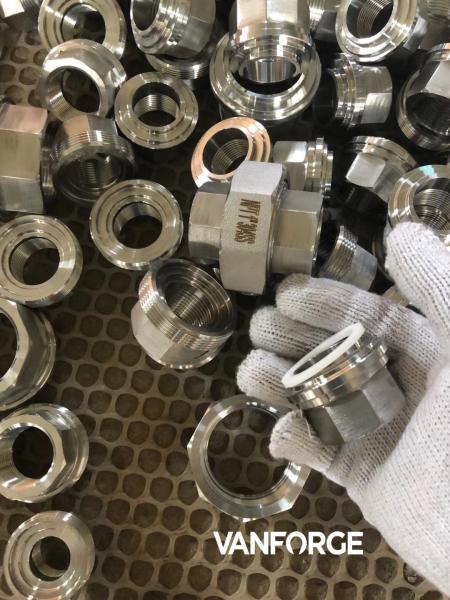

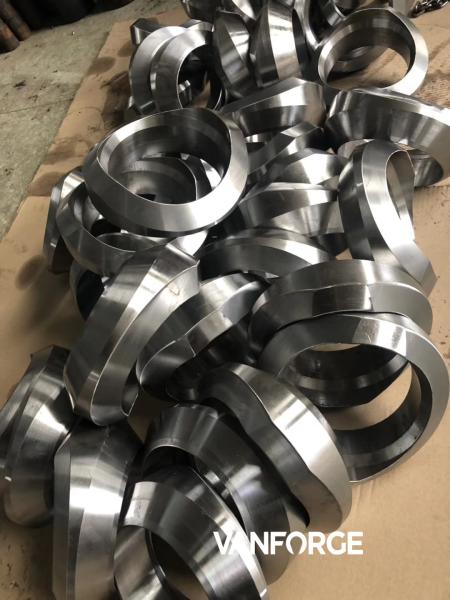

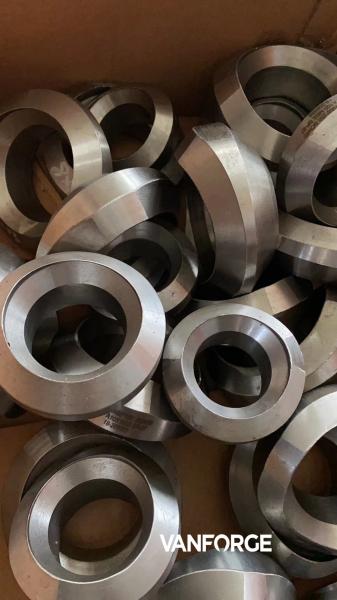

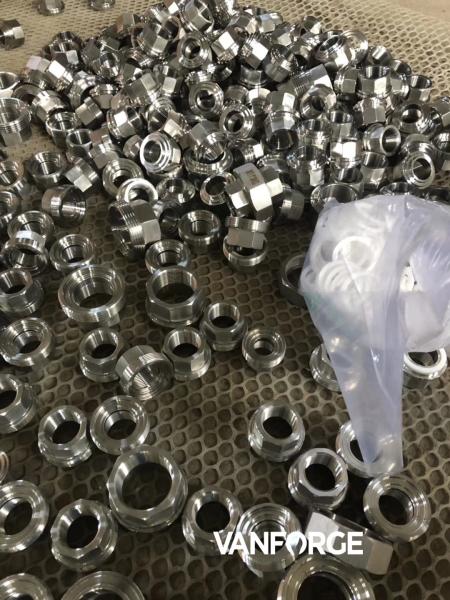

Production facilities:

Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L

Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L

Butt Welding Outlet ASME Forged Steel Pipe Fittings F304/304L F316/316L
