Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 3000LBS ASME B16.11 BS3799 forged pipe fitting stainless steel NPT threaded reducing coupling

Forged NPT-threaded fittings according to ASME

Vanforge holds a large type of stainless forged, threaded fittings in F304/304L and F316/316L (dual marked). The forged, threaded fittings are according to ASTM A182, ASME B16.11. Unions are according to MSS SP-83.

Vanforge's ASME 3000 lbs, threaded fittings are white pickled with hardness according to NACE MR0175, IC according to ASTM A262E and PMI tested.

Vanforge's forged, threaded fittings are certified according to EN 10204/3.1.

Threads

The threaded fittings are supplied with NPT threads (type C), standardized under ANSI/ASME B120-1. The internal and external threads are tapered.

Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads

ANSI/ASME B1.201

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads

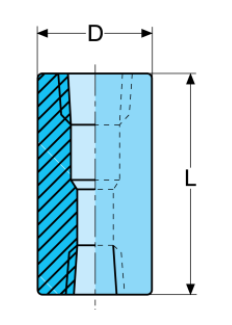

NPT-threaded reducing coupling

Reducing couplings

Example of code used when ordering:

FTRCO-316L-1/2-1/4-3000

● = Available

Nominal pipe size

L

D

Weight

ASTM
in. mm mm ~kg/pce 316L
1/2 x 1/4
3/4 x 1/2
1 x 1/2
1 x 3/4		 47.6
50.8
60.3
60.3		 28.6
34.9
44.5
44.5		 0.14
0.20
0.40
0.40		 ●
●
●
●
1 1/4 x 1
1 1/2 x 1
1 1/2 x 1 ¼
2 x 1 ½		 66.7
79.4
79.4
85.7		 57.2
63.5
63.5
76.2		 0.70
1.00
1.10
1.90		 ●
●
●
●

Production facilities:

Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads

Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads

Austenitic / Duplex Forged Steel Pipe Fittings Reducing Couplings With NPT Threads
