Specifications
Place of Origin :
Shandong, China
Brand Name :
yuantai derun
Model Number :
K9, K8, C40, C30, C25, etc.
Packaging Details :
PVC bag cloth with cable tie or as requirements.
Supply Ability :
50000 Ton/Tons per Month
Price :
$800.00/Tons 1-9 Tons
Certification :
ISO
MOQ :
1 Ton
Payment Terms :
L/C T/T (30% Deposit)
Delivery Time :
8-14 days
Length :
6m, cut to 5.7m.In general
Standard :
ISO2531, EN545 , EN598.
Application :
Water supply project, sewage, water pipeline.
Shape :
Round
Hardness :
Full hard
Pipe Wall Thickness :
K9, K8, C40, C30, C25, etc.
Pull Strength :
≤230HB
Yield (≥ MPa) :
≥300Mpa
Material :
Ductile Iron
Type :
Casting, Welded,T-type, Restrained
Processing Service :
Welding, Bending, Punching, Decoiling, Cutting
Internal coating :
Mortar Cement Lining
Joint Type :
Self-Restrained
Keyword :
Ductile Iron Pipe
Color :
Black
Surface treatment :
Anti-corrosion Coated
External Coating :
Zinc + Bitumen Painting
Technical standard :
EN10210
Usage :
Water Systerm
Port :
QingDao,ShangHai,TianJin
Description

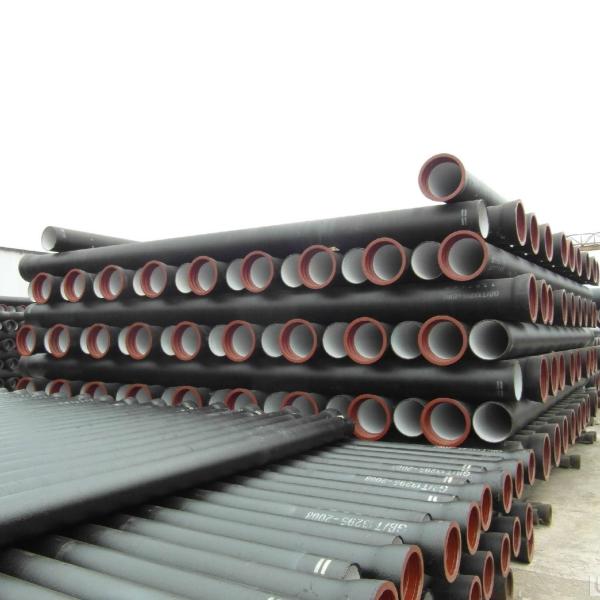

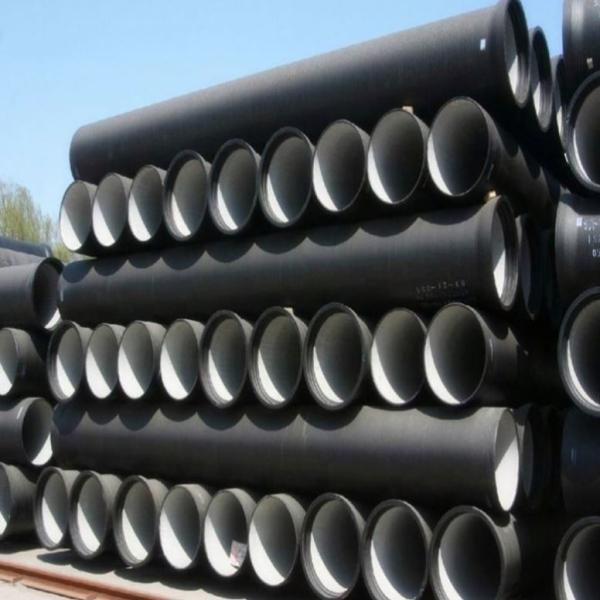

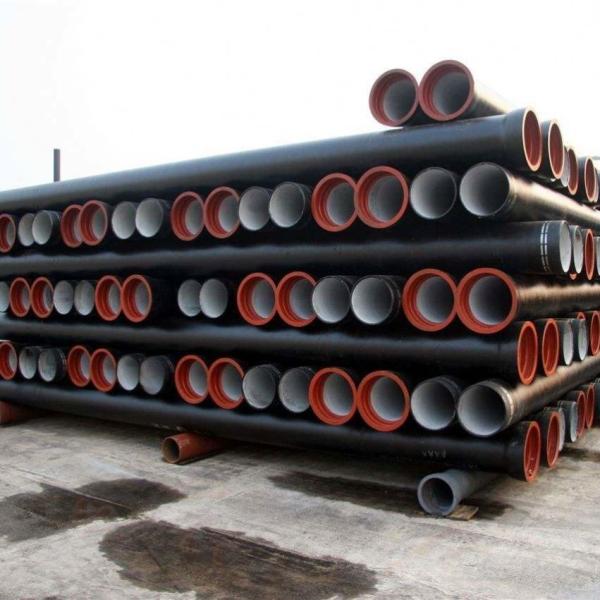

DN400 Ductile Cast Iron Pipe

Ductile iron pipe is a new product developed on the basis of gray cast iron pipe. Through spheroidizing and annealing process, the mechanical properties of cast iron are greatly improved. The following is the performance comparison of ductile iron pipe, gray cast iron pipe and steel pipe.
Product
Ductile Iron Pipe
Length
6m, cut to 5.7m.In general,
the pipe length is 6m for bulk shipment and 5.7m for container shipment.
Pipe class
K9, K8, C40, C30, C25, etc.
Standard
ISO2531, EN545 , EN598.
Pipe joint
Push-on joint(Tyton joint), K type joint, self-restrained joint
Material
Ductile Cast Iron GGG50
Pressure
PN10, PN16, PN25,PN40
Internal Coating
a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
External Coating
a). zinc+bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy +liquid epoxy painting
Packing
Bundled with steel belts or in bulk
Application
Water supply project, drainage, sewage, irrigation, water pipeline.
