201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
Specifications
Brand Name :
JinRuiHeng
Model Number :
201/202/304/304L/309s/310s
Certification :
ISO,SGS,Other
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 Tons/year
Delivery Time :
7-15 Days
Packaging Details :
Standard Shipping Packing
Material Types :
201, 202, 304, 316L Stainless Steel
Type :
Alloy Carbon Structure Angle Bar
Application :
Structural, Construction, and Industrial Uses
Thickness :
3mm to 14mm
Length :
Customer's Request
Shape :
L-Shaped Angle Bar
Width :
Customizable or standard lengths (e.g., 6m, 12m)
Finish :
Mill Finish, Polished, or Brushed
Strength :
igh Tensile Strength
Package :
Standard Seaworthy Package
Description

201 202 304 316L Stainless Steel Angle Bar Alloy Carbon Structure Angle Bar Steel Stainless Steel Angles

201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure

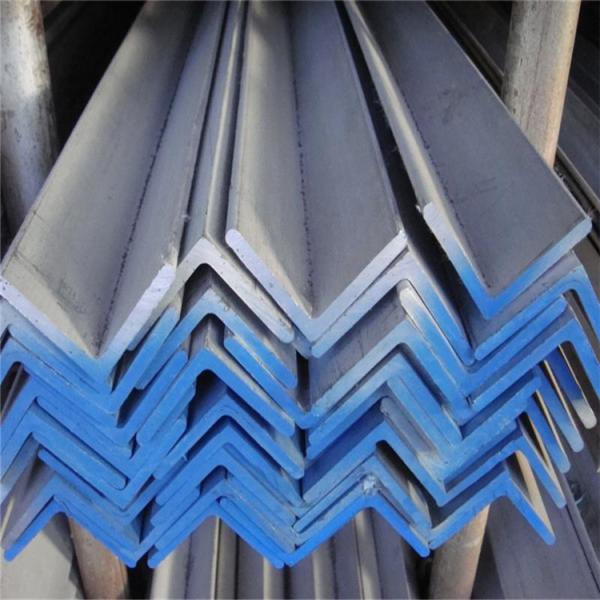

Stainless Steel Angle Bars:

Manufactured from high-grade SS201, SS202, SS304, and SS316L, these angle bars are designed for superior durability and resistance to corrosion. Ideal for structural and industrial applications, they come in various thicknesses from 3mm to 14mm and customizable lengths. These L-shaped angle bars meet international standards like ASTM, EN, and JIS, ensuring high tensile strength and long-lasting performance in demanding environments

Characteristics of Stainless Steel Angle

Stainless steel Angle has the following characteristics:

  1. Corrosion Resistance: Excellent resistance to rust and corrosion, making them suitable for outdoor and marine environments.
  2. Durability: High tensile strength and durability ensure long-lasting performance and structural integrity.
  3. Versatility: Suitable for a wide range of applications including construction, industrial, and architectural projects.
  4. Aesthetic Appeal: Sleek, polished finish provides a clean and attractive appearance.
  5. High Temperature Resistance: Maintains structural properties at high temperatures, ideal for demanding environments.
  6. Easy Maintenance: Requires minimal upkeep due to its resistance to staining and tarnishing.
  7. Customizable Sizes: Available in various thicknesses and lengths to meet specific project requirements.
  8. Standards Compliance: Meets international standards such as ASTM, EN, and JIS for quality and performance.
  9. Strength-to-Weight Ratio: Provides a strong and lightweight solution for structural support.
  10. Non-reactive: Does not react with chemicals or other substances, ensuring stability in diverse conditions.
  11. Precision Cutting: Available in accurately cut sizes to fit specific design and engineering needs.
  12. Environmental Impact: Recyclable material, contributing to sustainable practices.

Heat resistance ofStainless Steel Angle

Stainless steel angle bars generally exhibit excellent heat resistance, depending on the specific grade. Here’s an overview of their heat resistance characteristics:

  1. General Heat Resistance: Stainless steel angle bars can withstand temperatures up to approximately 870°C (1600°F) without significant changes in mechanical properties. This makes them suitable for many high-temperature applications.
  2. SS304: This grade offers good heat resistance and can perform well in temperatures up to around 870°C (1600°F). It maintains strength and durability at elevated temperatures.
  3. SS316L: Known for its superior resistance to heat and corrosion, SS316L can handle temperatures up to approximately 870°C (1600°F) while maintaining its mechanical properties. It is often used in more demanding applications.
  4. SS201 and SS202: These grades provide lower heat resistance compared to SS304 and SS316L. They are suitable for moderate temperature applications but may not perform as well under extreme heat conditions.
  5. Thermal Expansion: Stainless steel expands with heat, so allowances need to be made in designs where temperature fluctuations are expected.
  6. Oxidation Resistance: Stainless steels are resistant to oxidation at high temperatures, which helps in maintaining their structural integrity and appearance.
  7. Heat Treatability: Stainless steel angle bars cannot be heat treated to increase hardness, but they are designed to perform well under thermal stress in their as-rolled or as-fabricated condition.
  8. Stability: The material maintains its dimensional stability and strength at elevated temperatures, making it ideal for use in high-heat environments.

Stainless Steel Angle parameter

chemical composition

material 201
chemical composition C% Cr% Ni% Mn% Si% N% P% S%
≦0.15 16.0-18.0 3.5-5.5 5.50-7.50 ≦1.00 ≦0.25 ≦0.06 ≦0.030

chemical composition

material 202
chemical composition C% Cr% Ni% Mn% Si% N% P% S%
≦0.15 17.0 - 19.0 4.0-6.0 7.5-10.0 ≦1.00 ≦0.25 ≤ 0.06 ≦0.030

chemical composition

material 304
chemical composition C% Cr% Ni% Mn% Si% N% P% S%
≦0.08 18.0-20.0 8.0-10.50 ≤ 2.0 ≦1.00 ≦0.10 ≤ 0.045 ≦0.030

chemical composition

material 316L
chemical composition C% Cr% Ni% Mn% Si% N% P% S%
≦0.03 16.0-18.0 3.5-5.5 ≤ 2.0 ≦1.00 ≦0.10 ≤ 0.045 ≦0.030


Our advantage

FLEXIBILITY MISSION QUALITY SERVICE STABILITY
MOQ only 200KG, Sheet/Coil Being your trusted steel expert 100% quality guarantee, supporting the third-party inspection Fast Response, Fast shipping & Fast delivery Well-appointed machining equipments, Own logistics Long-term & stable material Inventory, Wide variety of material types & specifications

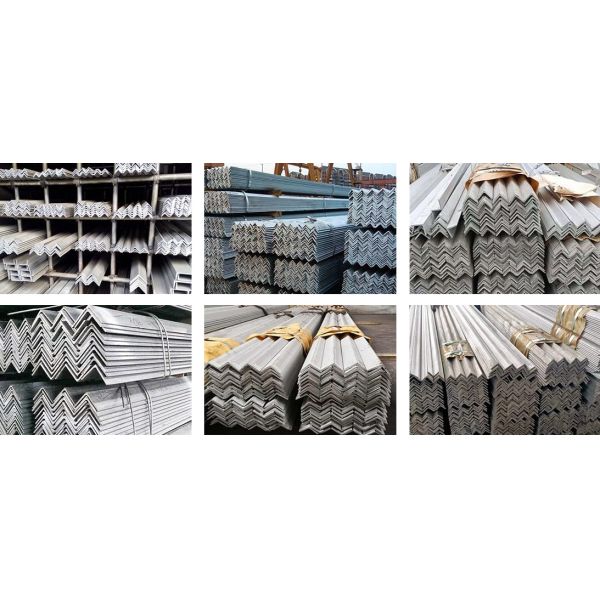

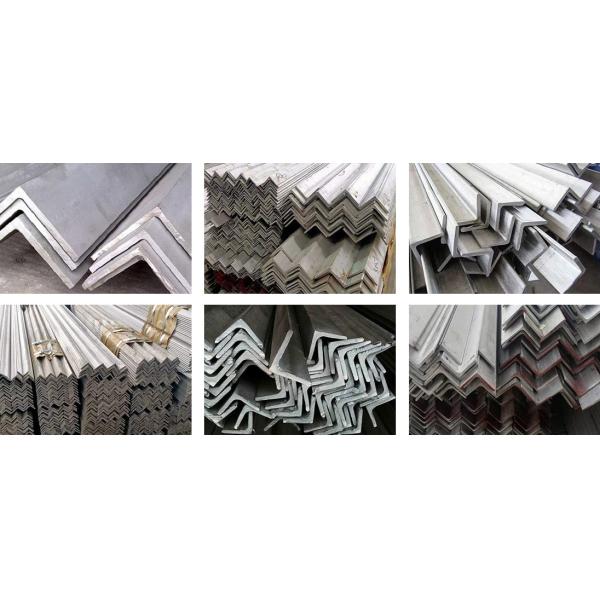

Product Inventory

Jiangsu Jinruiheng uses standard export transportation packaging, according to the size of the stainless steel plate binding steel belt. According to our shipping experience, a 20-foot container can hold 22 tons of stainless steel, and a 40-foot container can hold 25 tons of stainless steel. For larger orders, we ship by bulk carrier, which is cheaper. Packaging can also be customized according to customer needs.

201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure

Packing and Shipping:

DELIVERY SERVICE COMMITMENT:

The goods shall be delivered in strict accordance with the contract, and the consignee shall be notified within 48 hours after thegoods are delvered: Loading shall be carried out in strict accordance with the requlations. without overloading, bias and weiahtgathering

201 202 304 316L Alloy Carbon Stainless Steel Angle Bar Structure
