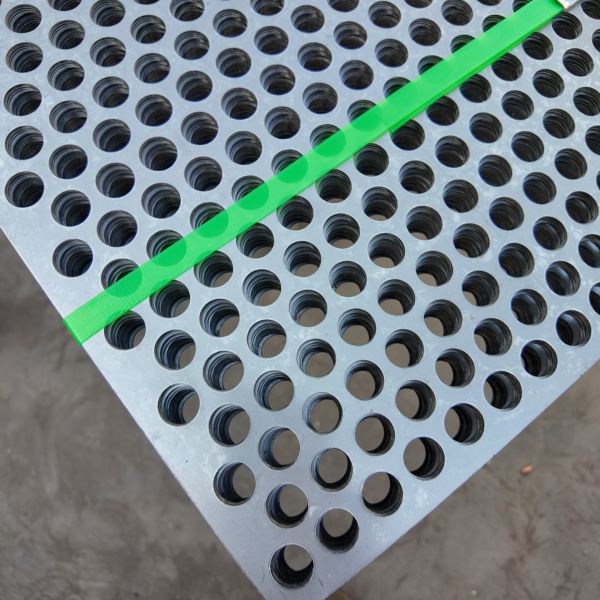

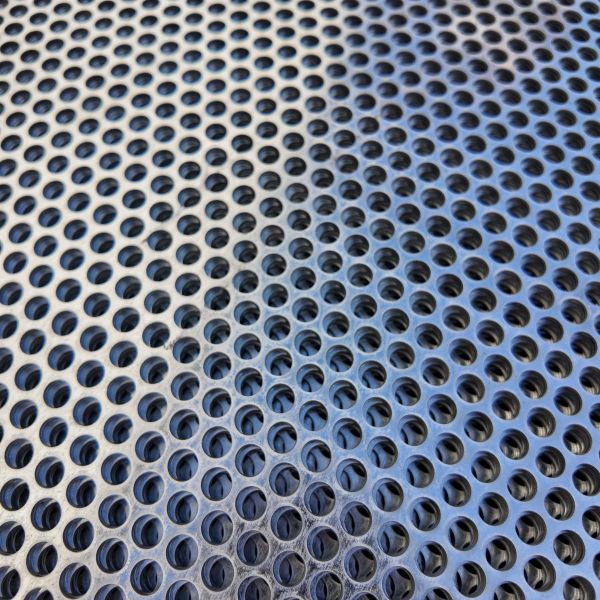

304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
304 Perforated Stainless Steel Sheet Customizable For Filtration
Specifications
Brand Name :
zhuoxin
Model Number :
1000*2000m
Place of Origin :
Made in China
MOQ :
Minimum order of 100 pieces
Price :
$4 to $200
Payment Terms :
MoneyGram,T/T,L/C
Supply Ability :
Produce 200 tons in 7 days
Delivery Time :
about 7 days
Packaging Details :
wooden pallets or wooden cases
Productname :
Stainless Steel Perforated Mesh
Keyword :
Perforated Mesh
Seuface Treatment :
Stainless Steel
Thickness :
0.5-6mm
Packing :
Pallet
Application :
filter
Size :
1000mm*2000mm/1250mm*2500mmor customized
Tolerance :
±5％
Optional Hole Patterns :
Staggered Arrangement，Straight Arrangement
Holesize :
0.5mm - 50mm
color :
Customizable on Request
Customization :
Available
Steel Grade :
304
Description

304 Stainless Steel Perforated Mesh - Customizable for Filtration

Filter Perforated Mesh - Product Details:

Mainly adopts 304/316 stainless steel, and supports customization of economical materials such as 201 stainless steel; 304 material is resistant to weak acid and alkali, suitable for conventional water treatment and food filtration; 316 material has stronger corrosion resistance, suitable for filtration scenarios in chemical industry and marine environment. 0.5mm - 20mm conventional hole sizes are optional, supporting customization of special-shaped holes (such as oblong holes, diamond holes), with hole size deviation ≤ ±0.05mm, meeting the precise screening needs of impurities of different particle sizes.


Stainless Steel Perforated Mesh Product Introduction Table:

Item Details
Material Steel, Galvanized Steel, Stainless Steel (304/316), Aluminum
Thickness 0.5–3mm
Sheet Size (Meter) 1.22*2.44m / 1.25*2.5m
Optional Hole Shapes Round, Square, Rectangular, Plum Blossom, Diamond, Cross, etc.
Product Features Smooth surface, Wind-resistant, Durable, Corrosion-resistant
Applications Filtration, Breeding, Craft making, Decoration, Basket processing,etc.
Architectural Infill panels, Sunshade, Cladding, Column covers, Metal signs, Fencing screens
Food & Beverage Grain dryers, Ventilation equipment, Baking trays, Coffee screens, etc.
Chemical & Energy Filters, Coal washing equipment, Mine cages, Battery separators, Centrifuges
Automotive Air filters, Radiator grilles, Flooring, Ventilation grilles, Engine ventilation devices, etc.
Construction Ceiling sound insulation, Acoustic panels, Stair treads, Pipe guards, Ventilation grilles
Buildings Building curtain wall mesh, Facades, Sunshades
Core Advantages & Highlights:
CNC punching process ensures uniform hole size, filtration efficiency up to 98% or more.The surface is smooth and non-fouling, impurities can be quickly removed by backwashing and ultrasonic cleaning, with high reuse rate, reducing long-term use costs.The mechanical properties of the sheet are stable after punching, not easy to collapse under high-pressure filtration conditions, ensuring the continuous operation of the filtration system.
Applicable Scenarios:

Tap water pretreatment, industrial wastewater filtration, swimming pool water circulation purification, seawater desalination pretreatment.Juice, edible oil and alcohol filtration, pharmaceutical raw material purification, complying with food-grade safety standards.Ore dressing screening, smelting waste gas filtration, slurry solid-liquid separation, improving product purity.Air compressor intake filtration, hydraulic oil filtration, equipment ventilation and dust removal filtration.
