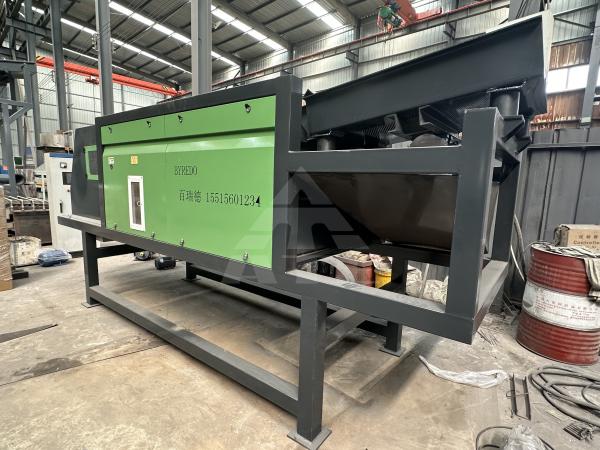

Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Specifications
Brand Name :
Xrido
Model Number :
Customizable
Certification :
CE ISO
MOQ :
1
Delivery Time :
5-30 word days
place of origin :
Henan, China
brand name :
Xrido
model number :
ESS-600-1600
type :
Magnetic Separator
warranty :
1 Year
material :
Export Wooden Packing
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine
weight (kg) :
2000 kg
Product name :
Eddy Current Separator Non Ferrous Metal Separator
Application :
Nonferrous separation
Machine type :
waste sorting machine
After Warranty Service :
Field Maintenance
Advantage :
Easy Operation High Efficiency
Raw material :
Ubran Waste Garbage
Separation rate :
98-99%
Function :
Garbage Recycling Sorting
Production Capacity :
2500-4500 KG/H, ≥20T/H
Voltage :
380V(can customized)
Condition :
New
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Other
Power :
26.7-79
Description
Products Description
An Eddy Current Separator works by utilizing high-strength magnetic forces that repel and eject non-ferrous metals. Examples of materials separated by an Eddy Current Separator include aluminum soda cans, aluminum foils in discarded packaging, and different sizes of scrap metal and wire from ASR and ICW automotive, appliance, and electronic recycling applications.
An Eddy Current Separator utilizing an eccentric magnetic rotor design mounts a smaller rotor in the top quadrant of the non-metallic shell. In this design, attracted magnetic material will move through a diminishing magnetic field until it ultimately reaches a point where it falls away from the belt. This ferrous metal then often discharges into the non-metallic fraction. But, even in this scenario, upstream magnetic separation is critical to minimize the amount of ferrous material coming in contact with the Eddy Current field.
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine


Product Paramenters
Model Flat belt conveyor(HP) entrance size (mm / in) Polar wheel drum(HP) workload (Kg) vibrating screen(HP) number of machines
X600 2 (1.5kW) or 3 (2.3kW) 600 / 23.6 in 7.5 (5.6kW) 400~800 1/2 2
X800 2 (1.5kW) or 3 (2.3kW) 800 / 31.5 in 10 (7.5kW) 500~1000 1/2 2
X1000 2 (1.5kW) or 3 (2.3kW) 1000 / 39.4 in 10 (7.5kW) 600~1200 3/4 2
X1200 2 (1.5kW) or 3 (2.3kW) 1200 / 47.2 in 10 (7.5kW) 700~1400 3/4 2
X1500 2 (1.5kW) or 3 (2.3kW) 1500 / 59 in 15 (11.3kW) 800~1600 1 2
X1800 2 (1.5kW) or 3 (2.3kW) 1800 / 70.9 in 15 (11.3kW) 1000~2000 1 2

Applications

• Electronic waste recycling: Separate valuable metals from electronic scrap.
• Automotive recycling: Recover non-ferrous metals from end-of-life vehicles.
• Metal shredding: Process shredded metal to extract valuable materials.




Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine
Nonferrous Metal Copper Dry Magnetic Separator Aluminum Cans Eddy Current Separator Machine

FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
