Specifications
Certification :
CE ISO TUV
Brand Name :
Xrido
Model Number :
Customizable
MOQ :
1 set
Delivery Time :
5-30 word days
place of origin :
Henan, China
brand name :
Xrido
model number :
AT-RDG1200
type :
Refuse Collector, solid waste sorting machine
warranty :
1 Year
material :
Wood Packing
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine
weight (kg) :
3000
Power :
Custom
Product name :
Trommel Screen Equipment For Municipal Waste Recycling Plant Sorting
Application :
Household waste city garbage construction waste various solid garbage
After Warranty Service :
Field Maintenance
Advantage :
Easy Operation High Efficiency
Separation rate :
70-90%
Bag break rate (%) :
60-90%
Production Capacity :
20-100(t/h)
Voltage :
380V(can customized)
Description

Factory Supply Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle

Products Description
20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle

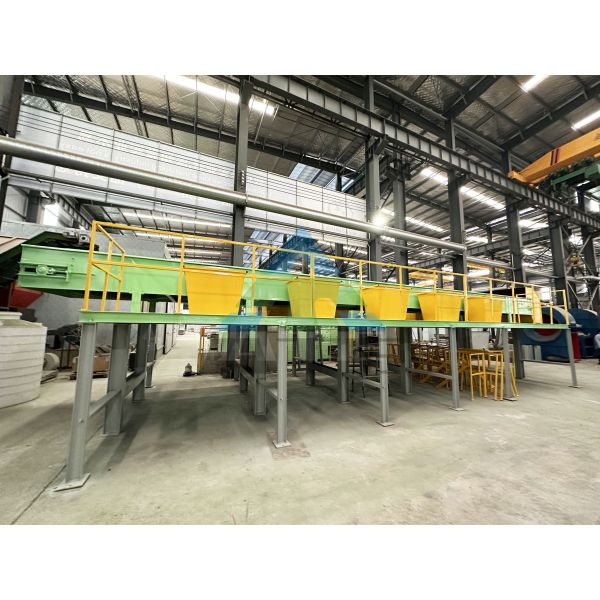

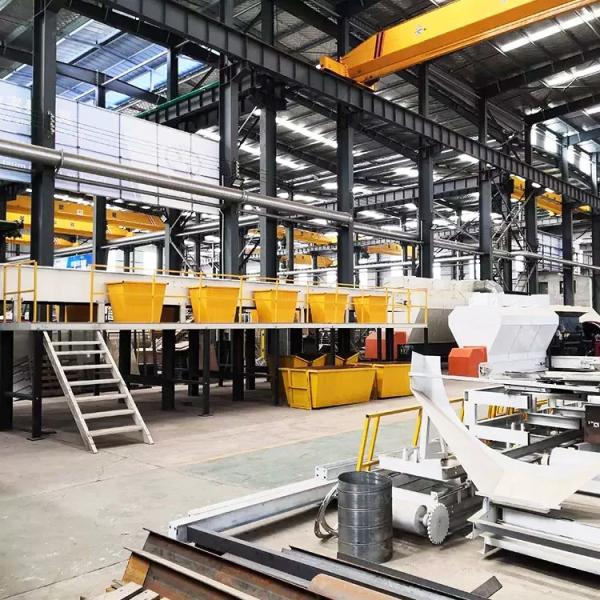

Manual sorting platform
The manual sorting platform is mainly used in the parts of the waste treatment line that cannot be sorted by machinery. It is mainly used for manual sorting of large disturbances before rolling screens and manual sorting of resource utilization after fan winnowing.
1,The manual sorting platform consists of belt conveyor, platform,silo,safety protection device,light steel workshop (optional) etc, material is along with material to the sorting platform. 2,Such as plastic, paper, fabric, battery, glass etc will be sorted and put to different silos by workers. 3,The left material will go next step , the belt conveyor takes frequency converter and places at middle part. 4,There is a silo for every station at both sides of sorting platform.
20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle 20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle 20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle
Dia.Of screen(mm)
Length (m)
Speed (r/min)
Capacity(t/h)
Bag break rate (%)
Rate of screening (%)
Power(kw)
XRD-1200
4-8
0-20
≥20
60-90
70-90
4-5.5
XRD-1500
5-9
0-17
≥40
60-90
70-90
5.5-7.5
XRD-1800
6-10
0-14
≥50
60-90
70-90
7.5-11
XRD-2000
8-11
0-13
≥60
60-90
70-90
11-15
XRD-2200
9-12
0-12
≥70
60-90
70-90
15-18.5
XRD-2500
10-15
10-15
≥80
60-90
70-90
18.5-22
XRD-3000
10-15
0-11
≥100
60-90
70-90
22-30
Capacity and detail customized by customer.
20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle
20T/H-100T/H Garbage Sorting Line Urban Trash Garbage Sorting Equipment Recycle
Product Features
1,Material of manual sorting platform:
the hopper frame is made of equal Angle steel, and the side plate is made of Q235A steel plate; The main beam is made of hot-rolled H-shaped steel; Reinforcing bars are made of hot rolled channel steel and equal Angle steel. The column is made of hot-rolled H-shaped steel; The column and bottom plate are made of Q235A steel plate; The tread frame is made of hot-rolled channel steel and equal-edge Angle steel, and the cover plate is made of 3# pattern aluminum plate. 2,Manual sorting platform safety protection:
both sides of the sorting belt conveyor are equipped with emergency stop buttons.
At present, there are several main ways of garbage classification in our country: manual sorting, mechanical physical screening, and intelligent garbage sorting equipment sorting. The working modes and technical principles of manual sorting and mechanical physical screening are relatively mature. Manual sorting platforms of different specifications such as 4 stations, 6 stations, and 8 stations can be customized as required.
