Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Specifications
Brand Name :
Xrido
Model Number :
XRD-100D
Certification :
CE ISO TUV
MOQ :
1 set
Payment Terms :
Negotiable
Delivery Time :
2-30 Working Days
place of origin :
Henan, China
brand name :
Xrido
model number :
XRD-100D
type :
Refuse Collector
warranty :
1 Year
material :
wooden box
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
PLC, motor, Pressure vessel, Pump
Name :
waste sorting machine
Application :
msw sorting systems machine
Advantage :
High Separator Rate 99.99%
Voltage :
220V/380V/Customized
Capacity :
100t/d
Service life :
30years
After sales :
Online Suooprt
Color :
Customized Color
Packing :
Wooden Case Packing
Description
Products Description
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Garbage sorting robots play an increasingly important role in modern urban garbage disposal. They can efficiently and accurately sort mixed domestic garbage, greatly improving the efficiency of garbage disposal and resource recycling.
First, the garbage sorting robot is equipped with an advanced visual recognition system. Through high-definition cameras and image recognition technology, the robot can quickly identify the types and components of garbage. For example, it can distinguish different types of garbage such as plastic bottles, metal cans, paper, glass bottles, and accurately determine their positions and postures.
Second, the robot uses a flexible robotic arm and gripping device. The robotic arm can accurately move to the position of the target garbage according to the recognition results, and pick it up stably through the gripping device. The design of the gripping device is also very diverse, which can adapt to garbage of different shapes and sizes to ensure the accuracy of sorting.
The production line machine is configured according to the actual situation of the customer.

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

The range of materials that can be processed by the robotic arm in the field of garbage sorting is wide, mainly including the following categories:
1. ‌Recyclables‌
Plastic products‌: including PET bottles, plastic bags, foam plastics, etc., using near-infrared spectroscopy technology to identify different plastic materials.
Metals‌: metal cans or parts such as iron, aluminum, and copper, combined with magnetic separation devices and metal detectors to achieve efficient sorting.
Paper‌: newspapers, cartons, wrapping paper, etc., using visual systems to distinguish colors, textures, and shapes.
Glass products‌: transparent or colored glass such as wine bottles and glasses, using optical sensors to identify light transmittance and materials.
2. ‌Construction and decoration waste‌
Brick and concrete blocks‌: ensure the purity of aggregates after sorting for easy recycling.
Wood and woven fabrics‌: identify and separate impurities such as wood and carpets to improve back-end processing efficiency.
3. ‌Mixed household waste‌
Kitchen waste‌: such as crayfish shells, bones, etc., using AI learning to distinguish between dry and wet waste categories.
Other debris: including textiles, electronic waste, etc., with the help of multi-sensor collaborative judgment.
4. Special materials
Electronic waste: circuit boards, wires, etc., accurately grasped through metal detection and shape analysis.
Hazardous waste: including batteries, chemical containers, etc., to avoid the risk of manual contact.
The robotic arm can adapt to the complex and changing material sorting needs by integrating visual recognition, sensor technology and AI algorithms, significantly improving resource recovery rate and processing safety.

Detal of the Robotic Arm:

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

 Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

Advantages of Robotic Arm:
1. Work tasks
Work tasks are capable of complex work tasks and solve various plastic sorting needs, including material, type, size, color, appearance, etc. sorting;
2. Sorting efficiency
Improve sorting efficiency and material purity, thereby simplifying the back-end process's demand for secondary sorting;
3. Intelligence
Intelligent equipment replaces manual work and can work for a long time in harsh environments
4. Reduce costs and shorten cycles
Stable output and professional material identification capabilities, reduce labor costs and solve employment difficulties; Shorten cycle: shorten the cycle of the sorting link and reduce time costs.

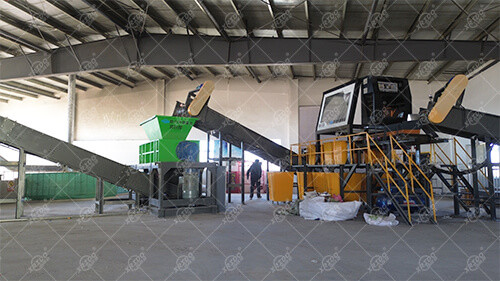

Case:

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine

Materials fo the Urban Garbage Sorting System with Robot Arm:
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Applicable of Robotic Arm For Sorting Plant :
√Domestic Waste, Urban trash
√Landfill Stale Waste
√Municipal Solid Waste
√Construction and Demolition Waste
√Scrap Metal, Industrial Waste
√Plastic Waste, Solid Waste

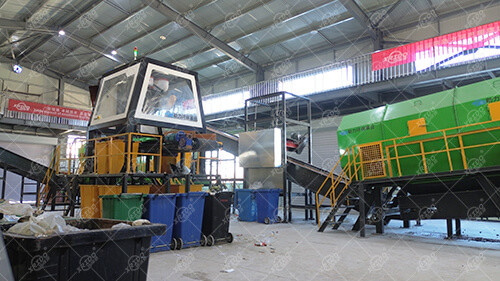

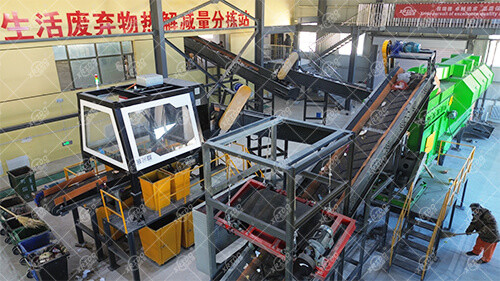

Customer Site - Sorting and Recycling Plants:
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
Working Process of Waste Sorting Plant:
1. The garbage will be transported to the feeding platform by forklift, and the garbage will be carried away by hopper.
2. The garbage is evenly distributed by the feeder, and then evenly sent to the next process by the belt conveyor.
3. When the garbage passes through the sorting platform, the larger garbage will be picked out.
4. Waste will be separated by rotary screening machine can be customized according to customer requirements.
5. The plastic will be packed by the baler; Heavy materials will be sent directly to the outside landfill or pulverized to make
bricks; We can pick out useful materials from the mix and then recycle them.
6. All garbage sorting equipment in the garbage sorting line can be customized according to the actual needs of customers.
Product Paramenters
Model
XRD-100D
XRD-200D
XRD-400D
Raw materials
Domestic Waste, Urban trash , Landfill Stale Waste, Municipal Solid Waste, Construction and Decoration Waste, Scrap Metal,
Industrial Waste, Plastic Waste, Solid Waste
Capacity
100T/D
200T/D
400T/D
Power
149KW
224.7KW
279KW
Area
2400㎡
2800㎡
3000㎡
Working time
20 hours
20 hours
20 hours
Robotic Arm For Sorting Plant Ai Sorting Machine MSW Robotic Arm Separating Line Light Waste Ai Sorting Machine
