Specifications
Certification :
CE ISO
Brand Name :
Xrido
Model Number :
Customizable
MOQ :
1 set
Delivery Time :
5-30 word days
place of origin :
Henan, China
brand name :
Xrido
model number :
200
type :
Waste Sorting System
warranty :
1 Year
material :
wooden box
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, PLC
weight (kg) :
31000
Power :
90 KW, 60 KW, 20 kw, 70 KW
Name :
Waste Sorting System
Application :
Solid Waste
Function :
Garbage Recycling Sorting
Color :
Customized Color
Advantage :
Easy Operation High Efficiency
Voltage :
220V/380V/415V/440V/customized
Capacity :
100t/d
Package :
Carton Box
After Sale Service :
Overseas
Description

100t/d Automatic Waste Sorting Machine Municipal Organic Waste Sorting Machine AI Sorting Machine

Product characteristics
The domestic waste sorting line integrates AI visual recognition and mechanical sorting technology. When the material flows through the spectral sorter, the near-infrared sensor instantly identifies the plastic material, and the high-pressure airflow accurately blows it off the conveyor belt. The magnetic separation equipment uses adjustable magnetic field strength to classify and recycle metals with different magnetic properties. At a transfer station in Hangzhou, the sorting line has achieved a purity of 98% for recyclables, increasing carbon emissions by about 4,500 tons per year, equivalent to planting 250,000 more trees.
It is mainly applied to the pretreatment of domestic wastes before burning, the collaborative disposal of cement kilns, the recycling of domestic waste, and the production of RDF derived fuels.
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine
Working Process of Waste Recycling Production Line
The work flow of urban garbage sorting and recycling line equipment is scientific and rigorous. First, the crushing device is used to crush large pieces of garbage into smaller particles for subsequent processing. Then, the sorting device uses magnetic separation, wind separation and other technologies to separate recyclable materials such as metals, plastics, and glass from the garbage. Subsequently, the dehydration device removes moisture from the garbage, reduces the volume of garbage, and prepares for subsequent fermentation or incineration. Finally, according to the composition of the garbage and the treatment requirements, a suitable fermentation or incineration process is selected to convert the garbage into organic fertilizer or energy to achieve the recycling of resources.
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine

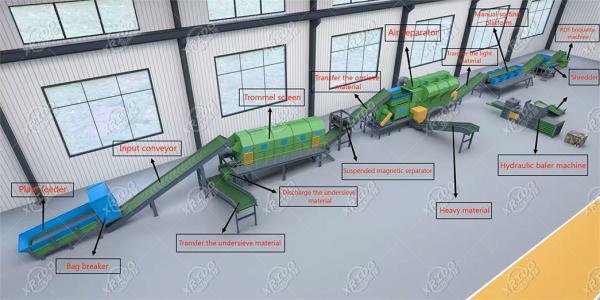

Waste sorting production line:
Urban waste, construction waste, or stale waste enters the feeder --Bag breaking machine--Belt conveyor --Waste trommel screen machine -- Magnetic separator --Integrated air separator-- Manual sorting platform -- Garbage packaging system -- Waste shredder machine.
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine
Product Parameters
Model XRD-50 XRD-100 XRD-200 XRD-300 XRD-500
Raw materials Municipal solid waste, household waste, Industrial waste, landfill waste and mining wastes, construction and decorative waste, etc.
Capacity 50T/D 100T/D 200T/D 300T/D 500T/D
Power 84KW 101.4KW 134.4KW 164.7KW 222KW
Equipment Area 1000m² 1200m² 1300m² 1500m² 1800m²
Working time 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours
1.Box Feeding machine/Chain feeder
2.Bag breaker
3.Trommel screen
4.Air separation machine
5.2 sets manual sorting table (1 set for light materials, 1 set for heavy materials)
6.Hydraulic baling machine
7.RDF machines line
*This is the basic model of our waste sorting machine. Our factory manufactures customized machines according to the different requirements of different customers.
Customer Site
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine 100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine
100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine 100t/D Automatic Waste Sorting Machine Garbage Recycling AI Sorting Machine
It's our honor to be trusted by our customers. It's also the vision of our company. We are constantly pursuing the satisfaction and recognition from our customers. We are looking forward for every opportunity of cooperation. We also provide is installation direction and perfect after-sale service. We take every opinions of our customers priciously. That's the most important way to improve our service and customers' experience.
