Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Specifications
Place of Origin :
Henan, China
Brand Name :
xrido
Model Number :
RDS-120
Certification :
CE ISO
MOQ :
1
Price :
$7,000-7,500
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Motor
voltage :
380V/50HZ or customized
dimension(l*w*h) :
2800x1300x1850
warranty :
12 Months
key selling points :
Automatic
weight (kg) :
2200
Power :
22
Application :
Recycle Waste Tires
Raw material :
Waste Tyre Tire Rubber
Key word :
Waste Plastic Shredder
Color :
Customers' Demand
Blade Material :
9CrSi/D2/SKD-11/ Customized
Waste tire recycling line :
Tire Recycling Equipement Comeplete Line
Usage :
Rubber Shredding Waste Plastic Shredding
Advantage :
High Efficiency Low Energy Consumption
Shaft Design :
Double
Description
Products Description

Waste tire shredder tire crusher machine

Waste tire crushing and recycling equipment For waste tires of different types of cars, such as cars, light commercial vehicles,trucks and construction machinery,it is recycled,including crushing processing,steel wire and fiber separation,to produce pure rubber particles and powder. The waste tire recycling and recycling equipment adopts a modular design,which can add or reduce production links on the basis of it, enhance the flexibility of the production line,and better meet the changing requirements of production capacity and tire types. We effectively understand the customer's production needs, conduct accurate planning and assembly of a variety of equipment,and provide a series of high- yield,high-efficiency tire recycling production programs.
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Main Application
For different tire characteristics and productivity requirements,the line structure may include

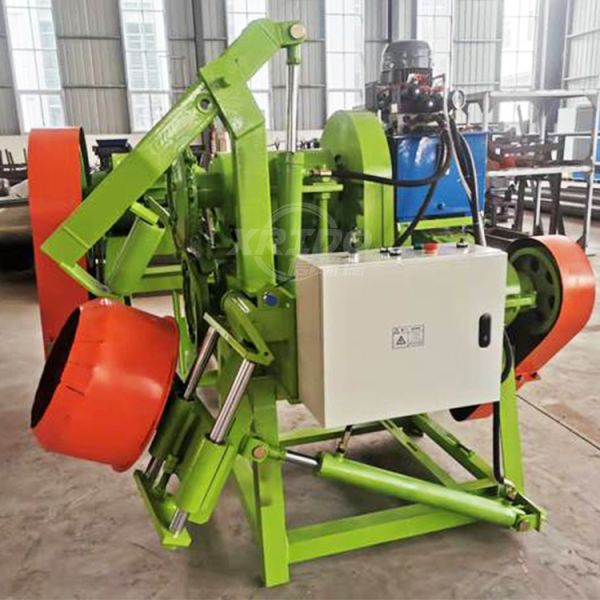

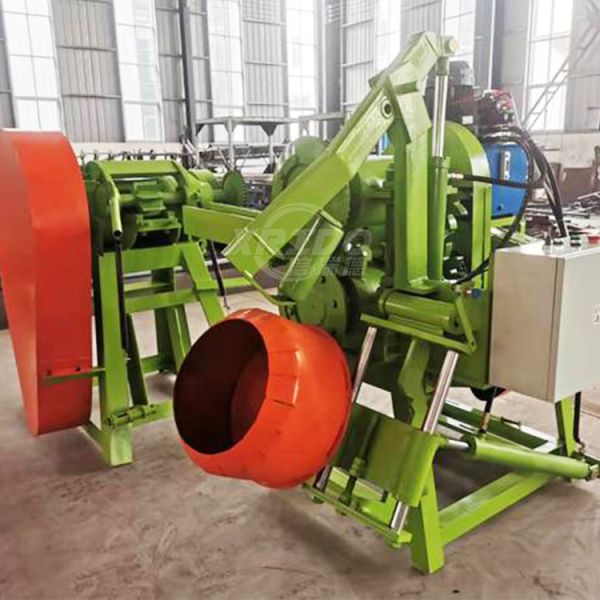

1,Fully automatic wire drawing machine:remove tire steel wheel. 2,Conveyor equipment:conveyor belt,screw conveyor and air pressure transmission system 3,Shredder:tear the tire into film (50mm-150mm). 4,Steel wire separator:separate the rubber and steel wire and process it into rubber particles(10mm-20mm). 5,Magnetic separator:sorting steel wire from rubber wire mixture. 6,Crusher:Smash the rubber particles to a smaller size(1mm-7mm). 7,Vibrating screen:sorting different sizes of rubber particles,and returning the oversized particles to the crusher for secondary crushing. 8,Fiber separator:remove foreign matter and fiber. 9,Secondary Magnetic Separator:Possible Small Wires to Go. 10,Mill:The particles are ground to a powder (30 mesh to 100 mesh). 11,Fully automatic bagging system:loading finished products into storage bags or bags.
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Details Images

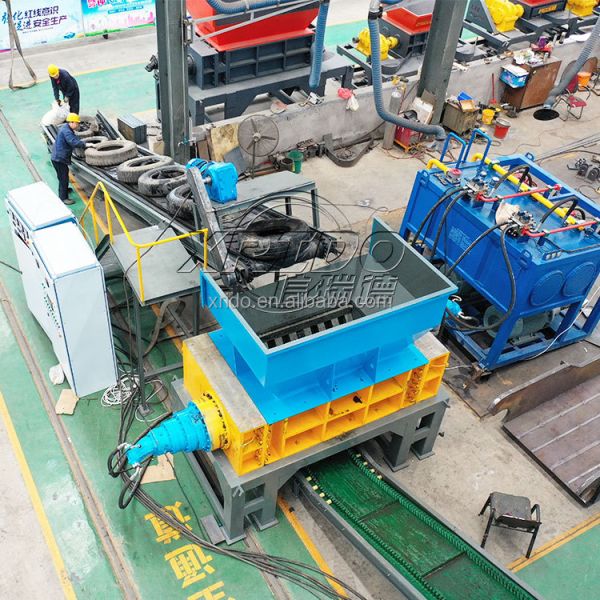

1. The whole tire is directly put in,no need to pre-break and pull the steel ring. 2, From the entire tire to 1-7mm granules, the entire process of production packaging, no secondary handling intermediate links. 3, The maximum processing capacity is 5000kg/h,and only 7 people can complete the entire site operation. 4, According to the customer's output requirements configuration equipment,200kg/h-5000kg/h,a wide range of options. 5,Fully-combined two-tier structure makes installation, replacement, maintenance and maintenance more convenient and safer. 6,seamless connection, full dust, smoke monitoring performance. 7, Adhere to the 80-100 hours feeding test before the single factory to ensure stable. 8.CE certification, uniform standards,focus on technology.
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Product Paramenters
model
size(LxWxH)
blade diameter
blade quantity
weight
RDS-80
2800x1300x1850
275
72
3600
RDS-100
3000x1300x1850
275
96
4000
RDS-120
3300x1900x2200
315
120
6500
RDS-140
3600x2000x2200
315
144
7500
RDS-160
4180x2100x2400
350
180
9000
RDS-180
5400x2700x3500
500
240
20000
Our Advantages
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
1. It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting,stopping, reversing and overloading automatic reversing.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
Customer Photos
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling

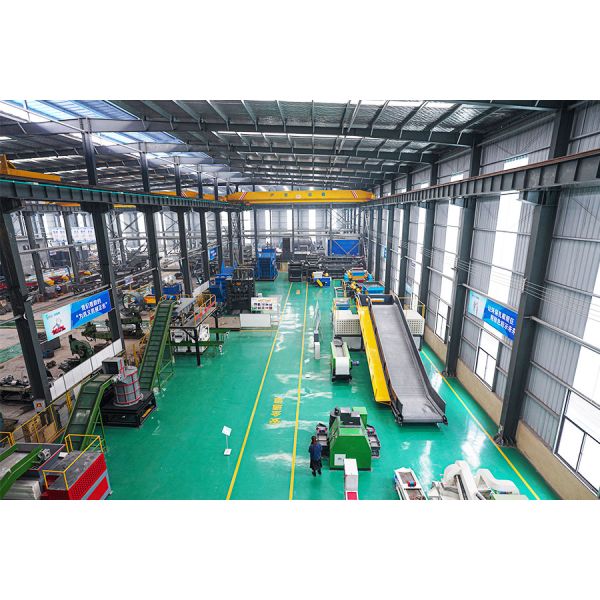

Company Profile
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
Heavy Duty Tire Shredder Machine with SKD11 Blade and 22 Power for Waste Tire Recycling
The company is one of the leading enterprises of machinery and equipment in environmental protection and recycling industry in Henan province,and is a leading supplier of similar products in the whole country. The company's products are widely used in domestic waste treatment, waste treatment scrap steel crushing, waste car crushing and sorting, hazardous waste disposal,industrial waste disposal, construction waste recycling,waste household appliances crushing and sorting, waste tire utilization, waste cable recycling and other industries. The main products include shredder, crusher, grinder, magnetic separation
system,dust removal system, microcomputer control system,eddy current separation system and mobile sand and gravel equipment.There are 8 series of over 50 varieties.
