3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic
3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic
Specifications
Brand Name :
DLY
Model Number :
sinus
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Corrugated Roofing Machine
Weight :
12T
Diameter of shaft :
75mm/80mm
feeding material :
914mm/1000mm / 1250mm
voltage :
380v. 50hz. 3p
Cutting system: :
Automatic Hydraulic Cutting
Description

3P Corrugated Machine 8000kg Metal Roof Roll Forming Equipment

1. Description of Corrugated Roofing Machine

  • Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
  • Good service: we provide the technical support for whole life of our machines.
  • Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
  • Easy operation:All machine cotrolling by PLC computer controlling systerm.
  • Elegant apperance:Protect the machine from rust and the painted colour can be customized
  • Reasonable price:We offer the best price in our industry.

2. Specifications of Corrugated Roofing Machine

Product Name
Steel roof tile forming machine
Material
Type
Pre-painted & galvanized steel coil
Thickness(mm)
0.3-0.6mm
Tield stress(Mpa)
Q235-345
Max.forming speed (m/min)
2-3;5-6
Roller material
#45 steel with hard chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure(Mpa)
12
Main motor power(KW)
5.5
Hydraulic station motor power
5.5
Dimension (L*W*H)
about 8000*1500*1500mm
Weight (KG)
about 8000



3. workflow of Corrugated Roofing Machine

Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table

3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic

4.​ Service of our Corrugated Roofing Machine

  • Free technical support and free accessories supply.
  • Engineer available to service machinery overseas.
  • One year warranty is provided.
  • Long life technical guidance for free.
  • We always offer technical support, quick response, all your inquire will be replied in 24 hours.

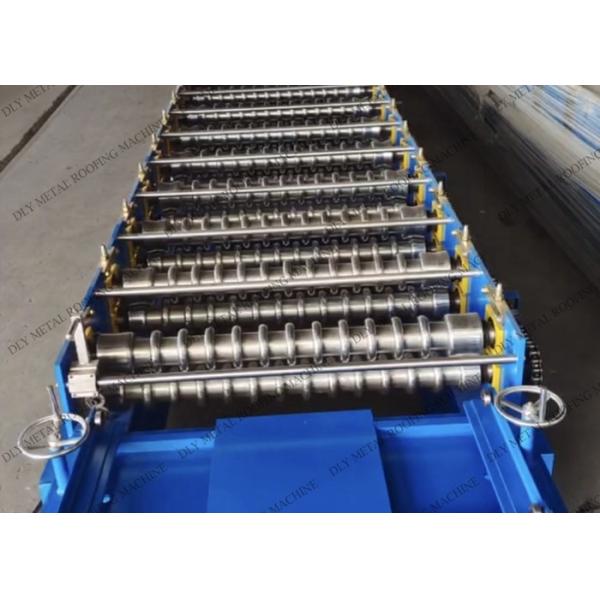

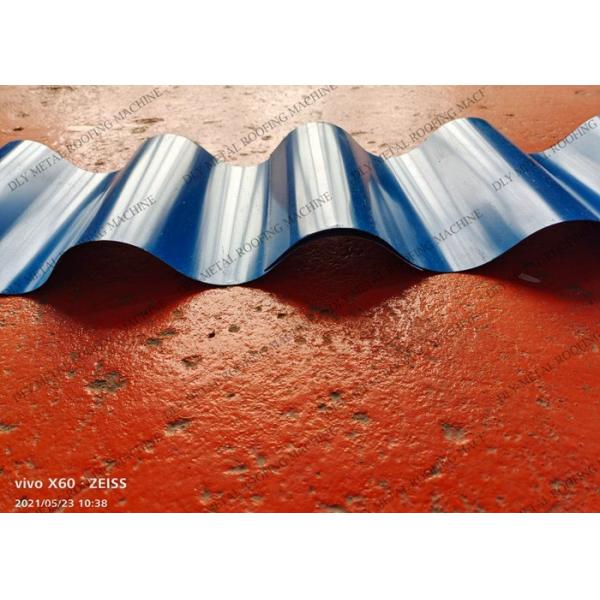

5. details of Corrugated Roofing Machine

3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic

3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic3p 8000kg Corrugated Roofing Machine Metal Roll Forming Equipment Hydraulic
