1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine
1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine
Specifications
Brand Name :
DLY
Model Number :
double layer machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
double Layer Forming Machine
Dimension(l*w*h) :
7500mm * 1600mm * 1500mm
Use :
Roof/wall
Cutting blade material :
Cr 12 Mov
Weight :
9T
Warranty :
12 months
After-sales service provided :
Engineers available to service machinery overseas,Online support
Plc :
mitsubishi/delixi/siemens
Description

Automatic Metal Roofing 1250mm Double Layer Forming Machine With PLC

1. Brief introduction of Double Layer Forming Machine

Double Layer machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.

Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).

2. Specifications of Double Layer Forming Machine

1
Suitable material
Color steel sheet ,galvanized steel sheet, aluminium sheet
2
Width of material
1000mm
3
Thickness of material
0.3-0.8mm or as your needs
4
Working speed
10-20m/min
5
Electrical control system
PLC control system
6
Shaft diameter
80mm
7
Dimension
7500x1500x1910mm
8
Weight
About 7 T
9
Voltage
380V 3phase 50HZ or as the customer's requirements
10
Material of roller
High grade 45# forged steel plated with hard chrome plating
11
Material of cutting
Cr12 mould steel with quenched treatment
12
Working time
Can be 24 hours
13
Workers
1-2 only

3. Customer Feedback of Double Layer Forming Machine

1) Engineer will give free training lessons to labors in buyer's factory.

2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.

3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

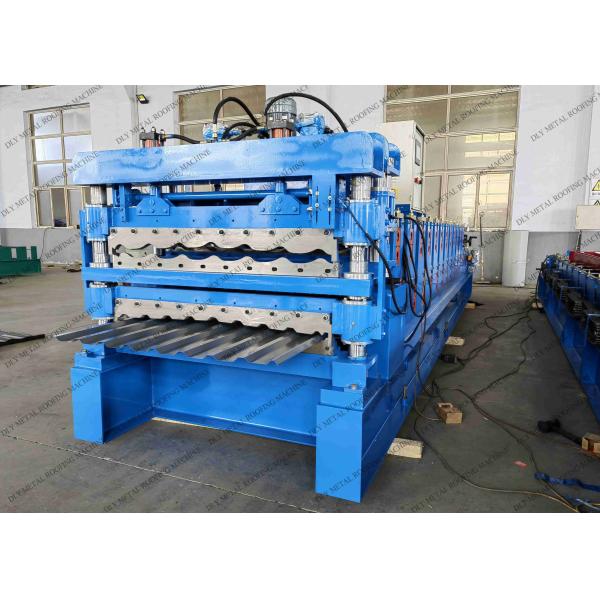

4. details photos of Double Layer Forming Machine

1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine

1250mm Double Layer Forming Machine Cr12 Double Deck Roll Forming Machine
