220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed
220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed
Specifications
Brand Name :
DLY
Model Number :
ridge cap machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Ridge Cap Forming Machine
Tile type :
Colored Steel
Cutting blade material :
cr12 with quenched treatment
Voltage :
380V 50Hz 3phases
Weight :
about 3 tons
Warranty :
12 Months
Raw material :
ppgi
Plc :
mitsubishi/delixi/siemens
Description

PLC 220V Metal Ridge Cap Forming Machine With 8m Speed

1. description of Ridge Cap Forming Machine

Color Steel roof ridge cap forming machine is used to produce metal roof ridge tile which is one type popular metal construction material,this material is usually used with other metal roof sheets,they are widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.It has the advantage of beautiful, classical appearance and grace taste.

2. Specifications of Ridge Cap Forming Machine

Machine Specifications
Weight About 3500kgs
Size About 6m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 2.2kw
Electric voltage According to customer’s requirement

3. Advantage ​of Ridge Cap Forming Machine

  • durable
  • withstand servere conditions.
  • low cost
  • low initial investment and low maintain cost
  • environment friendly
  • all the material can be recycled
  • flexible design
  • can relocate
  • install time considerably reduced
  • Operate easily , work automatically with PLC controller control.

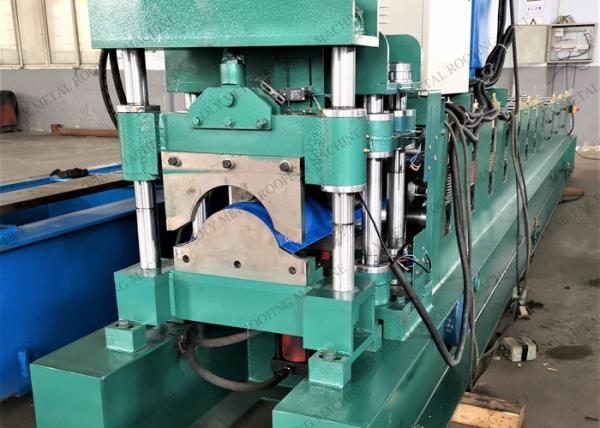

4. details photos of Ridge Cap Forming Machine

220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed220V PLC Ridge Cap Roll Forming Machine 3500kg Tile Forming Machine 8m Speed
