Clip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel Equipment
Clip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel Equipment
Specifications
Brand Name :
DLY
Model Number :
Snap Lock Metal Roofing Machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Snap Lock Metal Roofing Machine
Plc :
mitsubishi/delixi/siemens
Tile type :
roll forming machine
Control system :
PLC(imported Brand)
Weight :
6000KG
Cutting blade material :
cr12 with quenched treatment
Warranty :
12months
Usage :
standing seam roof
Description

Clip Relief Metal Automatic Snap Lock Metal Roofing Machine For Wall And Roof

1. Description of Snap Lock Metal Roofing Machine

  • Manually operated E-Z cut shear
  • One steel reel
  • Two reel decoiler with friction brake
  • Automatic screw/nail hole slotter
  • All forming rollers industrial hard chrome plated
  • Length control limit switch
  • 40 feet of run-out-table
  • 10 forming stations

2. Specifications of Snap Lock Metal Roofing Machine

1 Suitable to process Color alu-zinc steel coil
2 Roller 19 Rows
3 Dimensions 8*1.5*1.6m
4 Motor Power 5.5KW
5 Pump Station Motor 3KW. Lichao Brand
6 Thickness of the plate 0.3-0.8mm
7 Productivity 10-15m/min
8 Material of the cutting blade Cr12,Quenched treatment HRC58-60
9 Diameter of the roller 75mm
10 Weight About 5000kgs
11 Main structure of the machine 400H beams
12 Processing precision Within 1.0mm
13 Side panel of machine 20mm
14 Chain Wheel and Cycle Chain 1 Inch
15 Voltage 380V 50Hz 3phases or as customer's need
16 Control system PLC control (Delta)
17 Frequency system Delta
18 Drive mode Motor driver
19 Touch screen Delta
20 Rolling materials 45# forging steel with chromium plate
21 Length Tolerance

±2mm

3. Features of Snap Lock Metal Roofing Machine
  • 6 Urethane drive rollers
  • Free-floating forming rollers mounted
  • Two sets of bead rollers included
  • Easy adjustable width of panel from 12” - 24”
  • Includes clip relief rollers
  • Easy change to different various profiles (custom design available)
  • Manual Exit end shear
  • Material width 11” to 30.5”
  • Limit switch for length control
  • Liberty wireless control For/Rev Start/Stop
  • This advanced machine comes with the any available profile up to your choice.
  • Tooling rollers are interchangeable so you can order extra tool set or few.

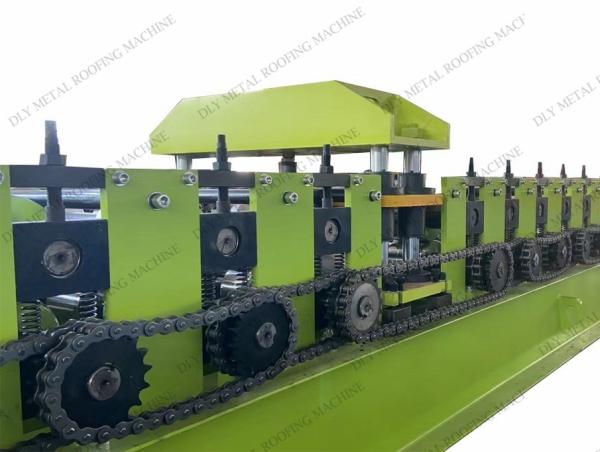

4. Detail pictures of Snap Lock Metal Roofing Machine

Clip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel EquipmentClip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel EquipmentClip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel EquipmentClip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel Equipment
