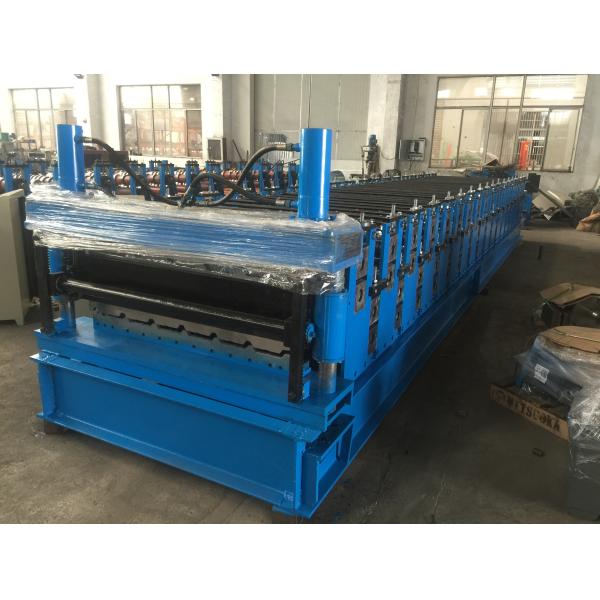

Guardrail Metal Roofing Roll Forming Machine 5.5Kw Hydraulic Cutting
Guardrail Metal Roofing Roll Forming Machine 5.5Kw Hydraulic Cutting
Specifications
Brand Name :
ZBR
Model Number :
ZBR-G-601
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Punching :
Auto
Usage :
Roof, Wall, Ceiling
Max.Forming Speed :
15-18 M/Min
Production :
Guardrail Forming Machine
Cutting Type) :
Hydraulic Cutting
Material :
PPGI,PPGL,Pre-Painted Steel Sheet
Description

Guardrail Metal Roofing Roll Forming Machine 5.5Kw Hydraulic Cutting

Standard Equipment of Machine

1) Manual Uncoiler 1set
2) Infeed Guide 1set
3) Roll Forming Station 1set
4) Post-cut Equipment 1set
5) Hydraulic Station 1pc
6) PLC Control Console 1pc
7) Product Support Table 2pcs
8) Spare Parts 1box


Components for the Machine:
The roll forming machine includes manual uncoiler unit, infeed guide, fixed position driven forming stations, pressing die, cutting equipment, hydraulic station, PLC console and manual unload product run out table.

Material specification Aluminum, alu-zinc, galvanized and pre-painted galvanized steel.
Thickness 0.3-0.7mm.(perfect is 0.4mm-0.6mm)
Main motor power 5.5 kw.
Hydraulic station power 5.5kw.
Feeding width 1000mm.
Cover width 828mm
Yield stress 235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 15-18 m/min
Cutting Tolerance +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).
Manual Uncoiler Max. Capacity: 5000kgs.
Coil inner diameter 508mm.
Voltage 380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands 17 stations
Type of cutting Roll-formed and length-set profile cutting.
3. Material of Main Equipment:
Roller Material High grade S45C forged steel, coated with hard chrome.
Active Shaft Material High grade S45C carbon wrought steel, diameter 76mm.
Electric Elements PLC control console, touch screen and transducer, from Siemens, Germany.
Other elements, from Schneider Electric, Germany.
Cutter Blades Cr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.
