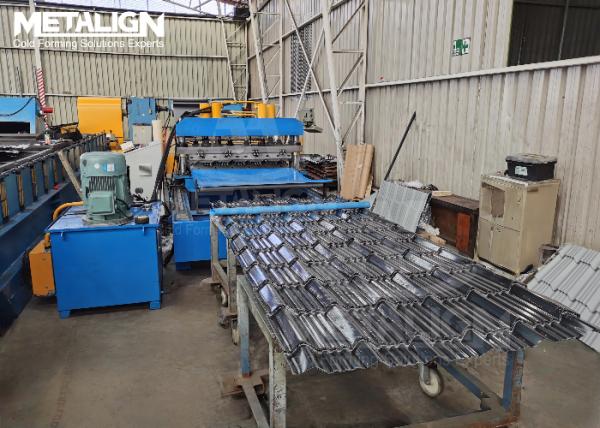

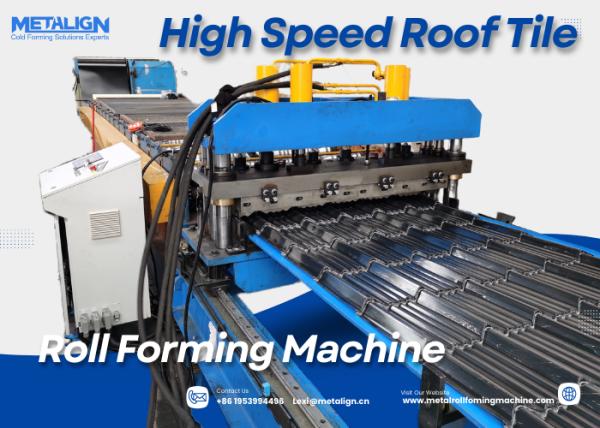

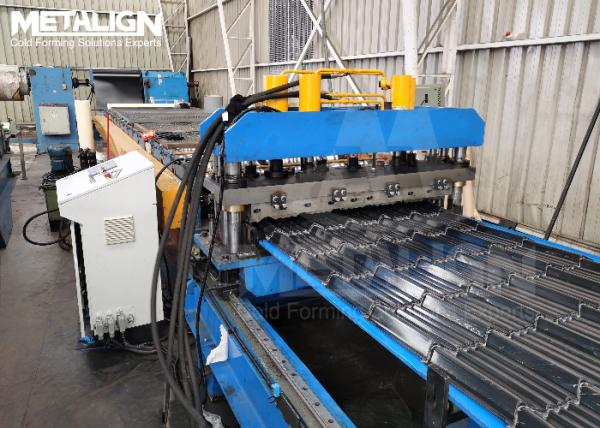

Flying Punching Chain Drive Roof Tile Roll Forming Machine
Flying Punching Chain Drive Roof Tile Roll Forming Machine
Flying Punching Chain Drive Roof Tile Roll Forming Machine
Flying Punching Chain Drive Roof Tile Roll Forming Machine
Flying Punching Chain Drive Roof Tile Roll Forming Machine
Flying Punching Chain Drive Roof Tile Roll Forming Machine
Specifications
Brand Name :
METALIGN
Model Number :
RT
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD1,000-700,000. Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
Continuous Roofing Tile Roll Forming Production Line With Wall Frame
Key words :
Metal Ridge Cap Roll Forming Machine/Ridge Cap Roll Former/Galvanized Ridge Cap Machine/Ridge Cap Making Machine/Steel Ridge Cap Production Line
Profile :
Roof tile
Application :
Metal Roofing Ridge/Steel Roof Connection Cover/Building Roof Flashing/Waterproof Roof Join Cover
Material type :
PPGI/PPGL/GI/GL Steel Coils
Material thickness :
0.3-0.8mm
Forming speed :
15-20m/min
Main motor power :
5.5Kw
Forming stations :
18
Driving system :
Chain
Frame structure :
Wall panel
Shaft diameter :
70mm
Machine condition :
Brand new
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Delivery time :
30 days
Description

Flying Punching Chain Drive Roof Tile Roll Forming Machine

1. Overview


1.1 Production Line


This production line is ideal for clients in the roofing materials industry seeking high-efficiency, decorative tile panels. It supports continuous production with flying punching and cutting, providing precision, automation, and consistent panel quality for medium to high-volume manufacturing.

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Tile Shape Punching

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Cutter

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Auto Stacker


1.2 Profile
The roof tile panel is made of galvanized or prepainted steel, typically 0.3–0.8mm thick. It features a curved, overlapping tile shape with decorative embossing. The panel is used for high-end metal roofing, offering a classic look with modern durability for residential or light commercial buildings.
Material: Galvanized Steel / PPGI / Aluminum Thickness: 0.3-0.8mm
Yield strength: 200 - 350 Mpa Tensil stress: 200 -350 Mpa


1.3 Production Process

Flow Chart:

Hydraulic Decoiler → Entry Guide → Roll Former → Hydraulic Punch → Hydraulic Cutter → Run-out Table
Flying Punching Chain Drive Roof Tile Roll Forming Machine

Process:

After stable decoiling and guiding, the sheet is roll-formed into a tile shape, followed by dynamic hydraulic punching and flying cut. This ensures continuous, high-speed production without pausing, ideal for decorative roofing panels requiring accurate patterns and smooth cuts.


1.4 Key Focus

Accurate tile embossing with hydraulic synchronized motion

Ideal for large-volume tile roof panel manufacturing

Dynamic flying punching and cutting for uninterrupted production


2. Technical Parameters

2.1 Decoiler
Structure Double-support Flying Punching Chain Drive Roof Tile Roll Forming Machine
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Model DC-MU1


2.2 Optional Upgrade: Decoiler
Flying Punching Chain Drive Roof Tile Roll Forming Machine Flying Punching Chain Drive Roof Tile Roll Forming Machine Flying Punching Chain Drive Roof Tile Roll Forming Machine
Motorized Decoiler Stand structure decoiler, motorized or hydraulic Hydraulic decoiler with loading car


2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width Flying Punching Chain Drive Roof Tile Roll Forming Machine
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly


2.4 Roll Forming Machine
Working Speed Around 20 m/min Flying Punching Chain Drive Roof Tile Roll Forming Machine
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw Flying Punching Chain Drive Roof Tile Roll Forming Machine
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm


2.5 Optional Upgrade: Cover
Flying Punching Chain Drive Roof Tile Roll Forming Machine Flying Punching Chain Drive Roof Tile Roll Forming Machine Flying Punching Chain Drive Roof Tile Roll Forming Machine
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover


2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. Flying Punching Chain Drive Roof Tile Roll Forming Machine
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°


2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
Flying Punching Chain Drive Roof Tile Roll Forming Machine Flying Punching Chain Drive Roof Tile Roll Forming Machine


2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Hanging-Arm Control Box

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Standing Control Box


2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw Flying Punching Chain Drive Roof Tile Roll Forming Machine
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space



2.10 Analysis
7T Hydraulic Decoiler Supports large coil, ensures long-time continuous feed
Equipped with hydraulic expansion and pressing arm
Guiding Device Centers material, ensures correct alignment into roll former
Roll Former Forms tile profile with wall-plate machine base for stability
Chain drive system, cost-effective and durable
Protective cover ensures operator safety
Flying Hydraulic Punching Synchronized motion avoids stopping, improves efficiency
Customizable mold depth and shape
Matches line speed, ensures precise length cutting
Clean cut, no deformation at panel edge
Out Table Supports finished panels and allows manual collection


3. Production Line Components

Component Quantity
Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set


4. Customization Options

We offer customization of the tile pattern mold (depth, curve, pitch), punching die design, servo or hydraulic tracking systems, chain drive strength, roller layout, and embossing precision. The line can also be tailored for different coil widths, tile lengths, and optional auto stacking systems.
