Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-punch Automatic CZ Purlin Roll Forming Machines
Specifications
Brand Name :
METALIGN
Model Number :
CZP
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD1,000-700,000. Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
Purlin Roll Forming Machine
Key words :
C Purlin making machine / Form rolling machine
Profile :
CZ Purlin
Application :
Industrial Roofing / Warehouse Structure / Metal Building Frames
Material type :
PPGI/PPGL/GI/GL Steel Coils
Material thickness :
1.5-3.0mm
Forming speed :
15-20m/min
Main motor power :
5.5Kw
Forming stations :
18
Driving system :
Chain
Frame structure :
Cast-iron
Shaft diameter :
70mm
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Description

Pre-punch Automatic CZ Purlin Roll Forming Machines

1. Overview

Our CZ Purlin Roll Forming Machine is a fully automatic and highly adaptable production system designed to meet diverse project requirements. Each line can be customized for specific sizes, punching patterns, and material types. With intelligent control and quick size adjustment, it ensures precise forming, stable performance, and reduced setup time. This efficient design allows users to produce C and Z purlins with excellent dimensional accuracy while minimizing waste and maximizing productivity for steel structure manufacturing.


2. Technical Parameters

2.1 Decoiler
Structure Double-support Pre-punch Automatic CZ Purlin Roll Forming Machines
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Model DC-MU1


2.2 Optional Upgrade: Decoiler
Pre-punch Automatic CZ Purlin Roll Forming Machines Pre-punch Automatic CZ Purlin Roll Forming Machines Pre-punch Automatic CZ Purlin Roll Forming Machines
Motorized Decoiler Stand structure decoiler, motorized or hydraulic Hydraulic decoiler with loading car


2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width Pre-punch Automatic CZ Purlin Roll Forming Machines
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly


2.4 Roll Forming Machine
Working Speed Around 20 m/min Pre-punch Automatic CZ Purlin Roll Forming Machines
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw Pre-punch Automatic CZ Purlin Roll Forming Machines
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm


2.5 Optional Upgrade: Cover
Pre-punch Automatic CZ Purlin Roll Forming Machines Pre-punch Automatic CZ Purlin Roll Forming Machines Pre-punch Automatic CZ Purlin Roll Forming Machines
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover


2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. Pre-punch Automatic CZ Purlin Roll Forming Machines
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°


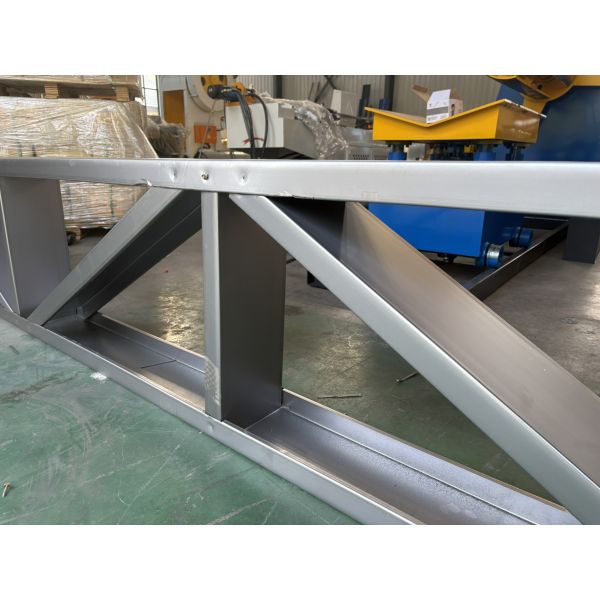

2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
Pre-punch Automatic CZ Purlin Roll Forming Machines Pre-punch Automatic CZ Purlin Roll Forming Machines


2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

Pre-punch Automatic CZ Purlin Roll Forming Machines

Hanging-Arm Control Box

Pre-punch Automatic CZ Purlin Roll Forming Machines

Standing Control Box


2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw Pre-punch Automatic CZ Purlin Roll Forming Machines
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space



2.10 Analysis
Decoiler Unrolls steel coils, smooth feeding, reduces material tension
Guide Aligns steel, ensures precise forming, prevents material deviation
Pre Punch Prepares holes for assembly, improves efficiency, reduces post-processing
Roll Forming Machine Cast-iron stand ensures stability, chain drive enables high-speed forming
Hydraulic Cut Accurate length cutting, minimizes burrs, ensures profile consistency
Out Table Collects finished purlins, reduces manual handling, supports automated workflow


3. Production Line Components

Component Quantity
Hydraulic Decoiler 1 set
Punching Unit 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set


4. Customization Options

This production line allows customization of profile width, height, and flange size for both C and Z purlins. Pre-punch hole positions, pitch, and quantity can be adapted. Roll former settings, hydraulic cutting length, and dual-layer configuration can be tailored to produce multi-size purlins in a single line for diverse roofing and structural applications.
