C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
Specifications
Brand Name :
DingBo
Model Number :
DBCZ
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
10sets/month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Raw material :
Galvanized Sheet
Roller driven type :
Chain Transmission
Control system :
PLC
Roller material :
High-grade 45# Steel
Shaft material :
High Grade No.45 Forged
Voltage :
380V 50Hz 3phases
Product name :
China Manufacturer Roll Forming Machine For Galvanized Steel CZ Purlin
Color :
Customers Requirement
Description

C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient

Main feature

The steel purline is formed by cold bending thin-walled steel in the indoor temperature, and the material will produce the cold bending effect.

It is suitable for steel structure engineering roof and wall beam etc.

Technical parameters

  • Type: Steel Frame & Purlin Machine
  • Condition: New
  • Work Pressure: 245---550Mpa
  • Production Capacity: 15-20m/min
  • Place of Origin: Jiangsu, China (Mainland)
  • Model Number: DBCZ01
  • Voltage: 380V/415V/440V
  • Power(W): 18.5KW+7.5KW
  • Dimension(L*W*H): About 11.2M*2.5M*1.8M
  • Weight: about 10.5 tons
  • Certification: ISO9001

Main components

No. Name Qty
1 Manual uncoiler 1
2 Servo feeding 1
3 Hydraulic punching 1
4 Main roll forming machine 1
5 PLC Control box 1
6 Hydraulic station 1
7 Output table 2

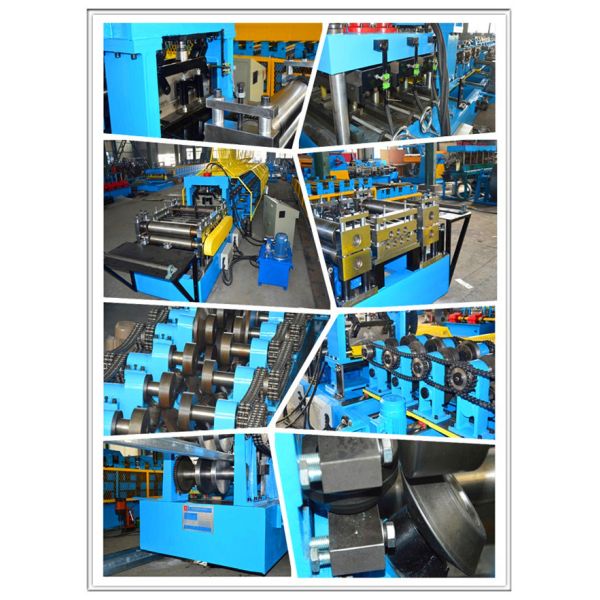

Machine picture

C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient

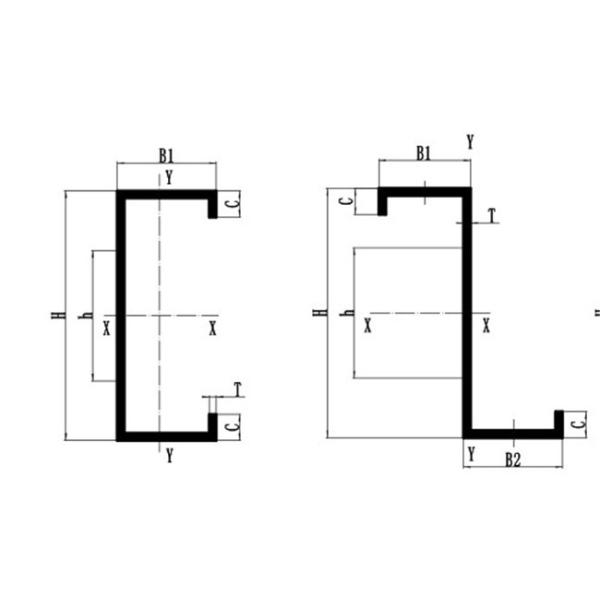

Profile drawing

C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient

Commercial items

  • Delivery time: Approx. 60 working days after technical clearance and down payment;
  • Validity time: The period of validity for this quotation is one month.
