22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine
22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine
22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine
22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine
Specifications
Brand Name :
Dingbo
Model Number :
DBCZ
Certification :
ISO CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
40000 USD/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
20 sets /month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Raw material :
Galvanized steel
Roller material :
Gcr15, quench treatment hardness 55-58
Shaft material :
45# Steel
Blade material :
Cr12 Mov
Drive :
By Chain
Product name :
C Z Purlin Channel Roll Forming Machine
Description

Building Frame C Z Purlin Roll Forming Machine Steel Profile C Z Channel Making Machine

ItemParameter
Product SpecifictaionModelC ProfileZ Profile
Width80-300mm120-300mm
Flange30-80mm(Changeable)
Edge10-20mm
Thickness1.5-3.0mm(Changeable)
MaterialQ195,Q235,Hot-rolled black,Galvanized steel strips(1.5-3.0mm)
Production Capacity25m/min(Depends on punching work frequency)
Hydraulic Motor Power22Kw

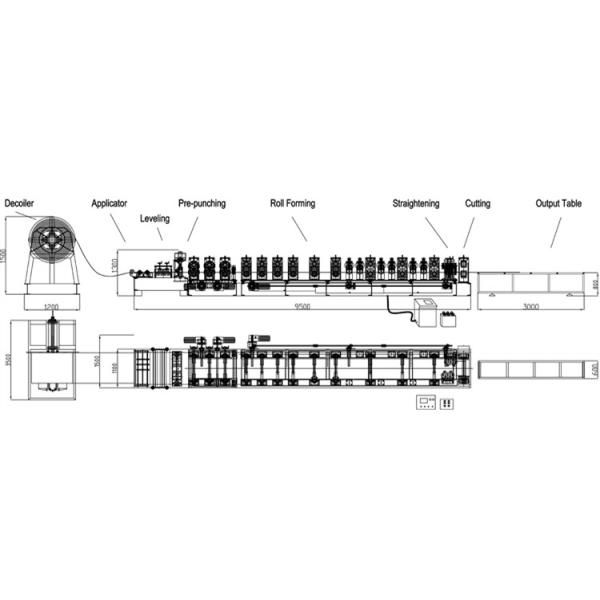

Working flow
Decoiler --- Leveling --- Hydraulic punching --- Cutting --- Roll forming --- Run out table
22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine
Technical parameters

Voltage380V/50HZ/3PH
Motor Power15KW
Forming Steps14 steps
Forming Speed10-15m/min
Effect Width100-300mm
Thickness1.5-3.0mm
Tolerance±1mm
Roller MaterialGcr15, quench treatment hardness 55-58
Material of principal axisHigh grade 45# forged steel
Shaft material45# steel high-frequencies quench
Cutting systemHydraulic cutting
Material for BladeCr12 mold steel with quenched treatment 60-62°C
Raw materialGalvanized Steel
Painted ColorCustomers requirement


Main components




Machine list

5 ton passive decoiler1 set
Feeding with guide1 set
Main roll forming machine1 set
PLC Control box1 unit
Hydraulic station1 unit
Stop cutting device1 unit
Hydraulic punching device1 unit
Out table2 units


Machine pic

22Kw C Z Purlin Roll Forming Machine Galvanized Steel C Z Channel Making Machine

Why choose us

1. We can make and design all kinds of roll forming machine according to customer’s requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

Company information

Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing,technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.

The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z purlin forming machine, guardrail forming machine, racking roll forming machine, cable tray roll forming machine, glazed tile forming machine, downpipe forming machine, roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.

The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
