Technical Parameters

• Main Specification

• 5T manual decoiler

• Capacity: 5ton
• Loading width: MAX 500mm
• Valid expanding range for coil inner diameter: 480-520mm

• 5 ton hydraulic decoiler

• Main roll forming system

• Main motor power: 15kw
• Drive: Chain
• Feeding and leveling power: 4KW
• Hydraulic power:5.5KW

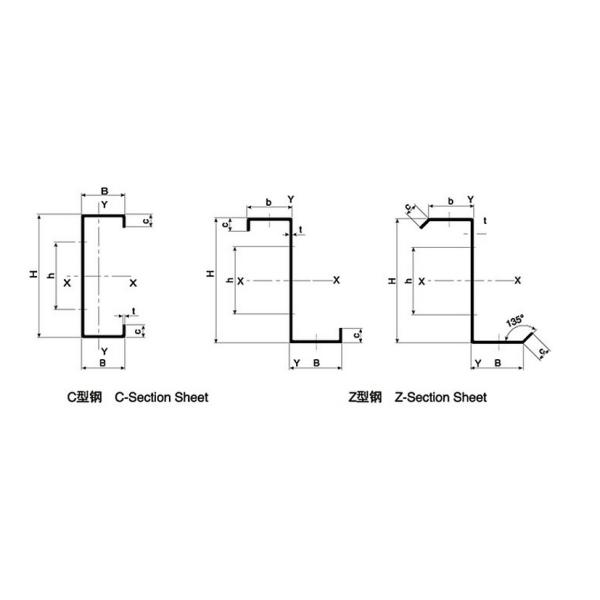

• Z purlin: at 90 degree
• purlin material strength: G550
• Hydraulic pressure: 20Mpa
• Punching:Hydraulic pre-punching before forming, three punches (include web, flange and center), which is controled by PLC.
• Main shaft dia: ￠76mm material: 45﹟forge steel and quenched
• Punching mould:Cr12mov
• Cutting: Hydraulic pre-cutting before forming, Auto cutting when reach the set length.
• Cutting blade: Cr12mov
• Cutting tolerance: +/- 1.5mm
• Drive: Chain
• Roller material: Gcr15 steel and quench treatment hardness 58-62, chrome coated 0.05mm
• Leveling rollers: 7rollers(three upper and four lower)
• Roll station: 16 groups
• Raw material: 1.5-3.0mm,pre-galvanized strip steel
• Valid width after fromed: 100mm-300mm
• Motor for width adjusting: 4.5KW(1.5KW*3)
• Working speed: 10m--15m/min(Exclude cutting time)
• Length Tolerance: ±1.5mm
• Weight of machine: about 14 ton
• Size of machine: About 11000×1800×1800mm L x W x H
• Color of machine: depend on customer
• Coder: Omron
• Control: PLC Panasonic, made in Japan. 380V 50HZ
• Computer operating panel: touching screen

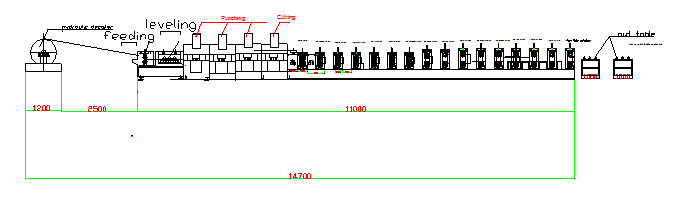

Uncoiler--Feeding--Leveling--hydraulic punching--Hydraulic cutting--Roll forming--Output table

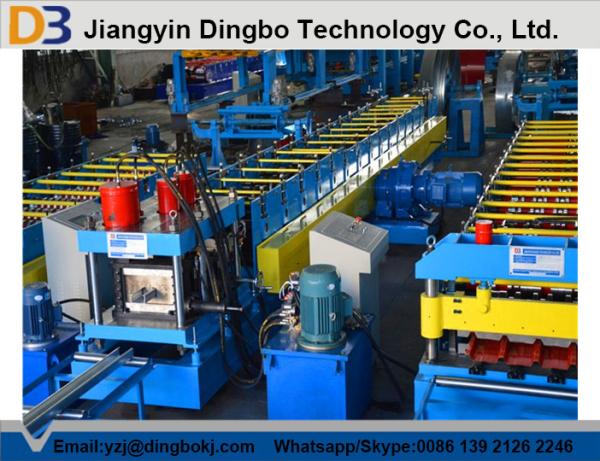

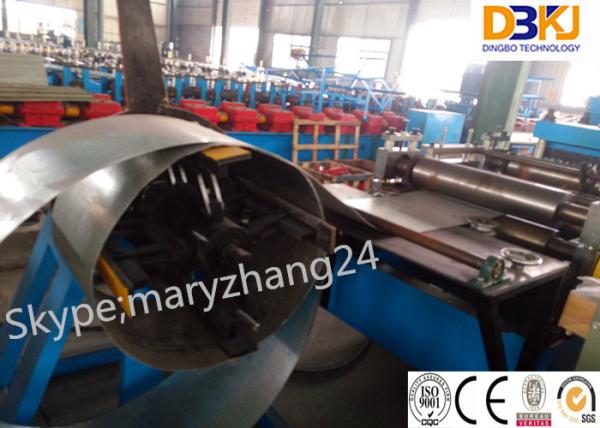

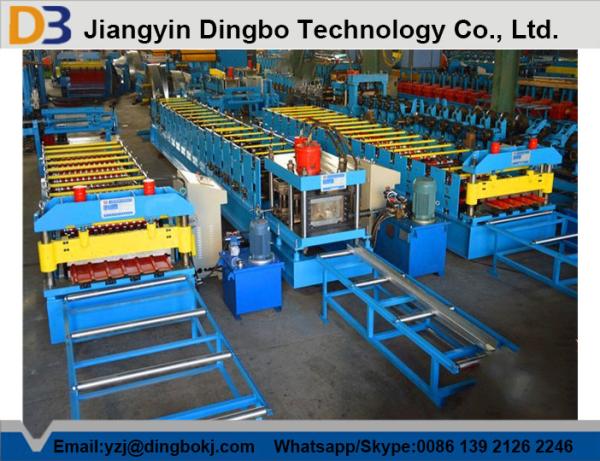

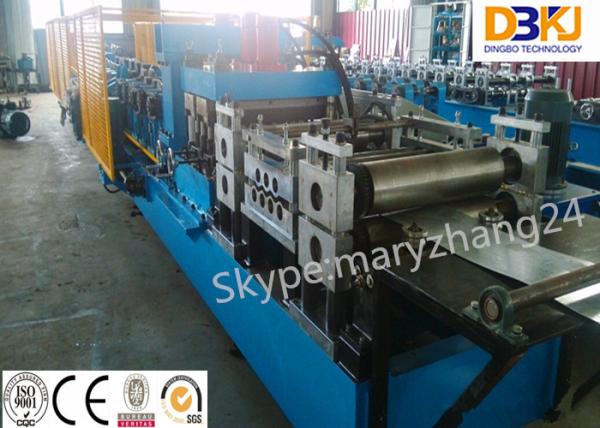

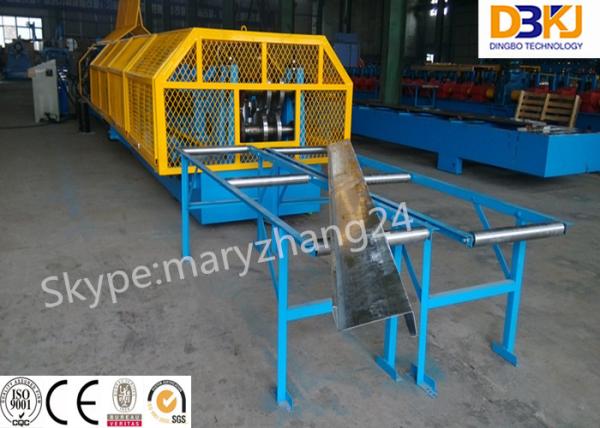

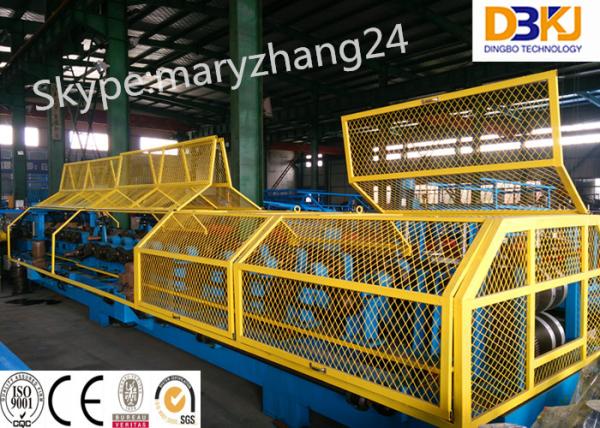

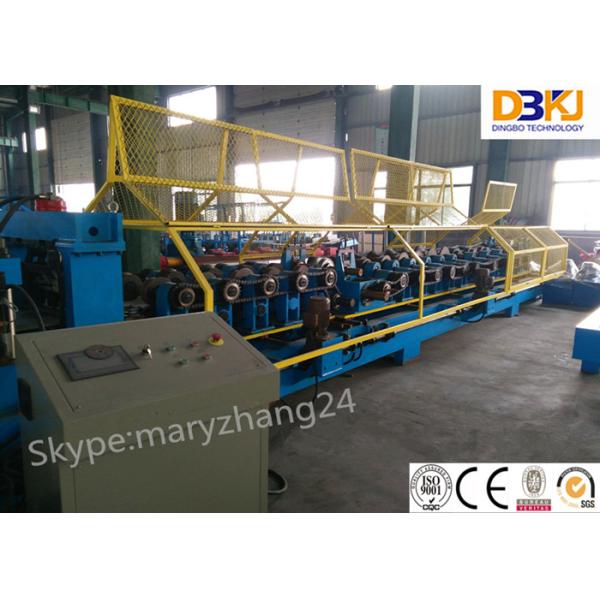

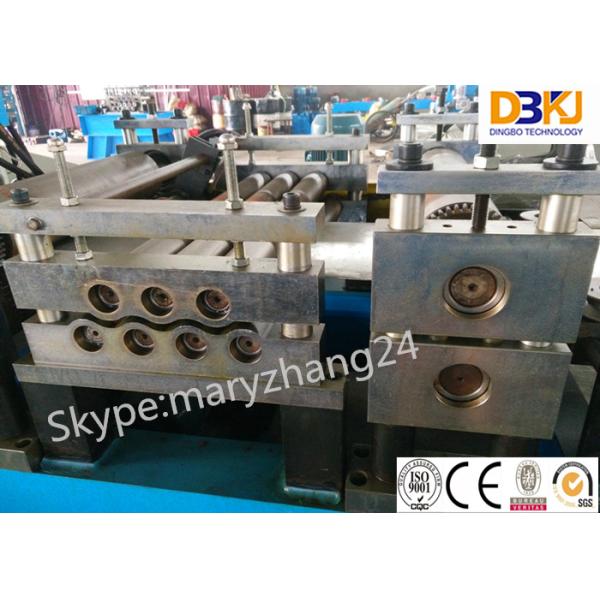

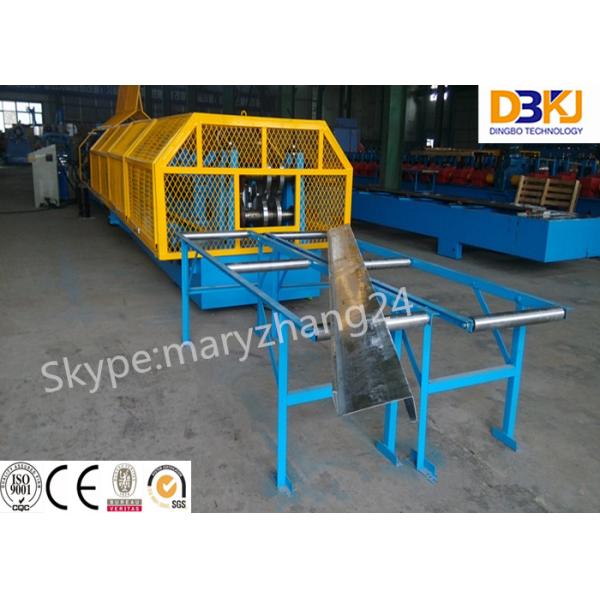

Pictures for reference

Certificate

Exihibition

After sales service:

1).Engineer will give free training lessons to labors in buyer’s factory.

2).The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. 3).The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.

4).During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

5).We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
