Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control
Specifications
Brand Name :
Dingbo
Model Number :
MZ2017031501
Certification :
ISO, CE, SGS, BV
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
USD 16500-95000/ Set
Payment Terms :
L/C, T/T, D/P, D/A, Western Union,
Supply Ability :
10 sets/month
Delivery Time :
55 days after receiving 30% deposit
Packaging Details :
Nude package in 40 GP container
Use :
tray
Condition :
New
Type :
cold roll forming machine
Power(W) :
11+4kw
Name :
cable tray roll forming machine
Voltage :
380V
Material :
steel
OEM :
Yes
Material thickness :
0.8-1.2mm
Control :
PLC control
Description

Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control

Brief introduction of cable tray roll forming machine

Cable tray roll forming machine is used for producing cable tray with different sizes, it uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes’stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height.

Components of cable tray roll forming machine

Automatic inner tight decoiler, a roll former. punching device, hydraulic cutting, PLC control system, hydraulic system, an run-out table

Technical parameters of cable tray roll forming machine

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 300-900mm
3 Rollers 18-22rows
4 Dimensions 10.5*1.6*1.5m
5 Power 11+4kw
6 Thickness of the plate 0.5-1.2mm
7 Productivity 4-6m/min
8 Diameter of the roller 90mm
9 Weight About 8.0 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control

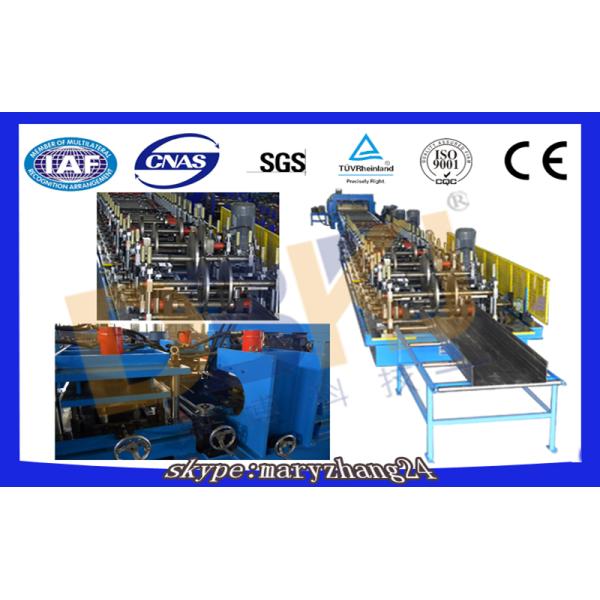

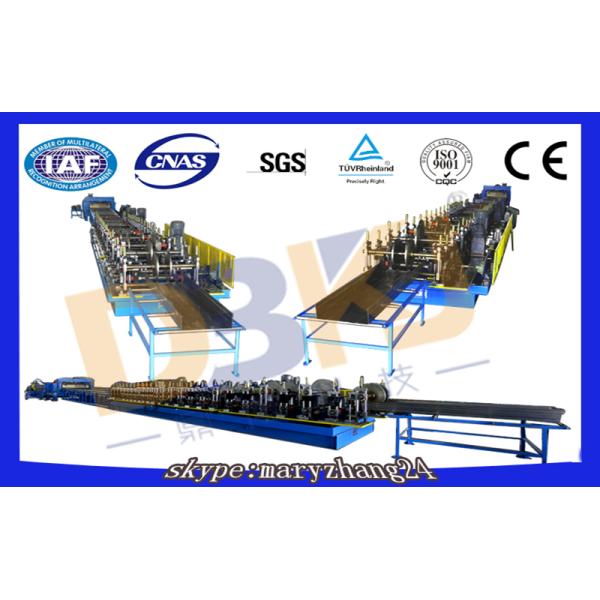

Pictures for reference

Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control

Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control

After sale services

  • Engineer will give free training lessons to labors in buyer’s factory.
  • The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
  • During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
  • We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
