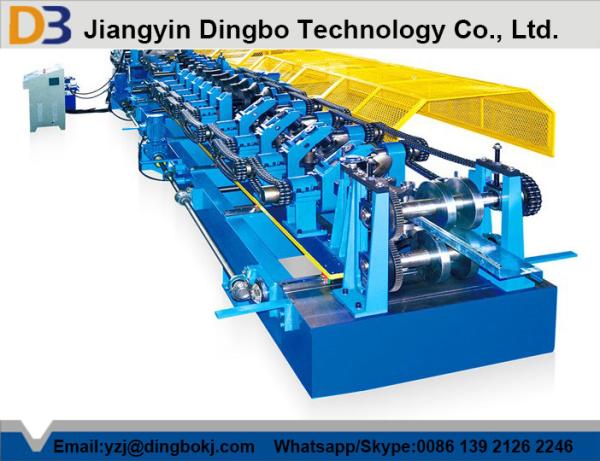

PLC Control System C / Z Purlin Roll Forming Machine With Gcr15 Steel
PLC Control System C / Z Purlin Roll Forming Machine With Gcr15 Steel
PLC Control System C / Z Purlin Roll Forming Machine With Gcr15 Steel
PLC Control System C / Z Purlin Roll Forming Machine With Gcr15 Steel
Specifications
Brand Name :
DB
Model Number :
According to customer
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD20,000-USD40,000
Payment Terms :
TT/LC
Supply Ability :
2sets/month
Delivery Time :
35days
Packaging Details :
Plastic film
Description

PLC Control System C/Z Shape Purlin Roll Former Machine With Gcr15 Steel



Introduction

C section steel features: c-shaped steel is processed by cold bending of hot rolled plate, with light weight, excellent section performance and high strength.

The product surface is clean, the dimension precision is high, and the material is q195-345.

Scope of application: C steel is widely used in steel structure building of purlin, wall beam, can also be combined into itself lightweight roof, bracket and other building components can be used for mechanical column, beam and wall etc in light manufacturing.

Main specification

· Material: G.i Coil or Carbon steel

· Material Thickness:1.5-3.0mm

· Landscape orientation adjustment range of Hole distance : 45-500mm

· Length of purlin: >3m

· Forming Stations: about 17 Main rollers

· Leveling Stations: 7

· Feeding Stations: 2

· Main Power: 20KW

· Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )

· Weight of machine: about 18.5 Ton

Advantage

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

7. First in services
