H1:11m 11kV-33kV Hot Dip Galvanized Steel Electrical Pole – Q235B / Q355B Octagonal Utility Pole for Medium-Voltage Overhead Lines

H2:Product Overview

The 11m steel electrical pole is one of the most searched and widely specified heights across Southeast Asia. From Malaysia’s expanding distribution networks to Indonesia’s rural electrification programs and Philippines’ NEA-standard projects, the 11m pole is the go-to solution for medium-voltage overhead lines.

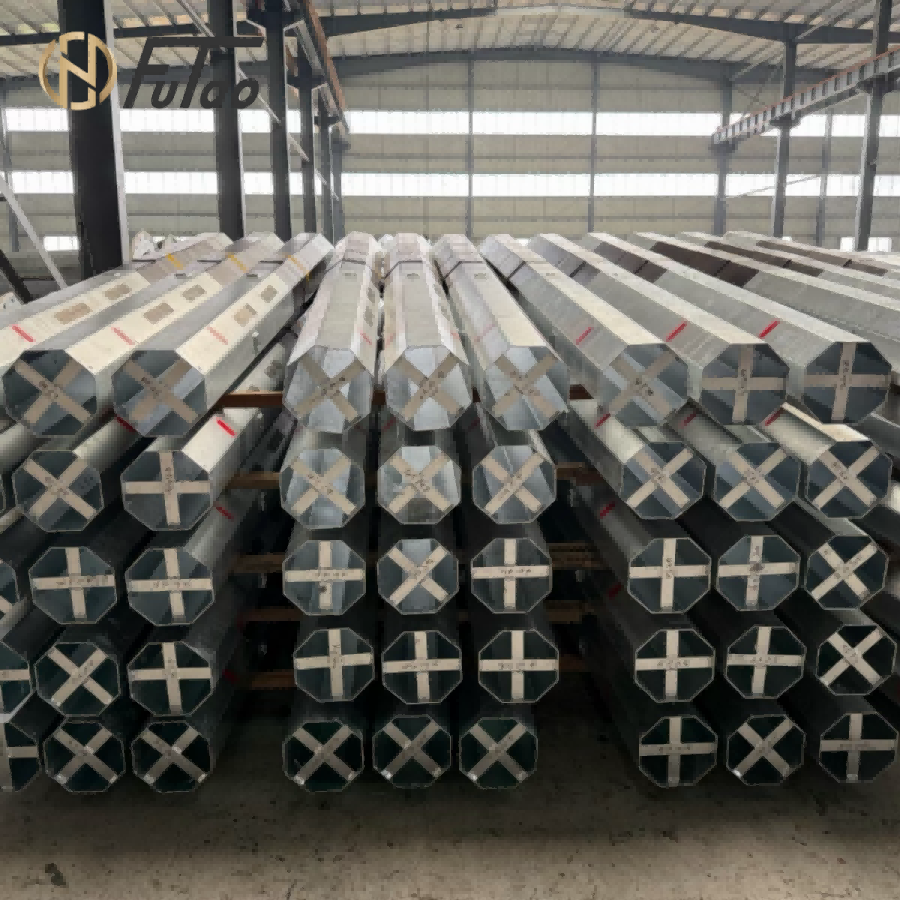

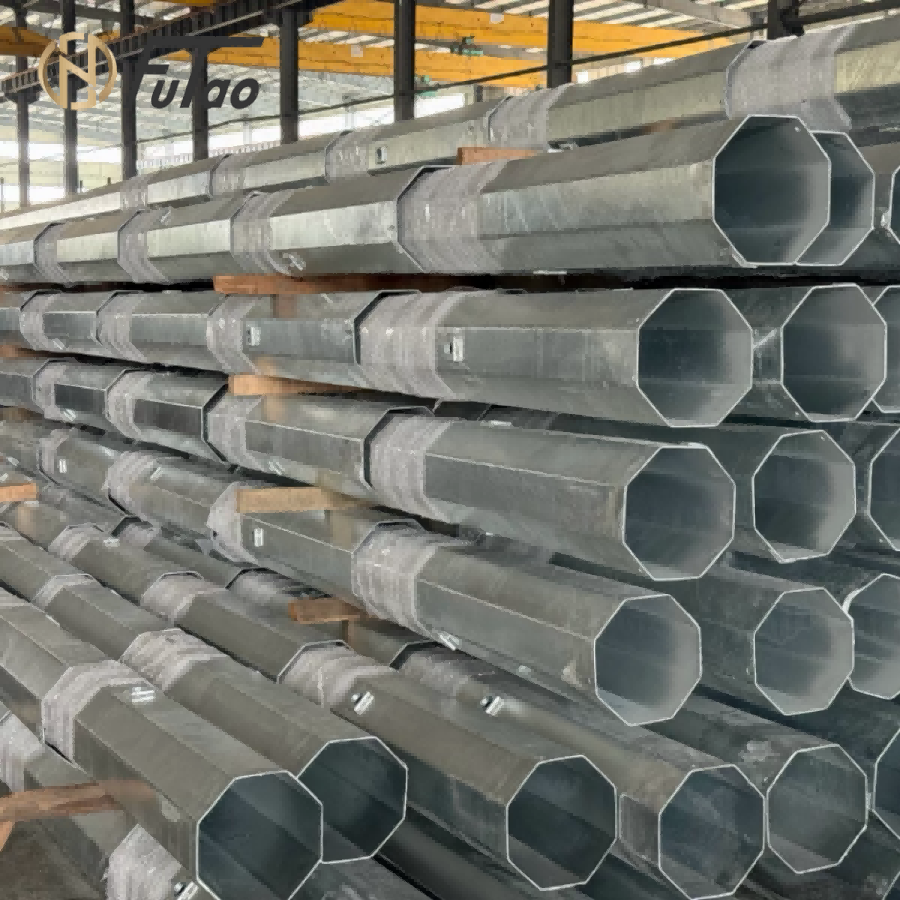

Our 11m hot dip galvanized steel electrical pole is purpose-built for 11kV and 33kV distribution networks. Manufactured from Q235B (standard) or Q355B (upgrade) steel, featuring octagonal tapered design, ISO 1461 hot-dip galvanizing (≥85μm), 160km/h typhoon resistance, and optional two-section design for simplified logistics. This pole delivers the optimal balance of height, strength, and cost-effectiveness for the region’s most demanding distribution projects.

H2:The Problem

• Insufficient pole height for span requirements – 9m poles sometimes cannot achieve required conductor clearances over roads, rivers, and obstructions. 11m provides the extra margin needed for safety and compliance.

• Corrosion in high-humidity environments – Southeast Asia’s tropical climate with annual rainfall exceeding 2,000mm and humidity approaching 100% accelerates steel degradation. Paint and epoxy coatings fail rapidly; substandard galvanizing cannot endure the region’s severe conditions.

• Typhoon-induced failures – Under-designed poles collapse during storms, causing extensive outages and costly repairs.

• Logistical challenges – Longer poles require careful handling and transport planning. Two-section designs solve this problem.

• Inconsistent quality – Without proper quality management systems and third-party verification, pole quality varies widely across suppliers.

H2:The Cause

1. Height limitations of shorter poles – 9m poles may not provide adequate clearance for 33kV lines crossing roads or rivers. 11m is the minimum height specified in many Southeast Asian distribution standards.

2. Inadequate corrosion protection – Many suppliers use galvanizing below 70μm, insufficient for ISO 1461 compliance in tropical environments. Salt spray test endurance under 1,500 hours fails to guarantee long-term protection.

3. Generic wind design – Standard poles designed for 120km/h winds fail in Southeast Asia’s typhoon belt. 160km/h design is essential.

4. Logistics constraints – 11m single-section poles can be challenging to transport in remote areas with narrow roads. Two-section designs with slip joints solve this challenge.

H2:The Solution

✅ Optimal 11m height – Provides superior conductor clearance for 11kV and 33kV lines. Meets or exceeds clearance requirements for road crossings, river spans, and urban installations.

✅ Material flexibility – Q235B (cost-effective, inland applications) or Q355B (high-strength, coastal typhoon zones).

✅ Superior corrosion protection – ISO 1461 hot-dip galvanizing with ≥85μm zinc coating. Salt spray test ≥1,500 hours. 25-30 year service life.

✅ 160km/h typhoon resistance – Engineered for Southeast Asia’s extreme weather. Octagonal shape minimizes wind drag. Safety factor 2.0.

✅ Flexible section design – Available as single-section or two-section with slip joint/flange connection for easy transport and on-site assembly.

✅ Certified Quality – Our factory holds ISO 9001 certification. Products are manufactured to international standards and can be verified by third-party laboratories (SGS, BV) on request. Welding meets AWS D1.1 requirements.

H2:Specifications

H2:Application
